System Diagram

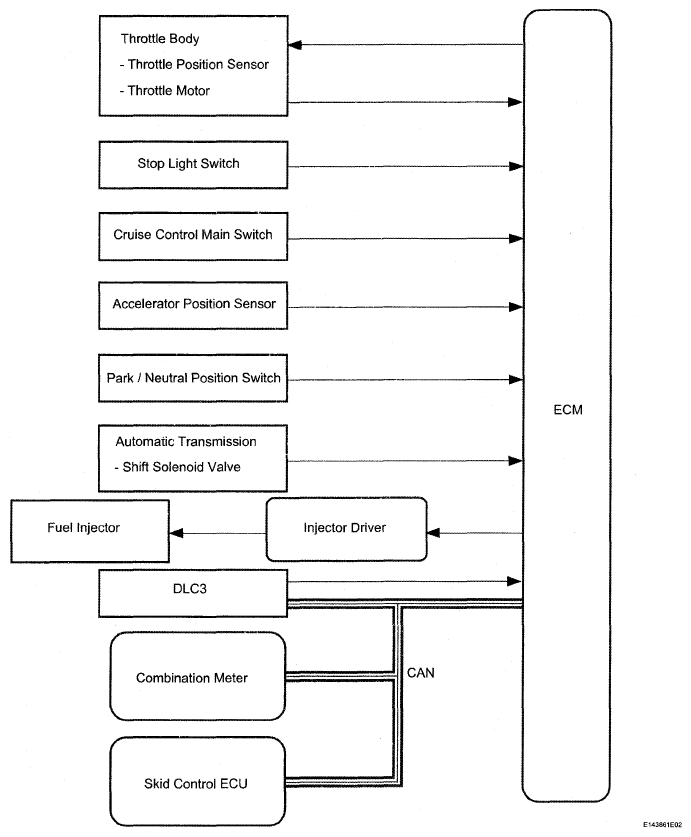

Fig 1: Cruise Control System Diagram
G04951375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication table

COMMUNICATION REFERENCE

Sender ECU Receiver ECU Signal Line
Combination meter ECM CRUISE main indicator light signal CAN
Skid control ECU ECM Vehicle speed signal CAN
