Navigation Antenna: Components

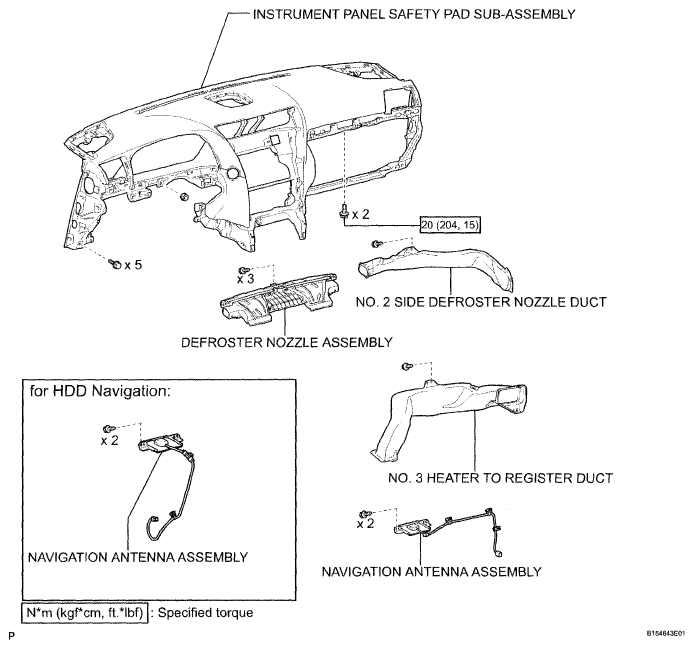

Fig 1: Navigation Antenna Replacement Components With Torque Specifications
G04945711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
