Door Control Switch: Inspection

  1. INSPECT DOOR CONTROL SWITCH ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.

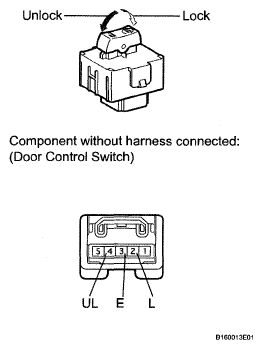

      Fig 1: Inspecting Door Control Switch Resistance
      G04951727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      DOOR CONTROL SWITCH ASSEMBLY

      Tester Connection Switch Condition Specified Condition
      2 (L)-3(E) Lock Below 1 Ω
      2 (L)-3(E) 4(UL)-3(E) OFF 10 kΩ or higher
      4 (UL)-3(E) Unlock Below 1 Ω

      If the result is not as specified, replace the control switch.

    2. When terminal 5 (ILL+) of the connector is connected to the positive (+) battery terminal and terminal 3 (E) is connected to the negative (-) battery terminal, check that the indicator (LED) illuminates.

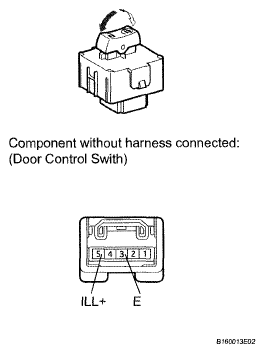

      Fig 2: Identifying Door Control Switch Indicator (LED) Illuminates
      G04951728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
