Rear Door Lock: Components

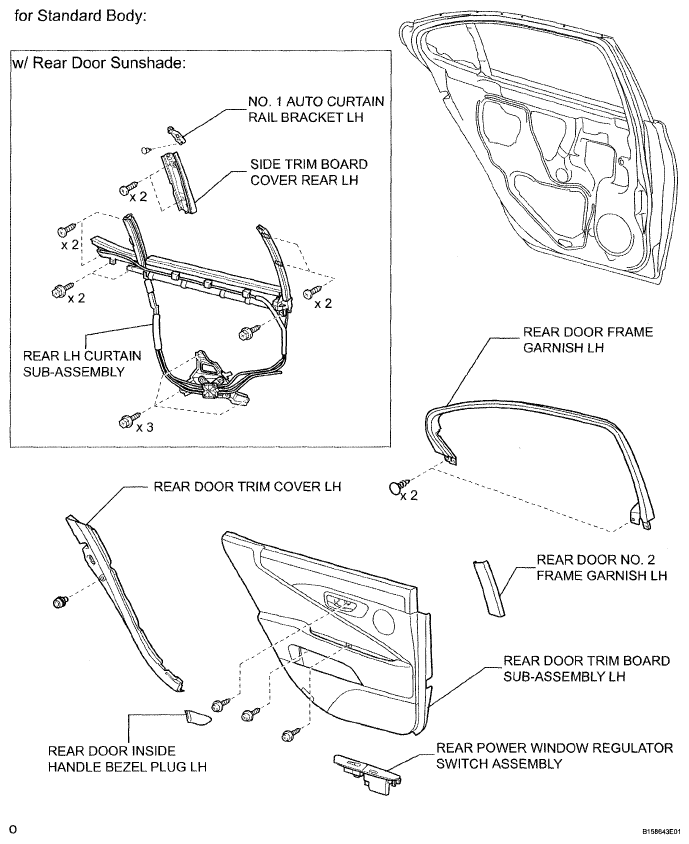

Fig 1: Identifying Rear Door Lock Components (1 Of 4)
G04951739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

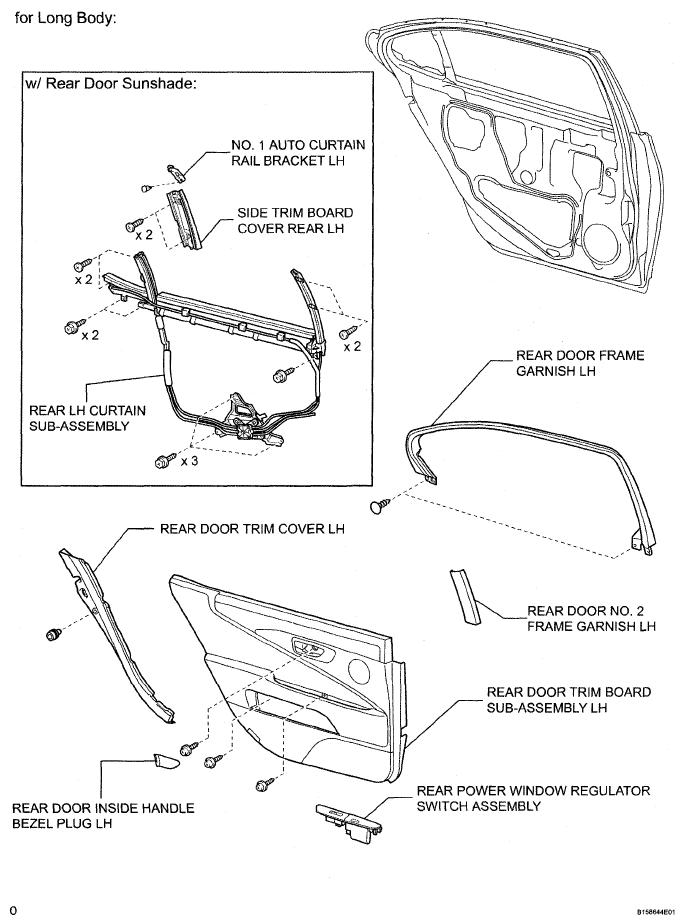

Fig 2: Identifying Rear Door Lock Components (2 Of 4)
G04951740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

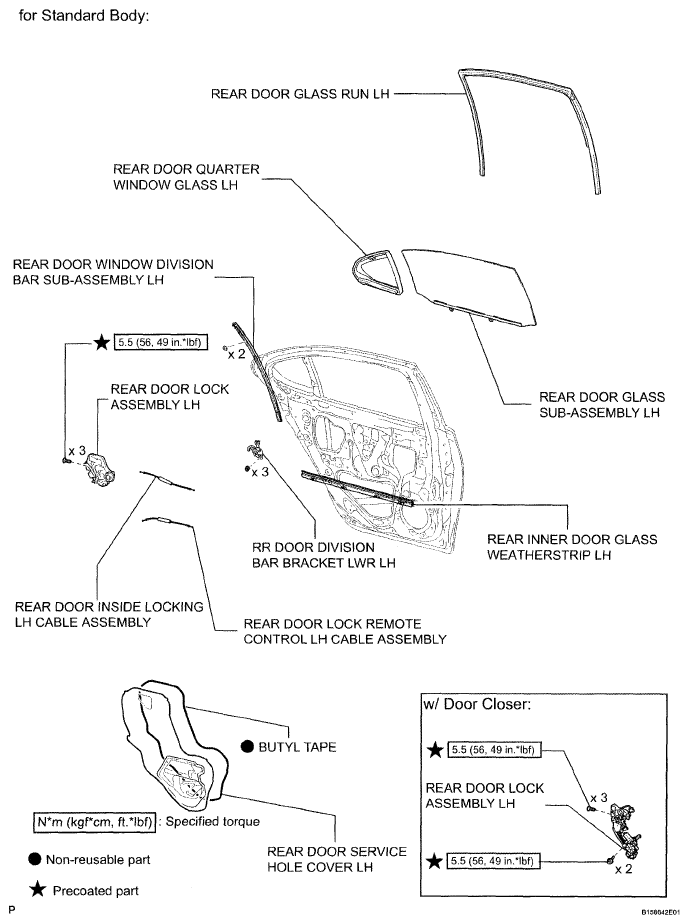

Fig 3: Rear Door Lock Replacement Components With Torque Specifications (3 Of 4)
G04951741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

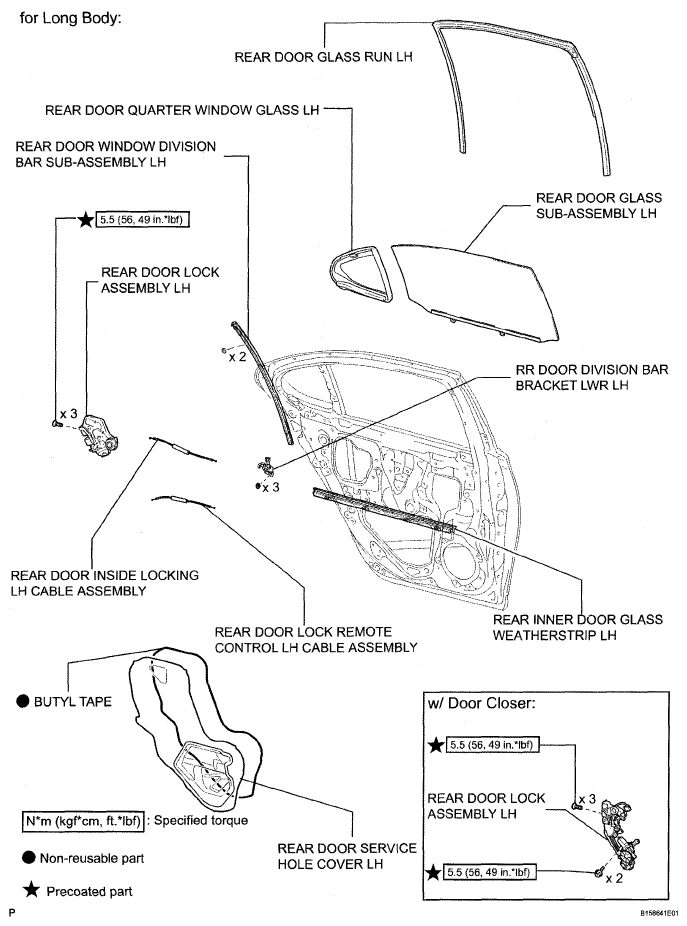

Fig 4: Rear Door Lock Replacement Components With Torque Specifications (4 Of 4)
G04951742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
