Inspection Procedure

1. When the master switch assembly's door control switch is operated, check that the locked doors unlock.

   Result

   POWER DOOR LOCK OPERATION



   Result	Proceed to
   Door locks operate normally	OK
   Door locks do not operate normally	NG

NG: GO TO POWER DOOR LOCK CONTROL SYSTEM (See  POWER DOOR LOCK CONTROL SYSTEM   )

OK: GO TO NEXT STEP

1. Using the intelligent tester or Techstream, read the Data List.
   1. Intelligent tester

      D-DOOR (Front door ECU LH)

      INTELLIGENT TESTER - D-DOOR (FRONT DOOR ECU LH)



      Tester Display	Measurement Item/Display	Normal Condition	Diagnostic Note
      TRIGGER SW	Driver side door outside handle lock switch / ON or OFF	ON: Driver side door outside handle lock switch is pushed OFF: Driver side door outside handle lock switch is not pushed	-

   2. Techstream

      Driver Door (Front door ECU LH)

      TECHSTREAM - DRIVER DOOR (FRONT DOOR ECU LH)



      Tester Display	Measurement Item/Display	Normal Condition	Diagnostic Note
      Outside Handle Trigger SW	Driver side door outside handle lock switch / ON or OFF	ON: Driver side door outside handle lock switch is pushed OFF: Driver side door outside handle lock switch is not pushed	-

      OK: On tester screen, item changes between ON and OFF according to above chart.

NG: Go to step   4

OK: GO TO NEXT STEP

1. Replace the front door ECU LH with a new one or normally functioning one (see INSTALLATION ).
2. Check that the entry function operates normally.

   OK: Operates normally

NG: REPLACE CERTIFICATION ECU

OK: END (FRONT DOOR ECU LH IS DEFECTIVE)

1. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   FRONT DOOR OUTSIDE HANDLE LH



   Tester Connection	Switch Condition	Specified Condition
   b2-3 (TRG+) - b2-1 (TRG-)	ON	Below 1 Ω
   b2-3 (TRG+) - b2-1 (TRG-)	OFF	10 kΩ or higher

   Fig 1: Identifying Front Door Outside Handle Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE FRONT DOOR OUTSIDE HANDLE LH  (See INSTALLATION )

OK: GO TO NEXT STEP

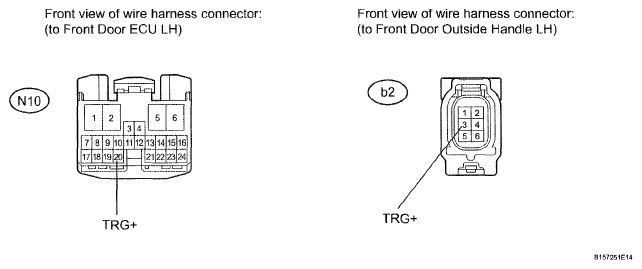

Fig 2: Identifying B2 Front Door Outside Handle - N10 Front Door ECU Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the b2 handle connector.
2. Disconnect the N10 ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   FRONT DOOR OUTSIDE HANDLE LH - FRONT DOOR ECU LH



   Tester Connection	Condition	Specified Condition
   b2-3 (TRG+)-N10-20 (TRG+)	Always	Below 1 Ω
   b2-3 (TRG+) - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO NEXT STEP

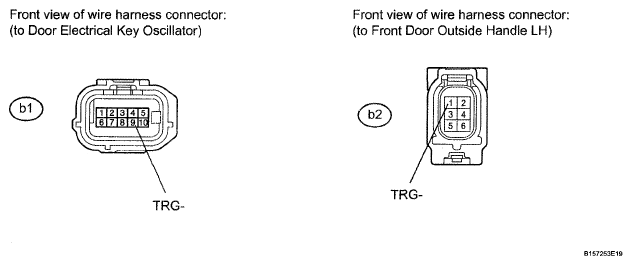

Fig 3: Identifying B2 Front Door Outside Handle - B1 Door Electrical Key Oscillator Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the b2 handle connector.
2. Disconnect the b1 oscillator connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   FRONT DOOR OUTSIDE HANDLE LH - DOOR ELECTRICAL KEY OSCILLATOR



   Tester Connection	Condition	Specified Condition
   b2-1 (TRG-)-b1-9(TRG-)	Always	Below 1 Ω
   b2-1 (TRG-) - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO NEXT STEP

1. Replace the door electrical key oscillator with a new one or normally functioning one (see INSTALLATION ).
2. Check that the entry function operates normally.

   OK: Operates normally

NG: Go to step 8

OK: END (DOOR ELECTRICAL OSCILLATOR IS DEFECTIVE)

1. Replace the front door ECU LH with a new one or normally functioning one (see INSTALLATION ).
2. Check that the entry function operates normally.

   OK: Operates normally

NG: REPLACE CERTIFICATION ECU

OK: END (FRONT DOOR ECU LH IS DEFECTIVE)
