Inspection Procedure

1. When the multiplex network master switch assembly's door control switch is operated, check that the locked doors unlock.

   Result

   POWER DOOR LOCK OPERATION



   Result	Proceed to
   Door locks operate normally	OK
   Door locks do not operate normally	NG

NG: GO TO POWER DOOR LOCK CONTROL SYSTEM (See  POWER DOOR LOCK CONTROL SYSTEM   )

OK: GO TO NEXT STEP

1. Using the intelligent tester or Techstream, read the Data List.
   1. Intelligent tester

      RL-DOOR (Rear door ECU LH)

      INTELLIGENT TESTER - RL-DOOR (REAR DOOR ECU LH)



      Tester Display	Measurement Item/Display	Normal Condition	Diagnostic Note
      TRIGGER SW	Rear LH side door outside handle lock switch / ON or OFF	ON: Rear LH side door outside handle lock switch is pushed OFF: Rear LH side door outside handle lock switch is not pushed	-

   2. Techstream

      Rear Left Door (Rear door ECU LH)

      TECHSTREAM - REAR LEFT DOOR (REAR DOOR ECU LH)



      Tester Display	Measurement Item/Display	Normal Condition	Diagnostic Note
      Outside Handle Trigger SW	Rear LH side door outside handle lock switch / ON or OFF	ON: Rear LH side door outside handle lock switch is pushed OFF: Rear LH side door outside handle lock switch is not pushed	-

      OK: On tester screen, item changes between ON and OFF according to above chart.

NG: Go to step   4

OK: GO TO NEXT STEP

1. Replace the rear door ECU LH with a new one or normally functioning one (see REAR DOOR ).
2. Check that the entry function operates normally.

   OK: Operates normally

NG: REPLACE CERTIFICATION ECU

OK: END (REAR DOOR ECU LH IS DEFECTIVE)

Fig 1: Identifying d1 Rear Door Outside Handle Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   REAR DOOR OUTSIDE HANDLE LH



   Tester Connection	Switch Condition	Specified Condition
   d1-1 (TRG-)-d1-3 (TRG+)	ON	Below 1 Ω
   d1-1 (TRG-)-d1-3 (TRG+)	OFF	10 kΩ or higher

NG: REPLACE REAR DOOR OUTSIDE HANDLE LH  (See REAR DOOR )

OK: GO TO NEXT STEP

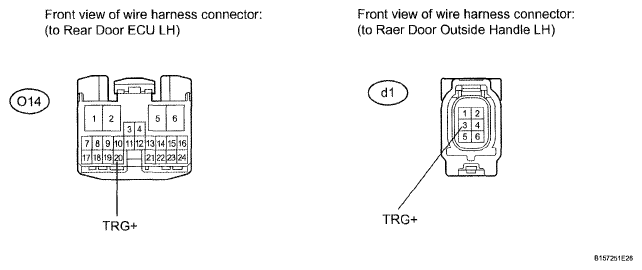

Fig 2: Identifying O14 Rear Door Outside Handle - d1 Rear Door ECU Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the d1 handle connector.
2. Disconnect the O14 ECU connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   REAR DOOR OUTSIDE HANDLE LH - REAR DOOR ECU LH



   Tester Connection	Condition	Specified Condition
   d1-3 (TRG+)- O14-20 (TRG+)	Always	Below 1 Ω
   d1-3 (TRG+)-Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO NEXT STEP

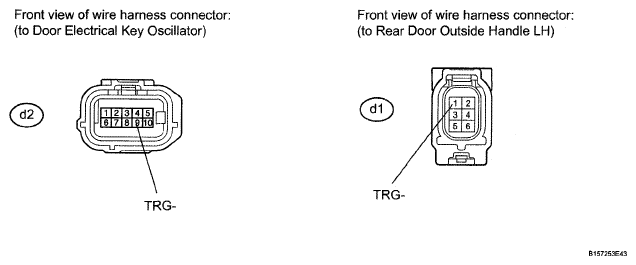

Fig 3: Identifying d1 Rear Door Outside Handle And Door d2 Electrical Key Oscillator Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the d1 handle connector.
2. Disconnect the d2 oscillator connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   REAR DOOR OUTSIDE HANDLE LH - DOOR ELECTRICAL KEY OSCILLATOR



   Tester Connection	Condition	Specified Condition
   d1-1 (TRG-)-d2-9(TRG-)	Always	Below 1 Ω
   d1-1 (TRG-)-Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO NEXT STEP

1. Replace the door electrical key oscillator with a new one or normally functioning one (see REAR DOOR ).
2. Check that the entry function operates normally.

   OK: Operates normally

NG: Go to step 8

OK: GO TO NEXT STEP

1. Replace the rear door ECU LH with a new one or normally functioning one (see REAR DOOR ).
2. Check that the entry function operates normally.

   OK: Operates normally

NG: REPLACE CERTIFICATION ECU

OK: END (REAR DOOR ECU LH IS DEFECTIVE)
