Inspection Procedure

1. When the master switch assembly's door control switch is operated, check that the locked doors unlock.

   Result

   POWER DOOR LOCK OPERATION



   Result	Proceed to
   Door locks operate normally	OK
   Door locks do not operate normally	NG

NG: GO TO POWER DOOR LOCK CONTROL SYSTEM (See  POWER DOOR LOCK CONTROL SYSTEM   )

OK: GO TO NEXT STEP

1. Using the intelligent tester or Techstream, read the Data List.
   1. Intelligent tester

      RR-Door (Rear door ECU RH)

      INTELLIGENT TESTER - RR-DOOR (REAR DOOR ECU RH)



      Tester Display	Measurement Item/Display	Normal Condition	Diagnostic Note
      ENTRY SENSOR	Rear RH side door touch sensor / ON or OFF	ON: Rear RH side door sensor is touched OFF: Rear RH side door sensor is not touched	-

   2. Techstream

      Rear Right Door (Rear door ECU RH)

      TECHSTREAM - REAR RIGHT DOOR (REAR DOOR ECU RH)



      Tester Display	Measurement Item/Display	Normal Condition	Diagnostic Note
      Entry Sensor	Rear RH side door touch sensor / ON or OFF	ON: Rear RH side door sensor is touched OFF: Rear RH side door sensor is not touched	-

      OK: On tester screen, item changes between ON and OFF according to above chart.

NG: Go to step   4

OK: GO TO NEXT STEP

1. Replace the rear door ECU RH with a new one or normally functioning one (see REAR DOOR ).
2. Check that the entry function operates normally.

   OK: Operates normally

NG: REPLACE CERTIFICATION ECU

OK: END (REAR DOOR ECU RH IS DEFECTIVE)

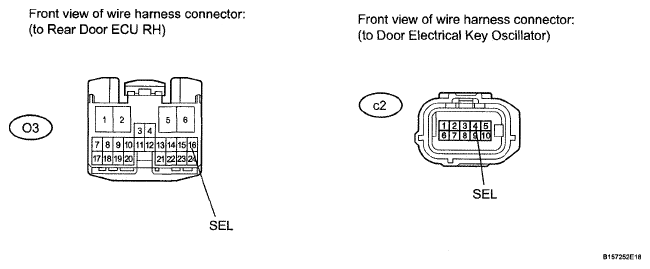

Fig 1: Identifying O3 Rear Door ECU Connector And c2 Door Electrical Key Oscillator Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the O3 ECU connector.
2. Disconnect the c2 oscillator connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   DOOR ELECTRICAL KEY OSCILLATOR - REAR DOOR ECU RH



   Tester Connection	Condition	Specified Condition
   O3-16(SEL)-c2-4(SEL)	Always	Below 1 Ω
   O3-16 (SEL) -Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO NEXT STEP

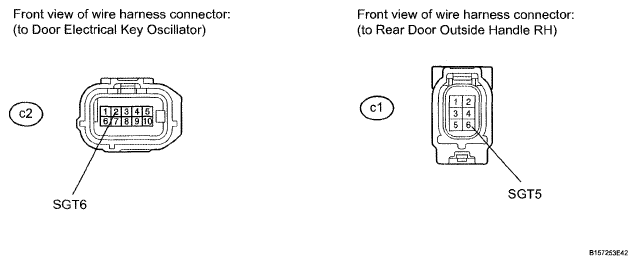

Fig 2: Identifying c2 Door Electrical Key Oscillator Connector And c1 Rear Door Outside Handle Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the c2 oscillator connector.
2. Disconnect the c1 handle connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   DOOR ELECTRICAL KEY OSCILLATOR - REAR DOOR OUTSIDE HANDLE RH



   Tester Connection	Condition	Specified Condition
   c2-2 (SGT6)-c1-6 (SGT5)	Always	Below 1 Ω
   c2-2 (SGT6) - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO NEXT STEP

1. Replace the door electrical key oscillator with a new one or normally functioning one (see REAR DOOR ).
2. Check that the entry function operates normally.

   OK: Operates normally

NG: Go to step 7

OK: END (DOOR ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

1. Replace the rear door outside handle RH with a new one or normally functioning one (see REMOVAL  ).
2. Check that the entry function operates normally.

   OK: Operates normally

NG: Go to step 8

OK: END (REAR DOOR OUTSIDE HANDLE RH IS DEFECTIVE)

1. Replace the rear door ECU RH with a new one or normally functioning one (see REAR DOOR )
2. Check that the entry function operates normally.

   OK: Operates normally

NG: REPLACE CERTIFICATION ECU

OK: END (REAR DOOR ECU RH IS DEFECTIVE)
