Room Oscillator does not Recognize Key: Wiring Diagram

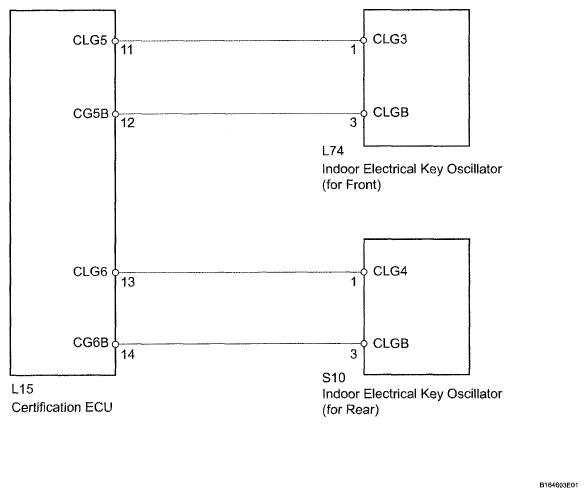

Fig 1: Indoor Electrical Key Oscillator - Wiring Diagram
G04951694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
