System Description

1. In addition to conventional mechanical key and wireless door lock control functions, the smart access system with push-button start enables door locking/unlocking, steering lock releasing, engine starting and luggage compartment door opening without operating the key. The only requirement is that the key is in the user's possession.
   • This system is controlled by the certification ECU. When the certification ECU detects the presence of the key in one of the detection areas, it identifies and checks the ID code, and outputs operation signals to the related ECU in accordance with their functions.
   • The detection areas are formed by 7 oscillators and 1 antenna (4 door oscillators, 1 luggage compartment antenna, 1 luggage compartment oscillator, and 2 indoor oscillators).

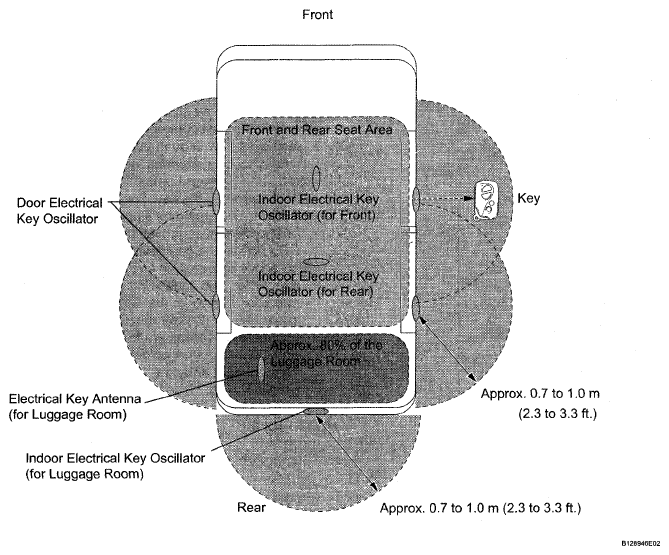

Fig 1: Identifying Detection Area

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Precautions for the entire system:
   • Be sure to carry the key during inspection of the smart access system with push-button start.
   • As weak radio waves are used to detect the key, the key detection area may decrease, or the key may not be detected correctly in the following situations:
     1. The key battery is depleted.
     2. Any facilities that generate strong radio waves, such as a TV tower, power plant, portable media players, broadcast station or gas station, are located near the inspection site.
     3. A wireless device, such as a cellular phone, is carried with the key.
     4. The key is in contact with or covered with metal.
     5. Another wireless door lock control function is operated near the vehicle.
     6. The key is located near a device that generates high voltage or noise.
   • The key may be difficult to operate for a reason relating to the vehicle body shape.
   • The key may not be detected correctly if it is around the vehicle's windows, the door handle or center of the bumper, even when it is in the detection area outside the vehicle.
   • The key may not be detected correctly if it is on the instrument panel, rear package tray or floor, or in the glove box, even when it is in the detection area inside the vehicle.
   • The engine cannot be started even when the key is in the detection area inside the luggage compartment.
   • The key may not operate if the key is not held properly.
   • The smart access system with push-button start does not operate in the following conditions:
     1. The smart access system with push-button start is canceled.
     2. The key battery is completely depleted (the indicator does not blink when pushing any of the buttons on the key).

1. Key:

   The key consists of a mechanical key, a transmitter function for the wireless door lock control and a transceiver for the smart access system with pushbutton start.

   • The transceiver function for the smart access system with push-button start receives the signals from the oscillators and sends the ID code to the door control receiver.
   • The transmitter function for the wireless door lock control has a LOCK switch, UNLOCK switch, LUGGAGE COMPARTMENT switch and PANIC switch.
   • This mechanical key works for the driver door, luggage compartment door and glove box, but cannot start the engine.

   A total of 7 keys can be registered.

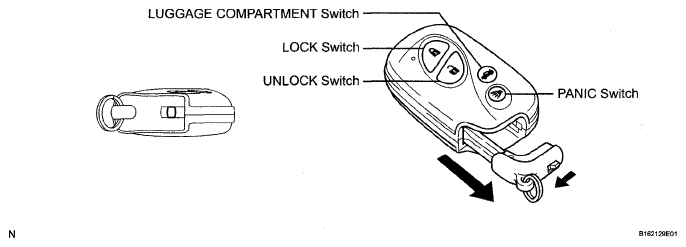

   Fig 2: Identifying Construction And Operation Of Key

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Oscillator (each door oscillator, front and rear indoor oscillator, luggage compartment oscillator, luggage compartment antenna)

   Each oscillator transmits the request signal received from the certification ECU, and forms a key detection area to detect the presence of a key. The detection area formed by each door oscillator and luggage compartment outer antenna is approximately 0.7 to 1.0 m (2.3 to 3.3 ft.) from the outside handle of each door or the center of the rear bumper.

   • The detection area of each door oscillator is formed by transmitting a request signal every 0.25 seconds while the engine switch is off and each door is locked. In this way, it detects the proximity of a key. During entry lock, the detection area is formed with the lock switch ON.
   • The detection area of the luggage compartment antenna is formed when the luggage door opener switch is ON.
   • The detection area of the indoor oscillator (for front and rear) is formed when the driver door is opened or closed, during start ignition, when a warning is activated, or when the lock switch is ON.
   • The detection area of the luggage compartment oscillator is formed when the luggage compartment door is closed or the luggage compartment door opener switch is pressed.

1. The smart access system with push-button start has the following functions.
   ENTRY FUNCTION OPERATION



   Function	Outline
   Mechanical Key	Operation is same as conventional mechanical key.
   Wireless Door Lock Control	This function remotely locks and unlocks all doors or luggage compartment. Operation is same as wireless door lock control system. However, the receiver in certification ECU uses entry door control receiver to control locking and unlocking.
   Entry Illumination	When person carrying key enters detection area, door will enter unlock standby mode and map light and door mirror foot light will illuminate.
   Entry Unlock	When key is located in detection area of door oscillator, door will unlock by touching inside of outside door handle.
   Entry Unlock Mode Switching (see CUSTOMIZE PARAMETERS  )	Changes doors that can be unlocked with entry unlock function between 4 modes. Driver door unlock mode Doors on one side unlock mode One door unlock mode All door unlock mode
   Entry Lock	When key is located in detection area of door oscillator and engine switch is off, door can be locked by pressing lock switch on outside door handle.
   Entry Luggage Compartment Open	When key is in detection area of luggage compartment antenna, luggage compartment door opens by pressing luggage compartment door opener switch.
   Memory Call	This function operates driving position memory system in accordance with key ID code.
   Entry Power Window Function	Pressing door handle entry lock switch for approx. 3 seconds or more causes all power windows and sliding roof to close while sounding wireless buzzer.
   Key Lock-in Prevention	Prevents lock-in of key if door is locked using outside door handle while key is still inside vehicle. If all doors locked and luggage compartment door is closed while key is still in luggage compartment, warning buzzer sounds. If luggage compartment door opener switch is operated, luggage compartment door can be opened.
   Warning	When any of situations below occur, smart access system with pushbutton start causes certification ECU to sound buzzer in combination meter and wireless door lock buzzer, and display information in order to alert driver. Shift lever not on P (power source cut reminder) vehicle exit warning Key reminder warning Shift lever on P (power source cut reminder) vehicle exit warning Entry door ajar warning Passenger has brought key out of vehicle warning Key is not within detection area warning Key lock-in prevention function buzzer (for cabin) Key lock-in prevention function buzzer (for luggage compartment) Key battery low warning
   Battery Saving	If key is constantly located within actuation area of door oscillator, system maintains periodic communication with key. Therefore, if vehicle remains parked in that state for long time, key battery and vehicle battery could be drained. For this reason, vehicle has controls for saving battery power.
   Key Cancel (see CUSTOMIZE PARAMETERS  )	Following key functions can be canceled. Entry Unlock/Lock Entry Ignition Memory Call Entry Luggage Compartment Open Key Lock-in Prevention Warning

Push the LOCK/UNLOCK/PANIC/LUGGAGE COMPARTMENT switch on the key to operate each function.

1. The detection area is formed by communication between a door oscillator and the certification ECU when the door is locked in order to detect the person carrying the key.
2. When the person carrying the key enters the detection area around the vehicle, the matching of the ID codes for a door oscillator and key will automatically be performed. After the matching is completed, the door will enter unlock standby mode.
3. In unlock standby mode, the antenna built into the outside handle starts sensing. If the outside handle is held (the back side of the handle is touched), the door unlock operation will be performed. At this time, the hazard warning light blinks twice and the wireless door lock buzzer sounds twice.
4. If any of the doors are not opened after a door unlock operation, all doors will automatically lock after 60 seconds.

1. After leaving the vehicle carrying the key, push the lock switch on the outside handle when all the doors are closed.
2. The certification ECU determines whether the key is located inside or outside of the cabin based on the information from a door oscillator and indoor oscillator. Then matching of the ID codes is performed.
3. When the matching result shows that the ID codes of the key and indoor oscillator do not match and the ID codes of the key and door oscillator match, the door lock function will operate. At this time, the hazard warning lights blink once and the wireless door lock buzzer sounds once.
4. If the key is located inside of the cabin, the door lock function will not operate and the alarm buzzer (beep sound) will sound for 2 seconds.

Stand in front of the luggage compartment with the key and push the luggage door opener switch to start the matching of the ID codes for the luggage compartment antenna. If the ID codes match, luggage compartment door open operation will be performed.

1. If you attempt to lock the door through keyless operation (move the lock knob to the lock position and then close the door) with the key in the cabin, the system determines that the key is located in the cabin and unlocks the door.
2. If the luggage compartment is closed with the key in it, the alarm will sound and the luggage compartment can be opened only when all the doors are locked in order to prevent key lock-in in the vehicle.

In order to improve ease of entering and exiting the vehicle at night, the map light and door mirror foot area light illuminate when the key is brought near the vehicle.

• Control Information:

  Holding the key and bringing it within the vehicle exterior detection area causes the door to enter unlock standby. At this time, the map light and door mirror foot light illuminate.

• Precaution:

  The entry illumination function operates when the key is outside the vehicle exterior detection area for 3 seconds or more, and is then brought within the vehicle exterior detection area. If the key is not first brought outside the vehicle exterior detection area, the entry illumination function will not operate.

1. After locking all the doors through the wireless lock operation or entry lock operation, pressing the door handle lock switch for 3 seconds or more operates the door window close operation of all of the windows and the sliding roof close operation.
2. If the entry power window function is operating and the door handle lock switch is released, the entry power window operation will stop.
3. The wireless buzzer sounds while the entry power window function is operating.

   HINT:

   For more information about the entry power window function, refer to the power window control system.

After unlocking the driver door using the key ID and opening the driver door, the seat automatically moves to the position associated with the key ID.

HINT:

• For more information about the memory call function, refer to the front power seat control system.
• Key ID registration method:
  1. With the engine switch off and the driver door closed, press and hold the seat memory switch to be registered. (Releasing the seat memory switch will end the key ID registration mode.)
  2. Press the lock or unlock switch of the key to be registered.
  3. If the key has not been registered previously, the key ID will be registered. During the registration, the wireless buzzer will sound.
• Memory call cancel method:
  1. With the engine switch off, press and hold the SET switch. (Releasing the SET switch will end the memory call cancel mode.)
  2. Press the lock or unlock switch of the key to be canceled.
  3. If the key has been registered previously, the memory call operation of the key ID will be canceled. The key ID can be reactivated by pressing the lock or unlock switch of the key again. During the memory call cancel and reactivation operation, the wireless buzzer will sound.

1. General:

   When any of the situations below occur, the smart access system with push-button start responds to alert the driver.

   WARNING FUNCTION OPERATION CONDITION - GENERAL



   Warning Function Operation Condition	Situation
   Shift lever not on P (power source cut reminder) vehicle exit warning	A
   Key reminder warning	B
   Shift lever on P (power source cut reminder) vehicle exit warning	C
   Entry door ajar warning	D
   Passenger has brought key out of vehicle warning	E
   Key is not within detection area warning	F
   Key lock-in prevention function buzzer (for cabin)	G
   Key lock-in prevention function buzzer (for luggage compartment)	H
   Key battery low warning	I

2. Situation A:

   Shift lever not on P (power source cut reminder) vehicle exit warning

   1. With shift lever in position other than P, door is opened and vehicle exit (while holding key) is attempted
      WARNING FUNCTION OPERATION CONDITION - SITUATION A (1 OF 2)



      Reason for warning: Sudden vehicle start prevention, vehicle theft prevention, vehicle roll-away prevention
      Warning start condition: Shift lever position is not P, engine switch is on (ACC or IG), driver side door is opened and vehicle speed is 0 km/h (0 mph)
      Warning stop condition: Engine switch is on (ACC or IG), shift lever position is P, vehicle speed is above 0 km/h (0 mph), or driver side door is closed
      Warning description	Combination meter buzzer	Multi-buzzer	Sounds continuously (beep)
      	Combination meter display	Combination meter information	"Shift to P Range"
      	Wireless buzzer	Sounds for 3 seconds (long beep)
      Recommended user action		Move shift lever to P position

   2. With shift lever in position other than P, door is opened, key is brought out of vehicle, door is closed, and movement away from vehicle is attempted
      WARNING FUNCTION OPERATION CONDITION - SITUATION A (2 OF 2)



      Reason for warning: Sudden vehicle start prevention, vehicle theft prevention, vehicle roll-away prevention
      Warning start condition: Shift lever position is not P, engine switch is on (ACC or IG), opened driver side door is closed, vehicle speed is 0 km/ h (0 mph) and key is not in detected in vehicle interior and luggage interior
      Warning stop condition: Key is detected in vehicle interior and luggage interior: Buzzer stops and "Shift to P Range" is displayed on combination meter Vehicle speed is above 0 km/h (0 mph): Buzzer stops, "Key is not detected" - "Check key position" is displayed on combination meter Engine switch on (ACC) or off: All warnings are turned off
      Warning description	Combination meter buzzer	Multi-buzzer	Sounds continuously (beep)
      	Combination meter display	Combination meter information	Information below is displayed alternately on combination meter "Shift to P Range" "Key is not detected" - "Check key position"
      	Wireless buzzer	Sounds continuously (beep)
      Recommended user action		Move shift lever to P position

3. Situation B:

   Key reminder warning

   1. Steering lock / unlock set, driver door is opened and movement away from vehicle is attempted
      WARNING FUNCTION OPERATION CONDITION - SITUATION B



      Reason for warning: Vehicle theft prevention, required by law
      Precondition: Remote start is not operating
      Warning start condition: One of following conditions is met Engine switch on (ACC) or off, and driver door opened Engine switch on (ACC) or off, steering lock / unlock set and driver door opened
      Warning stop condition: One of following conditions is met Engine switch is on (IG) or driver door is closed Engine switch on (ACC) or off, and steering lock / unlock is set
      Warning description	Combination meter buzzer	Multi-buzzer	Sounds intermittently (several "pon" sounds)
      	Combination meter display	Combination meter information	None
      	Wireless buzzer	None
      Recommended user action		If engine switch is on (ACC or IG), turn engine switch off and close driver door

4. Situation C:

   Shift lever on P (power source cut reminder) vehicle exit warning

   1. Pattern 1: With shift lever on P, driver door is opened, key is brought out of vehicle, driver door is closed, and movement away from vehicle is attempted
      WARNING FUNCTION OPERATION CONDITION - SITUATION C (1 OF 2)



      Reason for warning: Vehicle theft prevention, "Engine cannot be restarted" prevention, battery depletion prevention
      Warning start condition: Shift lever position is P, engine switch is on (ACC or IG), opened driver side door is closed and key is not in detected in vehicle interior and luggage interior
      Warning stop condition: Engine switch on (ACC) or off, or key is detected in vehicle interior and luggage interior
      Warning description	Combination meter buzzer	Multi-buzzer	Sounds once (1 "pon" sound) (when key is not detected continuously, sounds again when vehicle is first driven)
      	Combination meter display	Combination meter information	"Key is not detected" - "Check key position"
      	Wireless buzzer	Sounds 3 times (short beeps)
      Recommended user action		Turn engine switch off and exit vehicle while holding key

   2. With shift lever on P and either engine switch on (ACC) or steering lock / unlock set, driver door is opened, move away from vehicle is performed, and door handle lock switch is pressed in an attempt to perform entry lock operation
      WARNING FUNCTION OPERATION CONDITION - SITUATION C (2 OF 2)



      Reason for warning: Vehicle theft prevention, battery depletion prevention
      Precondition: Change door control lock switch from off to on
      Warning start condition: Shift lever position is P, engine switch is on (ACC or IG), all doors closed and key is detected in vehicle exterior.
      Warning stop condition: One of following conditions is met Engine switch on (ACC) or off, or key is detected in vehicle exterior Key is detected in vehicle interior and luggage interior and key is not detected in vehicle exterior.
      Warning description	Combination meter buzzer	Multi-buzzer	None
      	Combination meter display	Combination meter information	None
      	Wireless buzzer	Sounds for 2 seconds (long beep)
      Recommended user action		Turn engine switch off and perform entry lock operation

5. Situation D:

   Entry door ajar warning

   1. With one of vehicle's doors open, entry lock operation is attempted
      WARNING FUNCTION OPERATION CONDITION - SITUATION D



      Reason for warning: Vehicle theft prevention
      Precondition: Engine switch on (ACC) or off, and one of doors open
      Warning stop condition: After preconditions are met, entry lock operation is performed
      Warning stop condition: Engine switch is on (ACC or IG), all doors are closed, wireless unlock is performed, entry unlock operation is performed or 10 seconds have passed after warning start
      Warning description	Combination meter buzzer	Multi-buzzer	None
      	Combination meter display	Combination meter information	None
      	Wireless buzzer	Sounds continuously (beep)
      Recommended user action		Close all doors and perform entry lock operation

6. Situation E:

   Passenger has brought key out of vehicle warning

   1. With engine switch in position other than off, key is brought out of vehicle by passenger
      WARNING FUNCTION OPERATION CONDITION - SITUATION E



      Reason for warning: "Engine cannot be started" prevention
      Warning start condition: Engine switch is on (ACC or IG), opened door other than driver side door is closed, vehicle speed is 0 km/h (0 mph) and key is not in detected in vehicle interior and luggage interior
      Warning stop condition: Engine switch on (ACC) or off, or key is detected in vehicle interior and luggage interior or vehicle speed is above 0 km/ h (0 mph)
      Warning description	Combination meter buzzer	Multi-buzzer	Sounds once (1 "pon" sound) (when key is not detected continuously, sounds again when vehicle is first driven)
      	Combination meter display	Combination meter information	"Key is not detected" - "Check key position"
      	Wireless buzzer	Sounds 3 times (short beeps)
      Recommended user action		Check if the passenger who exited the vehicle has the key or not

7. Situation F:

   Key is not within detection area warning

   1. With key not in vehicle cabin or key battery depleted, engine switch on (ACC or IG) operation is attempted
      WARNING FUNCTION OPERATION CONDITION - SITUATION F



      Reason for warning: User confusion prevention
      Warning condition: Engine switch is not off and key is not detected in vehile interior
      Warning description	Combination meter buzzer	Multi-buzzer	Sounds once (1 "pon" sound)
      	Combination meter display	Combination meter information	"Key is not detected" - "Check key position" is displayed for 10 seconds, then display ends
      	Wireless buzzer	None
      Recommended user action		Check if the key is within the detection area of the vehicle cabin If key is within the vehicle interior, built-in battery may be depleted If key's wireless door lock switch is pressed, check if key's indicator illuminates If indicator does not illuminate, replace the built-in battery It is recommended that battery be bought at dealer, but battery can be replaced according to user preference

8. Situation G:

   Key lock-in prevention function buzzer (for cabin)

   1. With key in vehicle cabin, vehicle is exited and door handle lock switch is pressed in an attempt to perform entry lock operation
      WARNING FUNCTION OPERATION CONDITION - SITUATION G



      Reason for warning: Key reminder vehicle theft warning prevention
      Warning condition: Engine switch on (ACC) or off, all doors closed, door handle lock switch ON and key is detected in vehicle interior (key is not in luggage)
      Warning description	Combination meter buzzer	Multi-buzzer	None
      	Combination meter display	Combination meter information	None
      	Wireless buzzer	Sounds for 2 seconds (long beep)
      Recommended user action		Pick up key that is in vehicle interior and perform entry lock operation again

9. Situation H:

   Key lock-in prevention function buzzer (for luggage compartment)

   1. Key is put into luggage compartment and luggage compartment door is accidentally closed
      WARNING FUNCTION OPERATION CONDITION - SITUATION H



      Reason for warning: Key lock-in
      Precondition: Vehicle speed is 0 km/h (0 mph) and entry luggage function is operating (not set to off through customization)
      Warning start condition: After preconditions are met, all doors are closed, key is put into luggage and luggage compartment door is closed
      Warning description	Combination meter buzzer	Multi-buzzer	None
      	Combination meter display	Combination meter information	None
      	Wireless buzzer	Sounds for 2 seconds (short beep)
      Recommended user action		Using entry luggage function, open luggage compartment door and remove key

10. Situation I:

    Key battery low warning

    1. Key with almost depleted battery is used to drive vehicle
       WARNING FUNCTION OPERATION CONDITION - SITUATION I



       Reason for warning: Helpful function
       Warning condition: After engine switch not off condition continues for 20 minutes or more, engine switch is changed from not off to off position, key battery is low and key is detected in vehicle interior and luggage interior
       Warning description	Combination meter buzzer	Multi-buzzer	Sound once (1 "pon" sound)
       	Combination meter display	Combination meter information	"Low Key Battery" - "Have your vehicle checked by a dealer"
       	Wireless buzzer	None
       Recommended user action		Replace key's built-in battery with new one It is recommended that battery be bought at dealer, but battery can be replaced according to user preference

1. Vehicle battery saving function:

   In the smart access system with push-button start, signals are emitted outside of the vehicle at a prescribed interval (0.25 seconds) when the doors are locked. Therefore, the vehicle battery could be drained if the vehicle remains parked for a long time. For this reason, the controls listed below exist.

   VEHICLE BATTERY SAVING FUNCTION



   Condition	Control
   Both conditions below are met for 10 days: Key is not in detection area Touch sensor or lock switch operation is not performed	Signal transmission interval is extended from 0.25 to 0.75 seconds
   Both conditions below are met for 15 days: Key is not in detection area Touch sensor or lock switch operation is not performed	Signal transmission interval is extended from 0.75 to 2.25 seconds
   Both conditions below are met for 30 days: Key is not in detection area Touch sensor or lock switch operation is not performed	Automatically deactivates the smart access system with push-button start

   Reinstatement Conditions:

   • A wireless door lock control signal (lock, unlock) is input and the ID matches.
   • A user carries the key and pushes a lock switch on an outside door handle.
   • The driver door is locked or unlocked by the mechanical key.
2. Key battery and vehicle battery saving function: In the smart access system with push-button start, if the key is constantly located within the vehicle exterior detection area of the doors, the system maintains periodic communication with the key. Therefore, if the vehicle remains parked in that state for a long time, the key battery and the vehicle battery could be drained. For this reason, if this state continues longer than 10 minutes, the smart access system with push-button start automatically becomes deactivated.

   Reinstatement Conditions

   • A wireless door lock control signal (lock, unlock) is input and the ID code matches.
   • A user carries the key and pushes a lock switch on an outside handle.
   • The driver door is locked or unlocked by the mechanical key.

HINT:

Key diagnostic mode checks if the electrical key transmitter within a selected oscillator/antenna detection area is operating normally. The results are output through the wireless door lock buzzer (in right front fender).

1. Connect the intelligent tester or Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the tester on.
4. Enter the following menus:
   1. Intelligent tester - Select: DIAGNOSIS / OBD/ MOBD / SMART ACCESS / ID UTILITY / SMART DIAGMODE.
   2. Techstream - Select: Body Electrical / Smart Access / Smart Communication Check
5. Check the values by referring to the table below.
   1. Intelligent tester

      SMART ACCESS (Certification ECU)

      INTELLIGENT TESTER - SMART ACCESS (CERTIFICATION ECU)



      Tester Display	Inspection Range
      D + OVERHEAD [*1]	Door electrical key oscillator (for Front LH)
      P + OVERHEAD [*2]	Door electrical key oscillator (for Front RH)
      DR + OVERHEAD [*3]	Door electrical key oscillator (for Rear LH)
      PR + OVERHEAD [*4]	Door electrical key oscillator (for Rear RH)
      FR + OVERHEAD [*5]	Indoor electrical key oscillator (for Front)
      RR + OVERHEAD [*6]	Indoor electrical key oscillator (for Rear)
      IN LUG + IN LUG [*7]	Indoor electrical key oscillator (for Luggage room)
      LUGG + OVERHEAD [*8]	Electrical key antenna (for Luggage room)
      LUGG + IN LUG [*9]	Electrical key antenna (for Luggage room)

   2. Techstream

      Smart Access (Certification ECU)

      TECHSTREAM - SMART ACCESS (CERTIFICATION ECU)



      Tester Display	Inspection Range
      Overhead + Driver Side [*1]	Door electrical key oscillator (for Front LH)
      Overhead + Passenger Side [*2]	Door electrical key oscillator (for Front RH)
      Overhead + Driver Side Rear [*3]	Door electrical key oscillator (for Rear LH)
      Overhead + Passenger Side Rear [*4]	Door electrical key oscillator (for Rear RH)
      Overhead + Front Room [*5]	Indoor electrical key oscillator (for Front)
      Overhead + Rear Room [*6]	Indoor electrical key oscillator (for Rear)
      Luggage + Luggage [*7]	Indoor electrical key oscillator (for Luggage room)
      Overhead + Luggage [*8]	Electrical key antenna (for Luggage room)
      Luggage + Luggage (inside) [*9]	Electrical key antenna (for Luggage room)

6. When the electrical key transmitter is brought near the selected oscillator/antenna, check that the wireless door lock buzzer sounds.
   1. *1: Door electrical key oscillator (for Front LH)

      HINT:

      • Hold the key at the same height as the door's outside handle (0.7 to 1.0 m (2.3 to 3.3 ft.)). Pay attention to the direction of the key in the illustration.
        Fig 3: Holding Key At Same Height As Door's Outside Handle

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • *2: Perform the same inspection above for the door electrical key oscillator (front passenger seat outside transmitter).
      • *3: Perform the same inspection above for the door electrical key oscillator (rear left seat outside transmitter).
      • *4: Perform the same inspection above for the door electrical key oscillator (rear right seat outside transmitter).
   2. *5: Indoor electrical key oscillator (front inside transmitter)

      HINT:

      Place the electrical key transmitter on the driver or front passenger seat cushion.

   3. *6: Indoor electrical key oscillator (rear inside transmitter)

      HINT:

      Place the electrical key transmitter on the rear seat cushion.

   4. *7: Indoor electrical key oscillator (for luggage room)

      HINT:

      Place the electrical key transmitter in the luggage compartment.

   5. *8, *9: Electrical key antenna (for luggage room)

      HINT:

      Hold the electrical key transmitter at the same height as the rear bumper upper surface and aligned with the center of the rear of the vehicle, as shown in the illustration.

      Fig 4: Holding Electrical Key Transmitter At Same Height As Rear Bumper Upper Surface

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
