Garage Door Opener: Notes

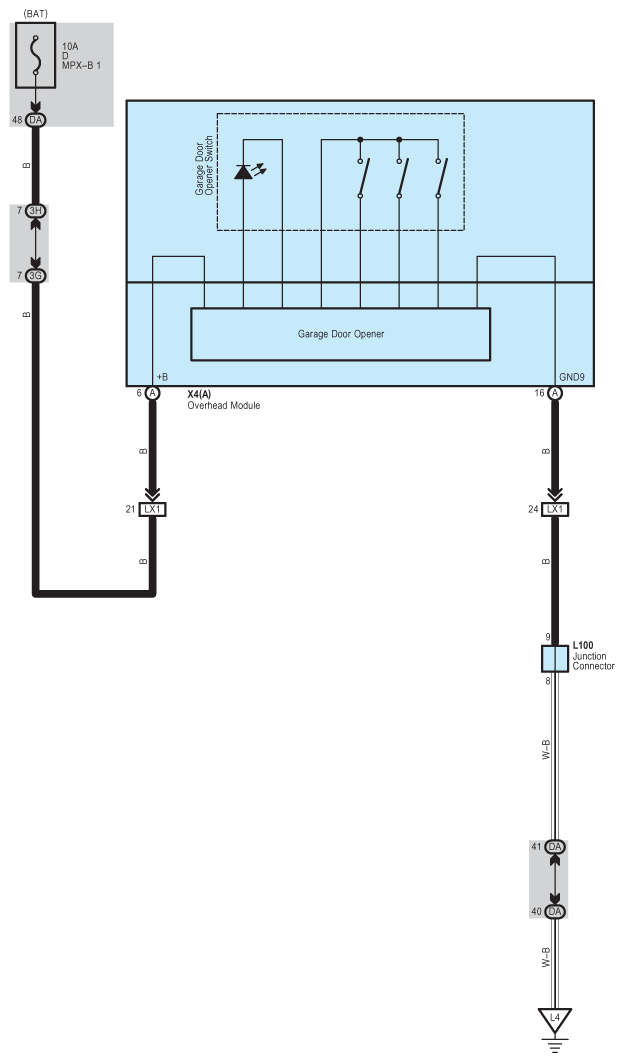

Fig 1: Garage Door Opener System Wiring Diagram
G08920841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
