Vibration Seat: Notes

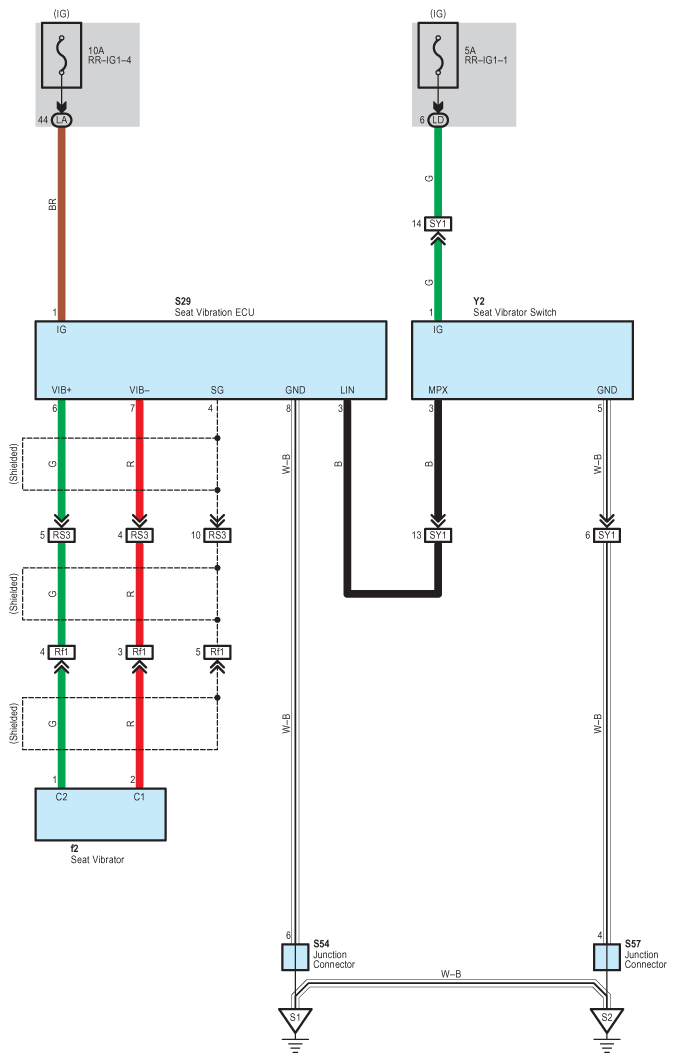

Fig 1: Vibration Seat System Wiring Diagram

G08920839

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
