Confirmation Driving Pattern

HINT:

Performing this confirmation pattern will activate the catalyst monitor. This is very useful for verifying the completion of a repair.

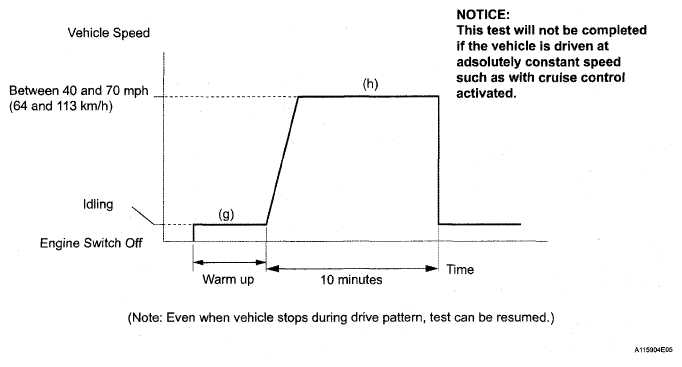

Fig 1: Identifying Driving Pattern Of Vehicle Speed

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the Intelligent tester or Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the tester ON.
4. Clear DTCs (if set) (see DTC CHECK / CLEAR ).
5. Enter the following menus:
   • Intelligent Tester - Select: DIAGNOSIS / CARB OBD II / READINESS TESTS.
   • Techstream - Select: Powertrain / Engine / Monitor.
6. Check that CAT EVAL*1 (Catalyst / Status 2)*2 is INCMPL*1 (Incomplete)*2.
7. Start the engine and warm it up.
8. Drive the vehicle at between 40 mph and 70 mph (64 km/h and 113 km/h) for at least 10 minutes.
9. Those items will change to COMPL*1 (Complete)*2 as CAT EVAL*1 (Catalyst)*2 monitor operates.
10. On the tester, enter the following menus:
    • Intelligent tester - Select: DIAGNOSIS / ENHANCED OBD II / DTC INFO / PENDING CODES; then check if any DTCs (any pending DTCs) are set.
    • Techstream - Select: Powertrain / Engine / Trouble Codes / Pending; then check if any DTCs (any pending DTCs) are set.

HINT:

• If CAT EVAL*1 (Catalyst)*2 does not change to COMPL*1 (Complete)*2, and any pending DTCs fail to set, extend the driving time.
• *1: Intelligent tester
• *2: Techstream
