With Consult-II

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON.
  2. Fully depress the brake pedal for at least 5 seconds.
  3. Erase the DTC with CONSULT-II.
  4. Select "DATA MONITOR" mode with CONSULT-II.

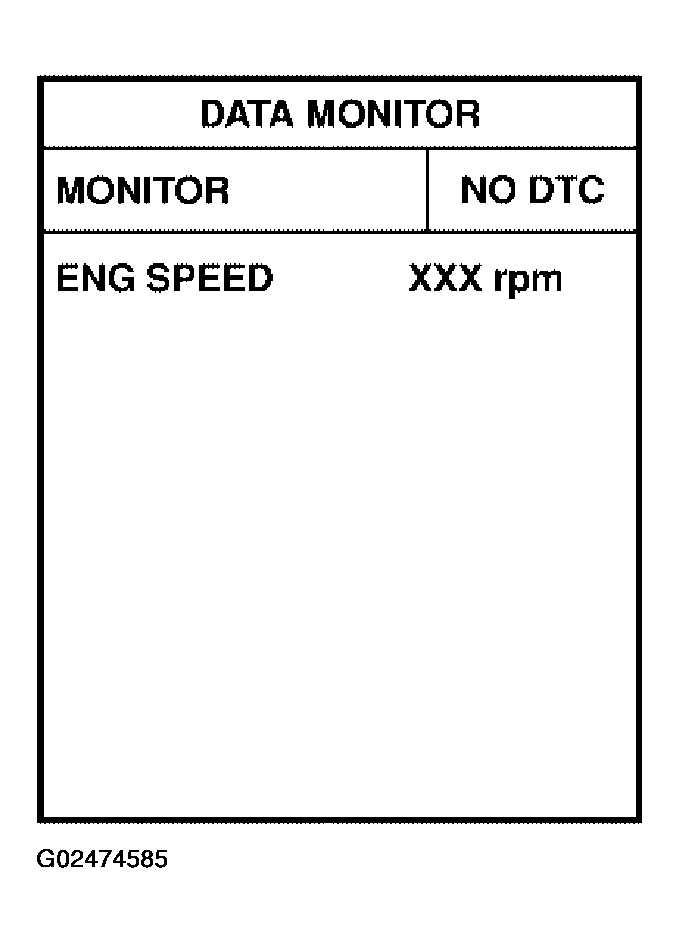

    Fig 1: CONSULT-II Data Monitor Display
    G02474585Courtesy of NISSAN MOTOR CO., U.S.A.
  5. If 1 st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE "
