Color of RGB Image is Not Proper (All Screens Look Reddish)

1. Turn ignition switch OFF.
2. Disconnect display control unit connector M95 and display unit connector M93.
3. Check continuity between display control unit and display unit.
4. Check continuity between display control unit and ground.
   • When the screen looks reddish  .

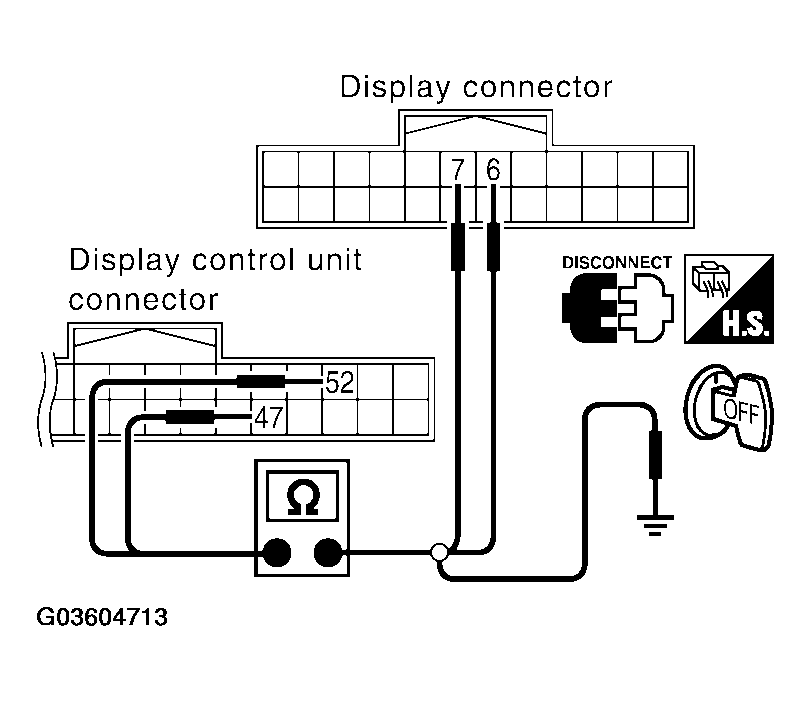

     Fig 1: Checking Continuity Between Display Control Unit And Display Unit And Ground

     Courtesy of NISSAN MOTOR CO., U.S.A.
     CONTINUITY BETWEEN DISPLAY CONTROL UNIT AND DISPLAY UNIT



     Terminals				Continuity
     Display control unit		Display unit
     Connector	Terminal (Wire color)	Connector	Terminal (Wire color)
     M95	52 (R/W)	M93	6 (R/W)	Yes
     	47		7

     CONTINUITY BETWEEN DISPLAY CONTROL UNIT AND GROUND



     Terminals			Continuity
     Display control unit		-
     Connector	Terminal (Wire color)
     M95	52 (R/W)	Ground	No
     	47

OK or NG

• OK: GO TO 2.
• NG: Repair harness or connector.

1. Connect display control unit connector and display unit connector.
2. Turn ignition switch ON.
3. Display "Color bar" by "CONFIRMATION/ADJUSTMENT" mode.
4. Check the following with CONSULT-II or oscilloscope.
   • When the screen looks reddish  .

     Voltage signal between display control unit connector M95 terminal 52 (R/W) and 47.

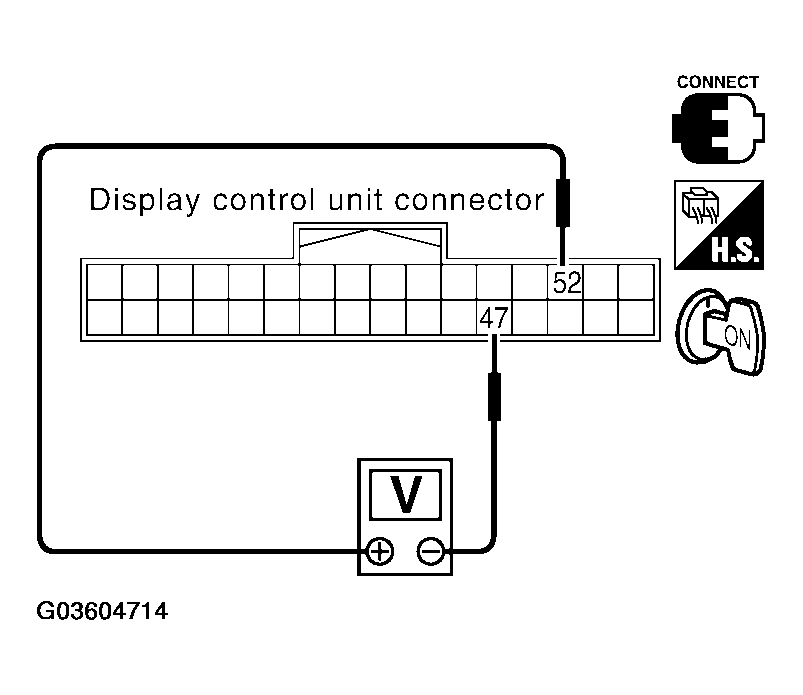

     Fig 2: Checking Voltage Signal Between Display Control Unit Connector M95 Terminal 52 (R/W) And 47

     Courtesy of NISSAN MOTOR CO., U.S.A.

     52 (R/W) - 47: Refer to " TERMINALS AND REFERENCE VALUE FOR DISPLAY CONTROL UNIT  ".

OK or NG

• OK: Replace display unit. Refer to "REMOVAL AND INSTALLATION OF DISPLAY UNIT ".
• NG: Replace display control unit. Refer to "REMOVAL AND INSTALLATION OF DISPLAY CONTROL UNIT ".
