Wiring Diagram - I/KEY-

WARNING: This page is about a different car, the 2007 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

Fig 1: Wiring Diagram BL-I/KEY-01

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Wiring Diagram BL-I/KEY-02

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Wiring Diagram BL-I/KEY-03

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Wiring Diagram BL-I/KEY-04

Courtesy of NISSAN MOTOR CO., U.S.A.

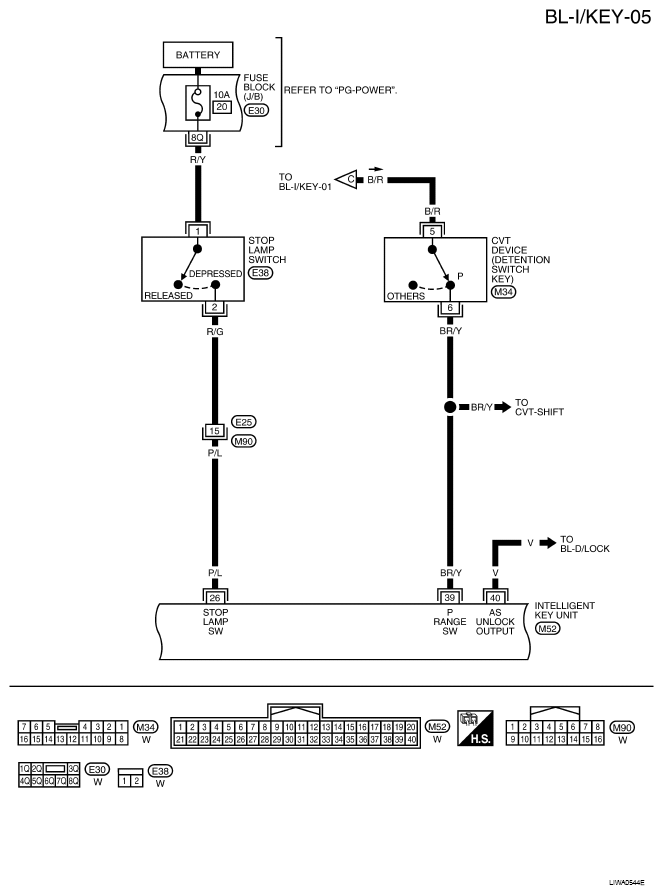

Fig 5: Wiring Diagram BL-I/KEY-05

Courtesy of NISSAN MOTOR CO., U.S.A.

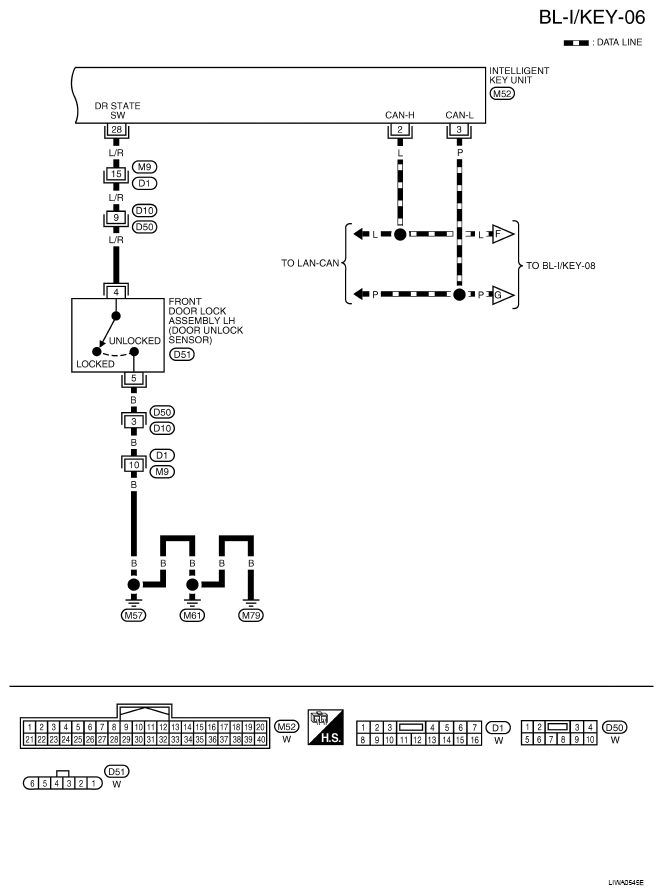

Fig 6: Wiring Diagram BL-I/KEY-06

Courtesy of NISSAN MOTOR CO., U.S.A.

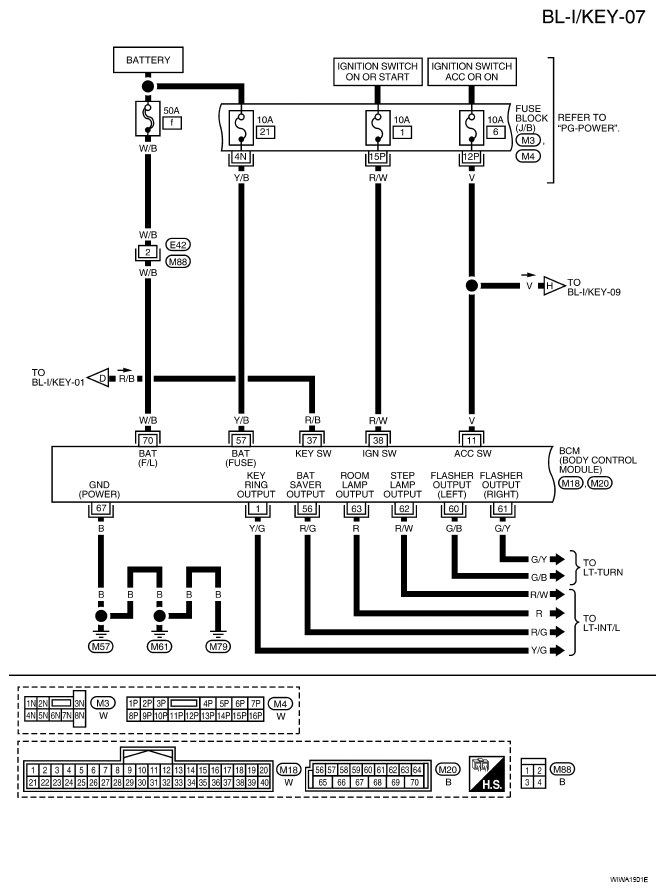

Fig 7: Wiring Diagram BL-I/KEY-07

Courtesy of NISSAN MOTOR CO., U.S.A.

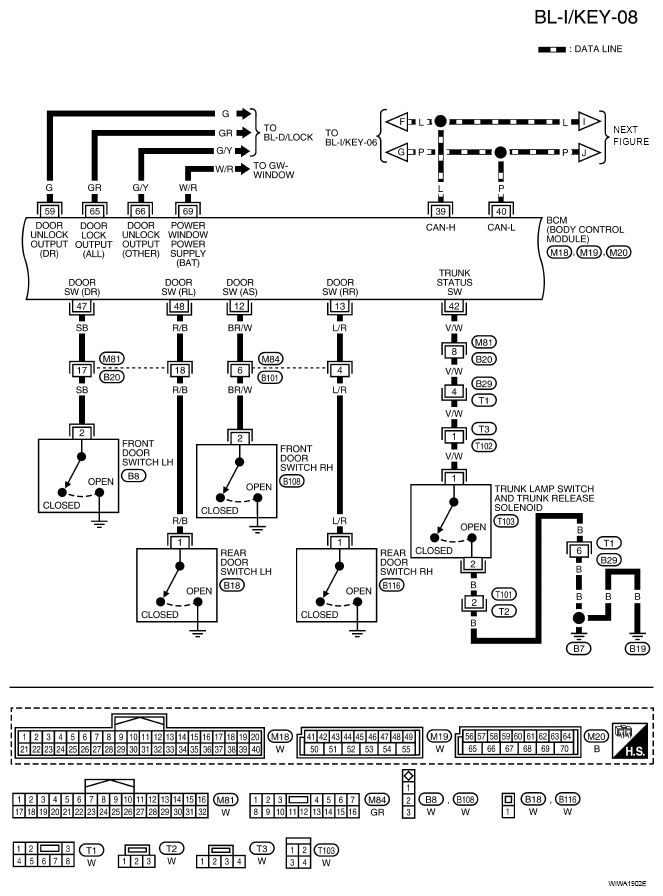

Fig 8: Wiring Diagram BL-I/KEY-08

Courtesy of NISSAN MOTOR CO., U.S.A.

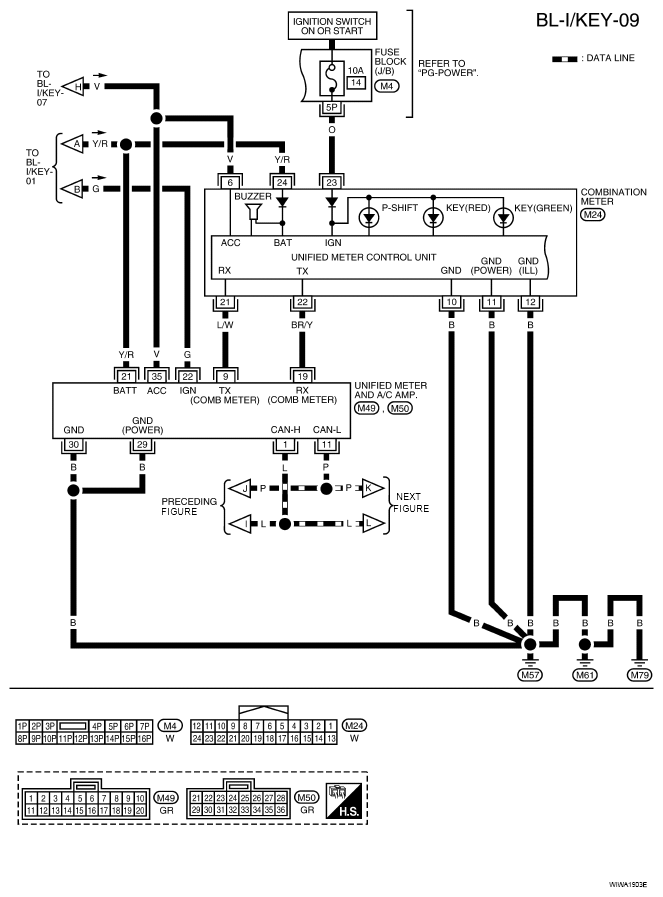

Fig 9: Wiring Diagram BL-I/KEY-09

Courtesy of NISSAN MOTOR CO., U.S.A.

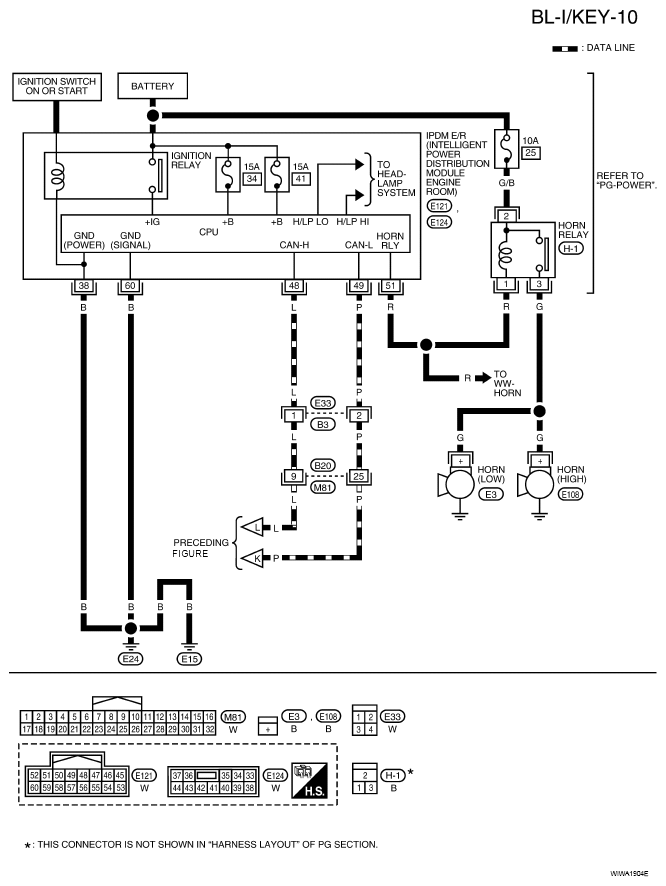

Fig 10: Wiring Diagram BL-I/KEY-10

Courtesy of NISSAN MOTOR CO., U.S.A.
