Control System

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

The control system consists of input sensors, switches, the A/C auto amp. (microcomputer) and outputs. The relationship of these components is as shown in the figure below:

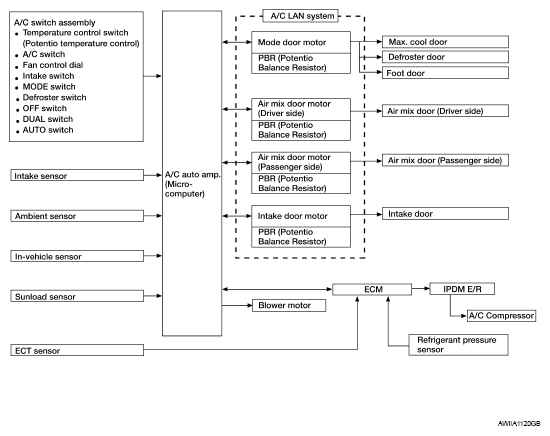

Fig 1: Automatic Air Conditioner System - System Diagram
G05876057Courtesy of NISSAN MOTOR CO., U.S.A.
