WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

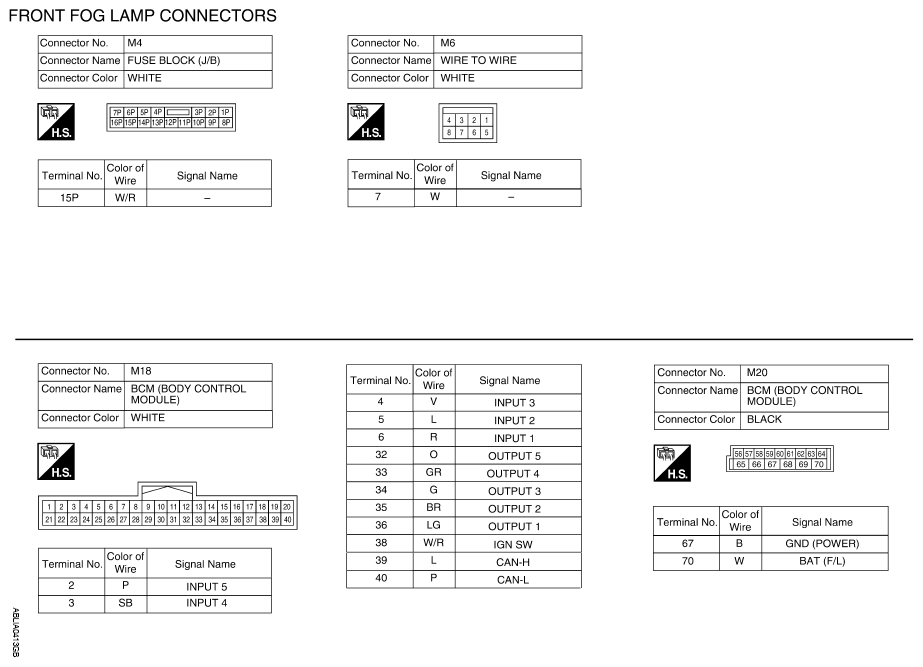

Fig 1: Identifying Front Fog Lamp Connectors (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

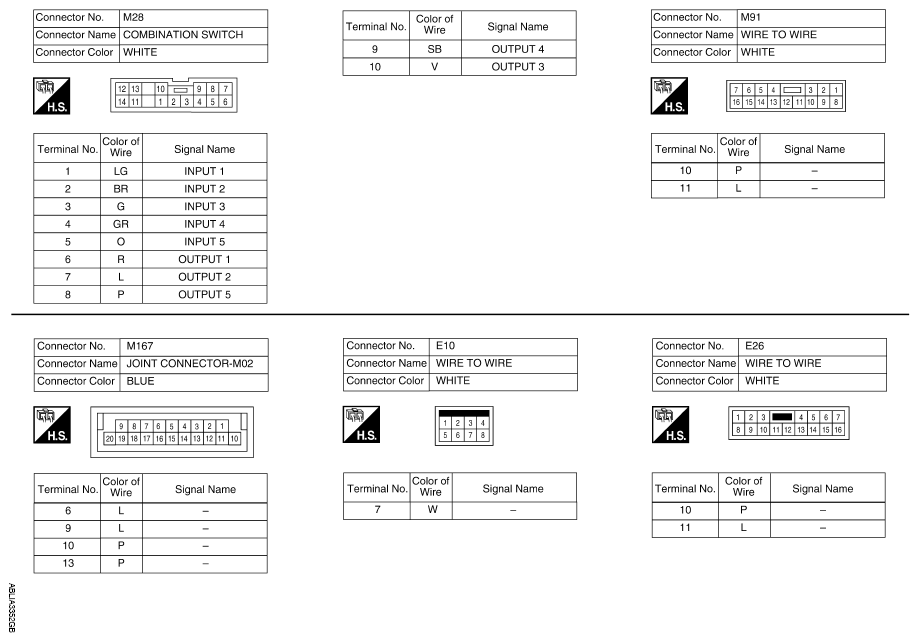

Fig 2: Identifying Front Fog Lamp Connectors (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

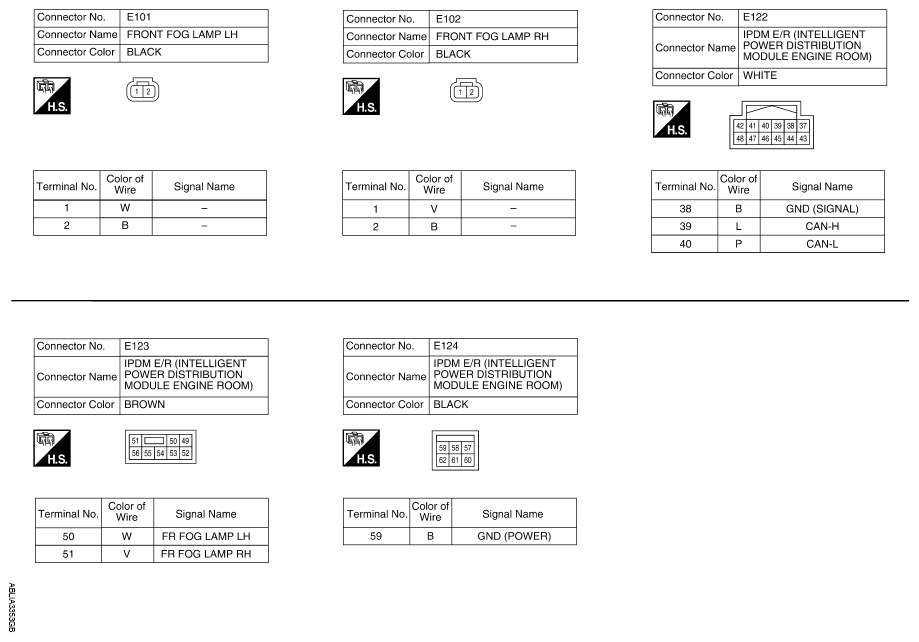

Fig 3: Identifying Front Fog Lamp Connectors (3 Of 3)
