Intake Air Temperature Sensor
WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

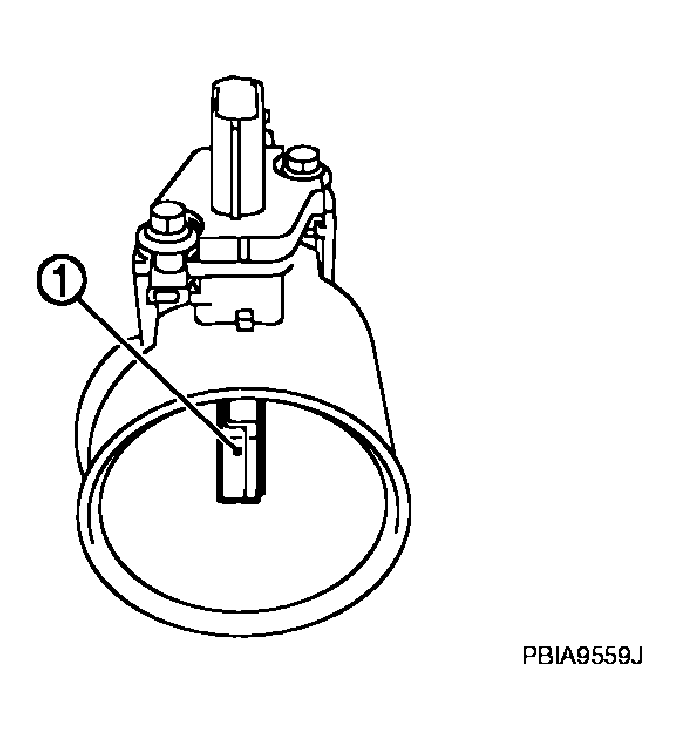

- Check resistance between intake air temperature sensor (1) terminals 5 and 6 under the following conditions.
INTAKE AIR TEMPERATURE SENSOR RESISTANCE
| Intake air temperature °C (°F) |
Resistance kΩ |
| 25 (77) |
1.800 - 2.200 |
- If NG, replace mass air flow sensor (with intake air temperature sensor).
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
