ASCD Indicator: Wiring Diagram

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

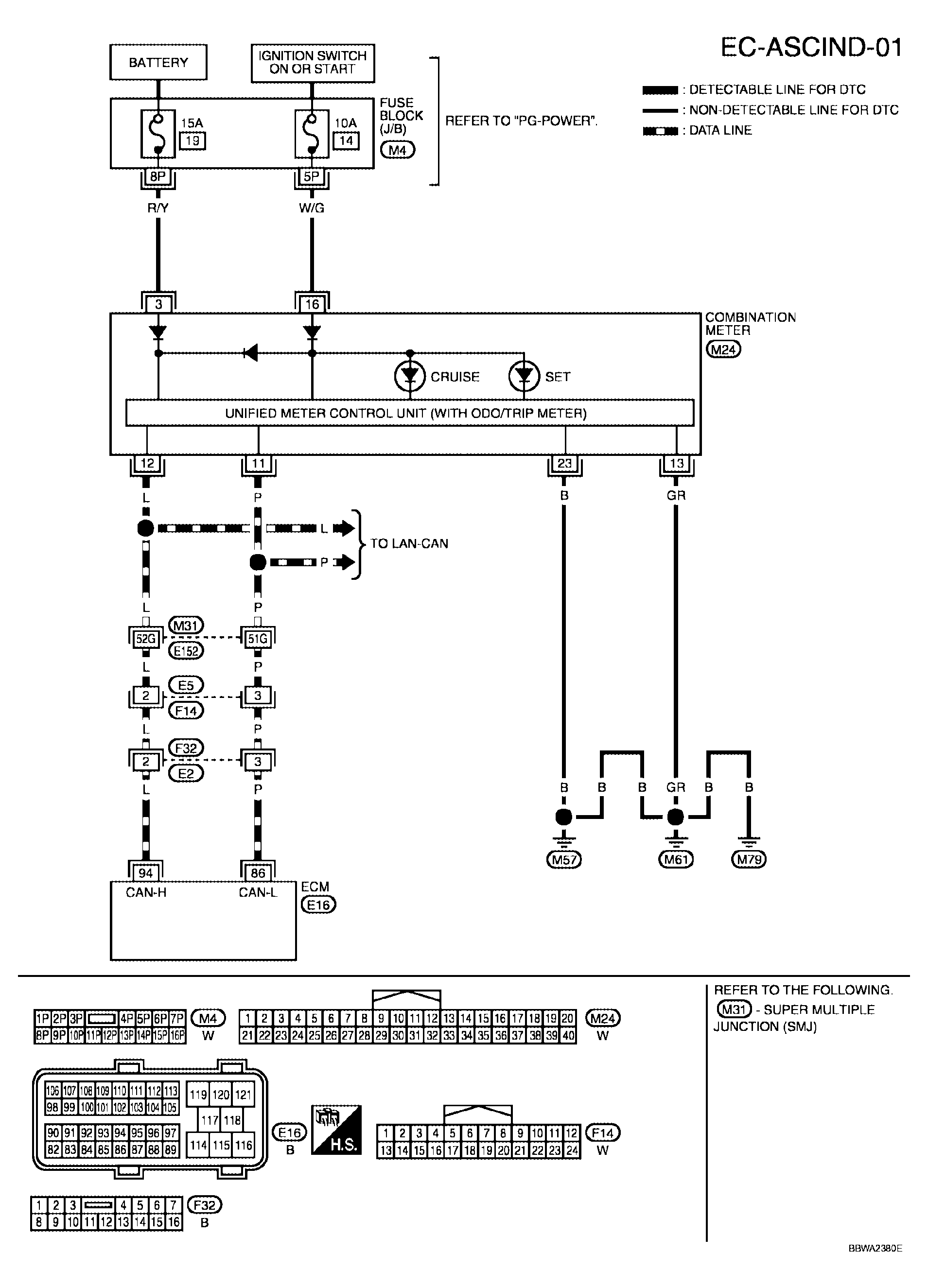

Fig 1: ASCD Indicator Wiring Diagram (EC-ASCIND-01)
G04173787Courtesy of NISSAN MOTOR CO., U.S.A.
