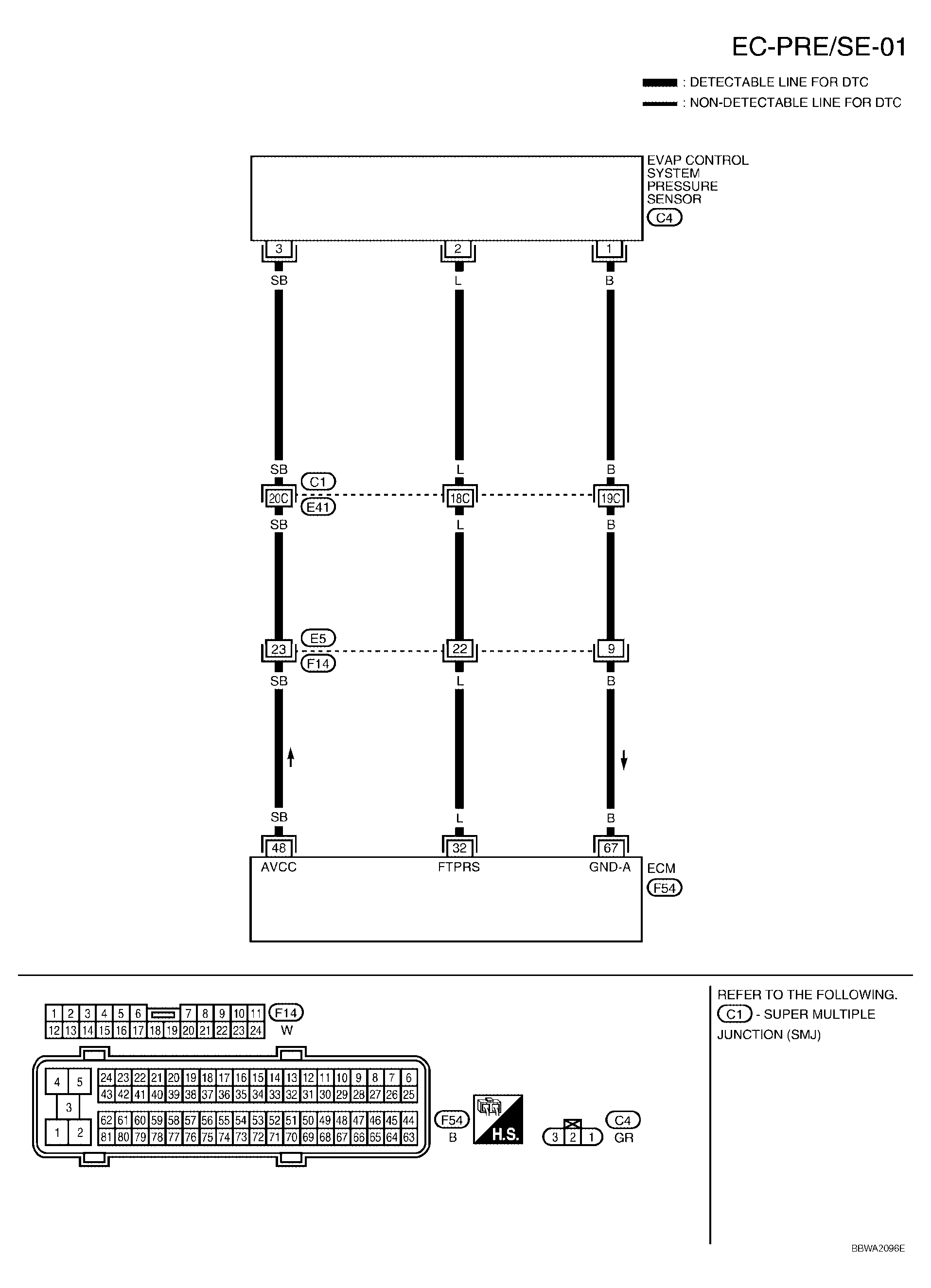

DTC P0453 EVAP Control System Pressure Sensor: Wiring Diagram
WARNING: This page is about a different car, the 2006 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TERMINAL WIRE ITEM CONDITION CHART
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 32 | L | EVAP control system pressure sensor | [Ignition switch: ON] | Approximately 1.8 - 4.8V |
| 48 | SB | Sensor power supply (EVAP control system pressure sensor) | [Ignition switch: ON] | Approximately 5V |
| 67 | B | Sensor ground | [Engine is running]
|
Approximately 0V |
