Piston Selection Table

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

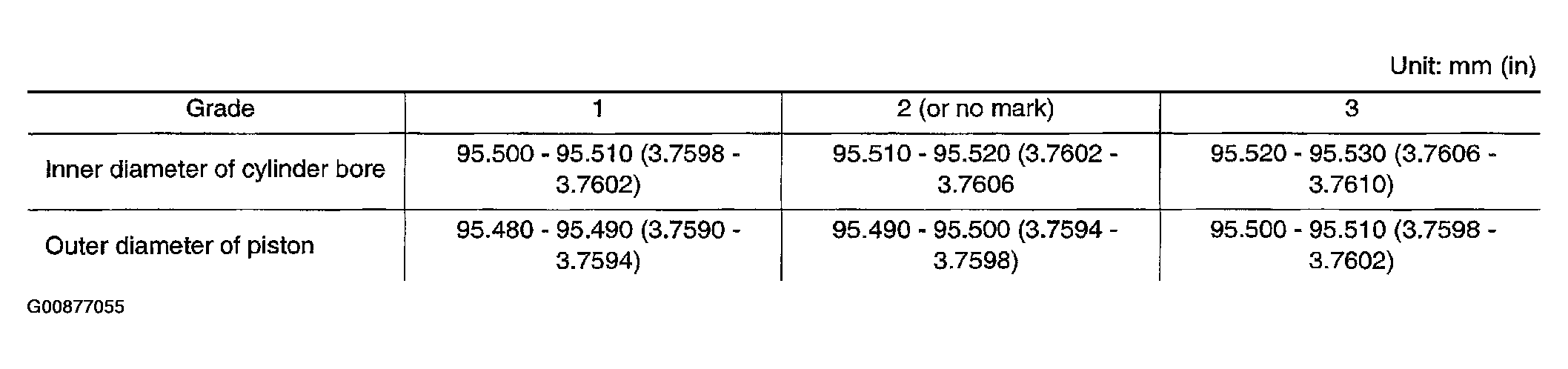

Fig 1: Piston Selection Table
G00877055Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • The piston is available together with piston pin as an assembly.
  • The piston pin (piston pin bore) grade is provided only for the parts installed at the plant. For service parts, no piston pin grades can be selected. (Only 0 grade is available.)
  • No grade mark is indicated on 2 grade piston.
