Check Mode Procedure

  1. LIST OF OPERATION METHODS

    By operating each of the A/C control switches as shown in the diagram below, it is possible to enter the diagnostic check mode.

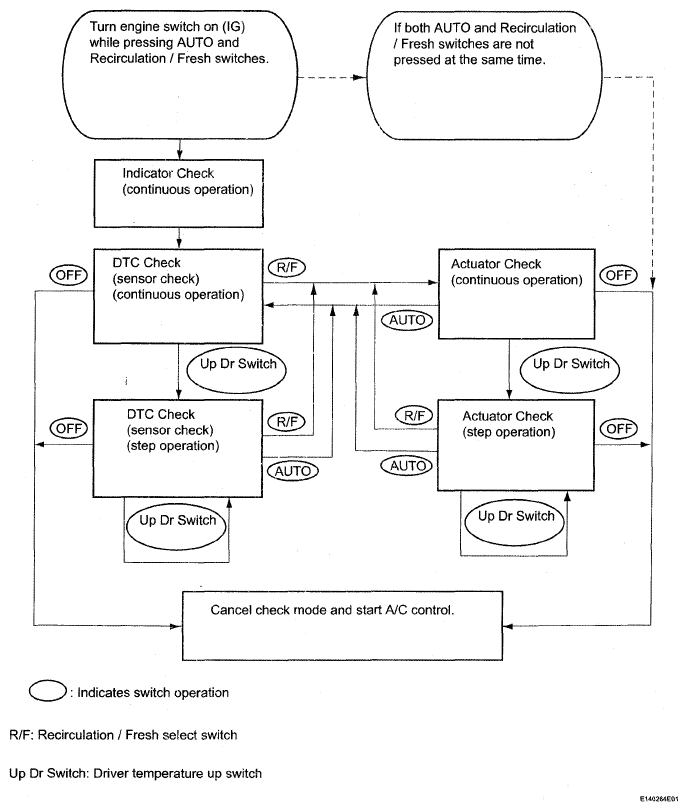

    Fig 1: A/C Control Switches Diagram
    G04950368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
