Air Conditioning: Condenser: Components

Fig 1: Identifying Condenser Components (1 Of 4)
G04950696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

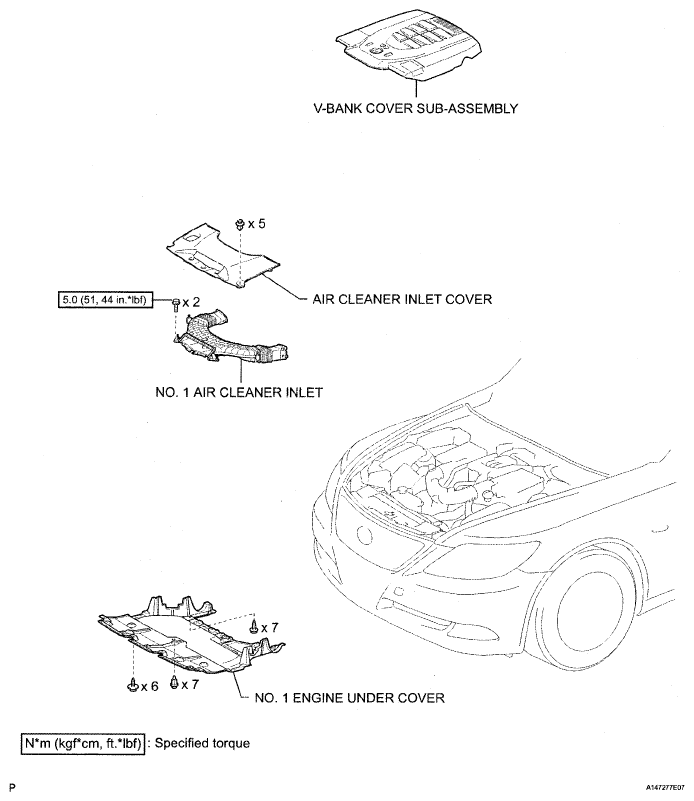

Fig 2: Condenser Replacement Components With Torque Specifications (2 Of 4)
G04950697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

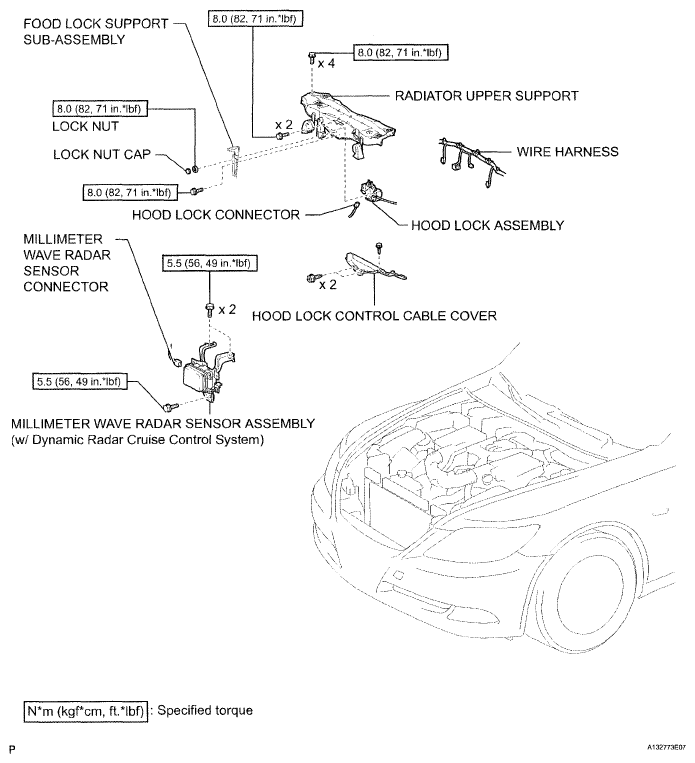

Fig 3: Condenser Replacement Components With Torque Specifications (3 Of 4)
G04950698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

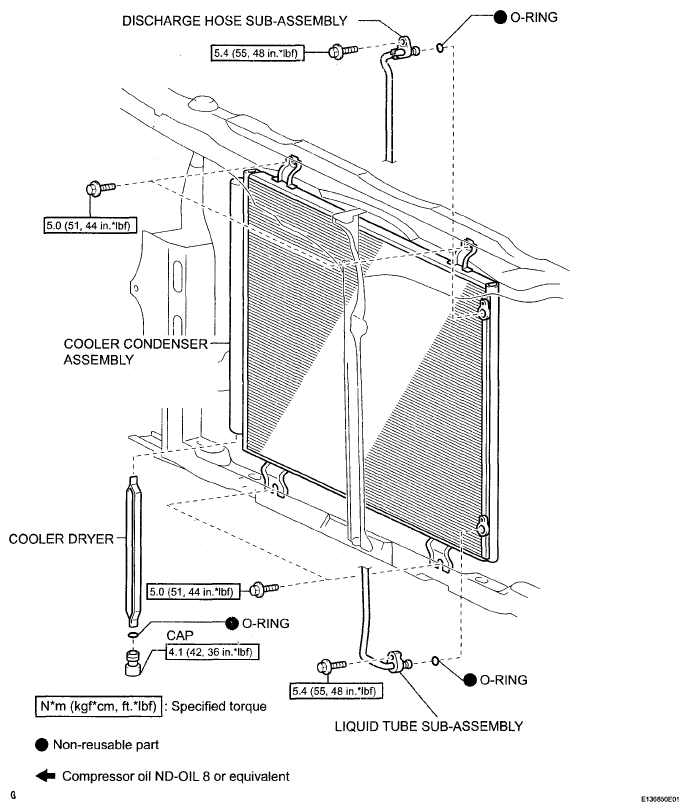

Fig 4: Condenser Replacement Components With Torque Specifications (4 Of 4)
G04950699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
