PTC Heater Assembly: Components

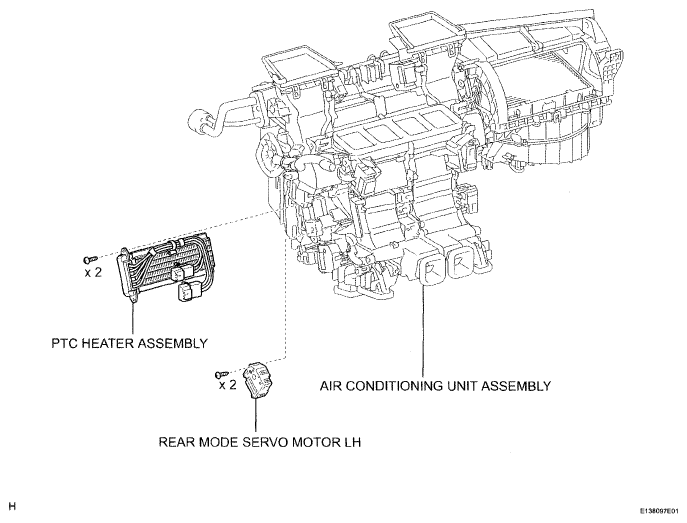

Fig 1: Identifying PTC Heater Assembly Components

G04950669

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
