DTC B1623/81 Side Airbag Sensor Assembly RH Initialization Incomplete; DTC B1628/82 Side Airbag Sensor Assembly LH Initialization Incomplete; DTC B1633/81 Rear Airbag Sensor Assembly RH Initialization Incomplete; DTC B1638/82 Rear Airbag Sensor Assembly LH Initialization Incomplete: Wiring Diagram

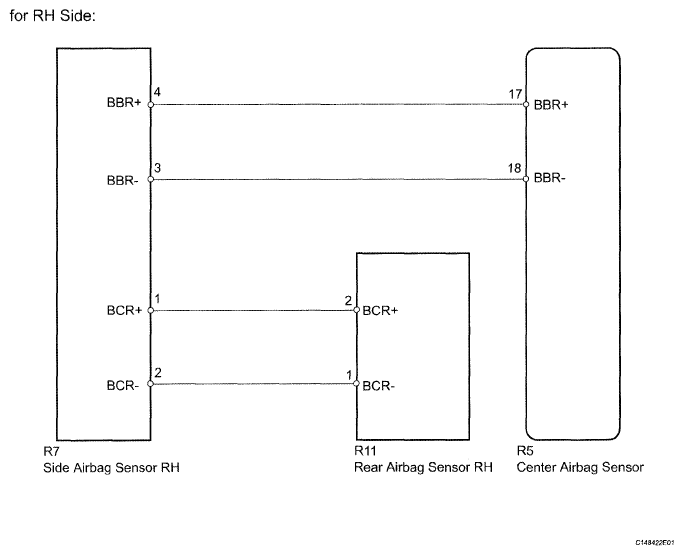

Fig 1: Identifying Side Airbag Sensor RH - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

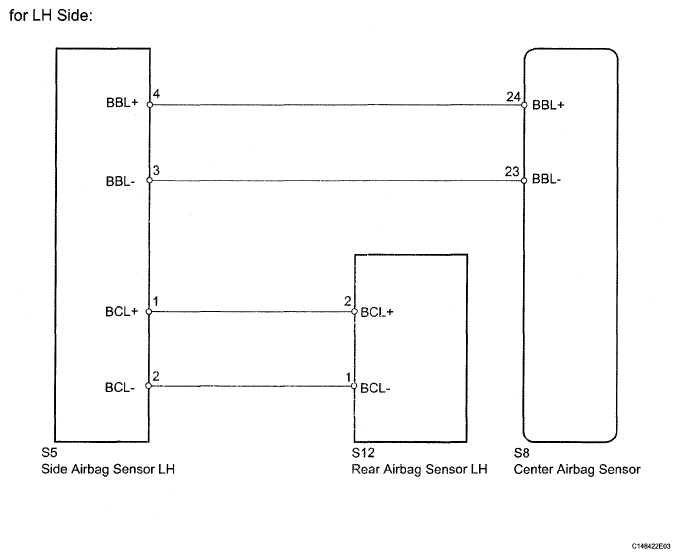

Fig 2: Identifying Side Airbag Sensor LH - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
