DTC B1774 Pressure Sensor Circuit Malfunction; DTC B1775 Pressure Sensor Power Source Circuit Mai-function: Wiring Diagram

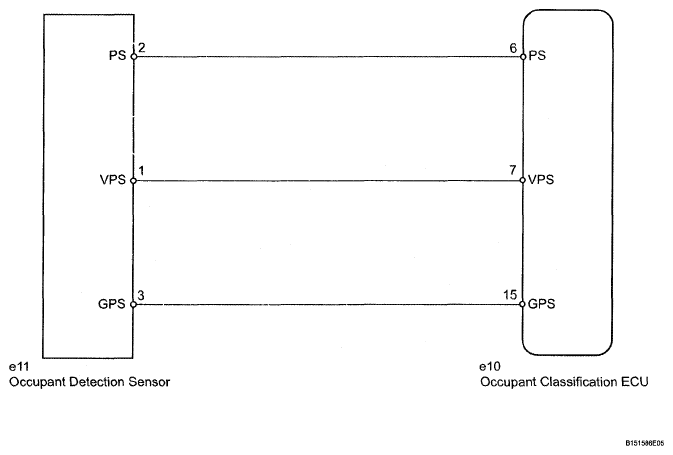

Fig 1: Identifying Pressure Sensor Circuit Malfunction - Wiring Diagram
G04951140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
