HEIGHT CONTROL VALVE (for Front Side): Components

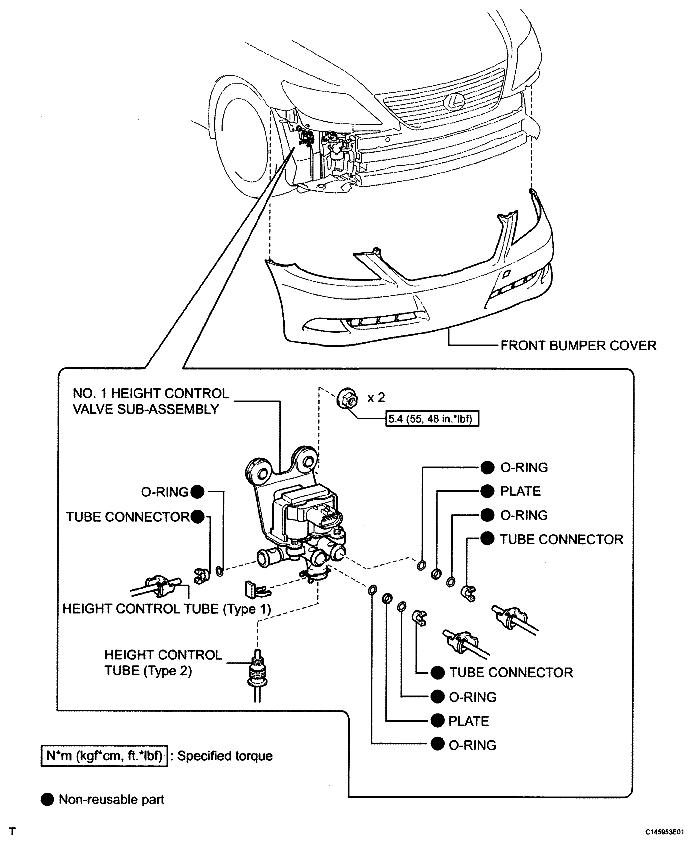

Fig 1: Height Control Valve (For Front Side) Replacement Components With Torque Specifications
G04944209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
