Connector Views

DATA LINK CONNECTOR

Code: D8

Part name: Data Link Connector 3

Part number: 90980-11665

Color: White

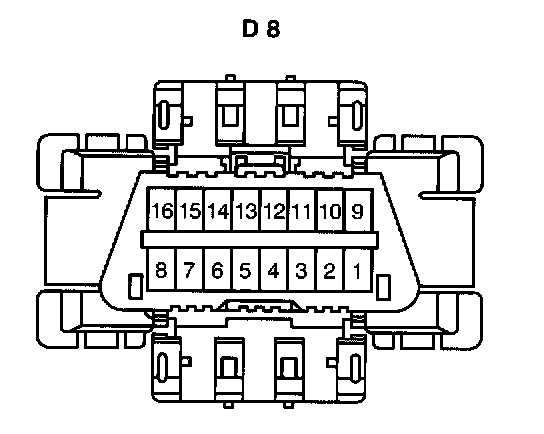

D8 (Data Link Connector 3):
