Open in CAN Main Bus Line
Open In CAN Main Bus Line

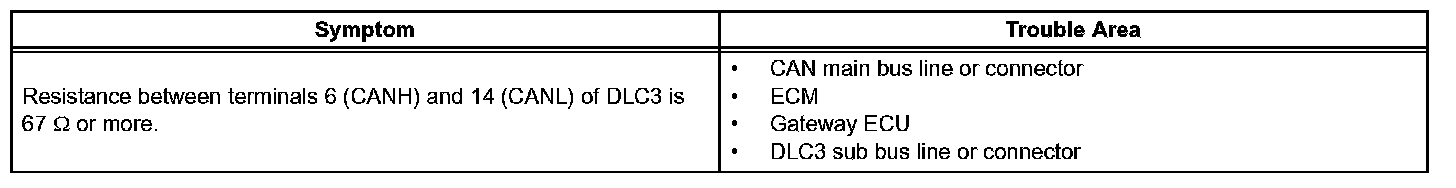

DESCRIPTION

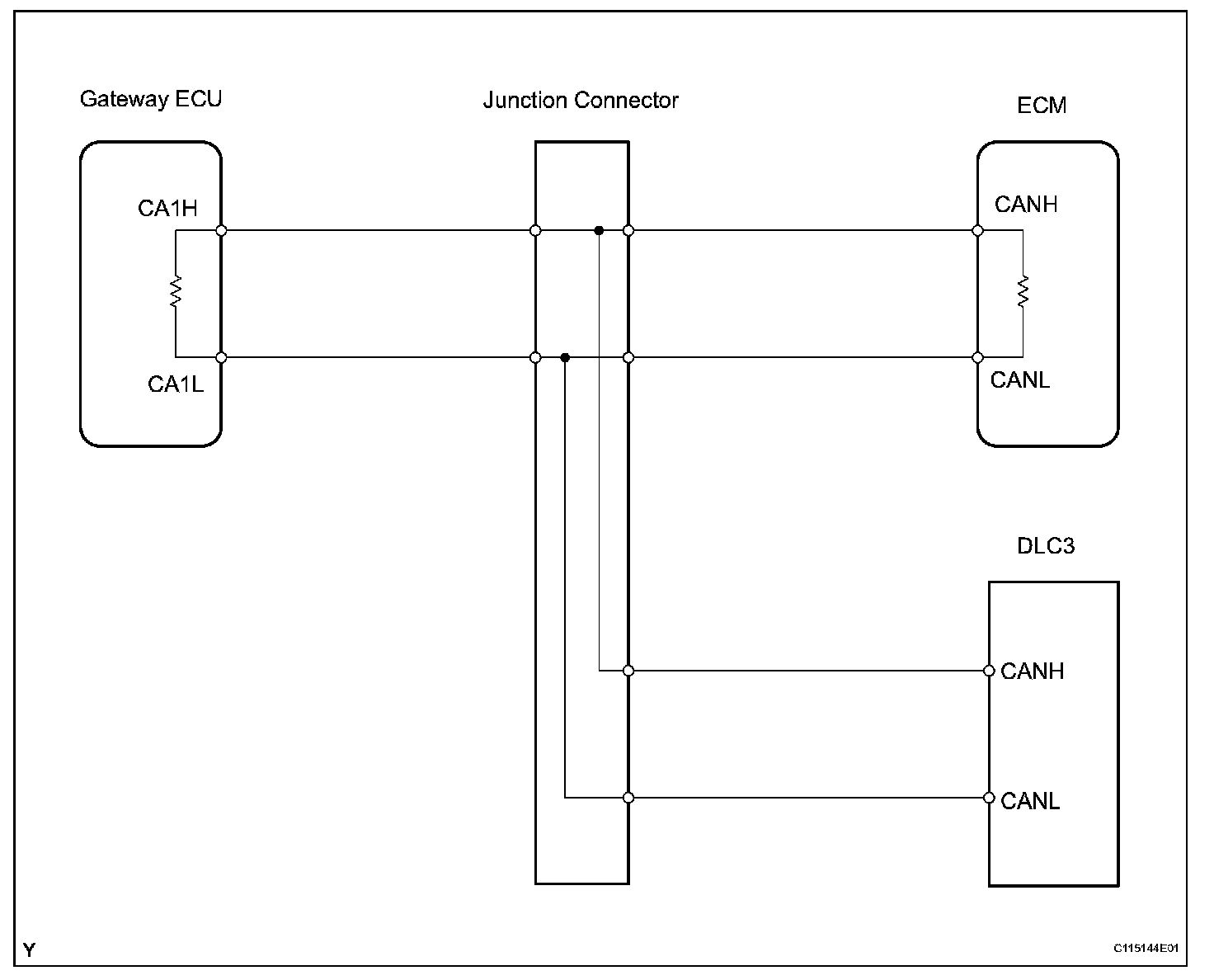

Wiring Diagram:

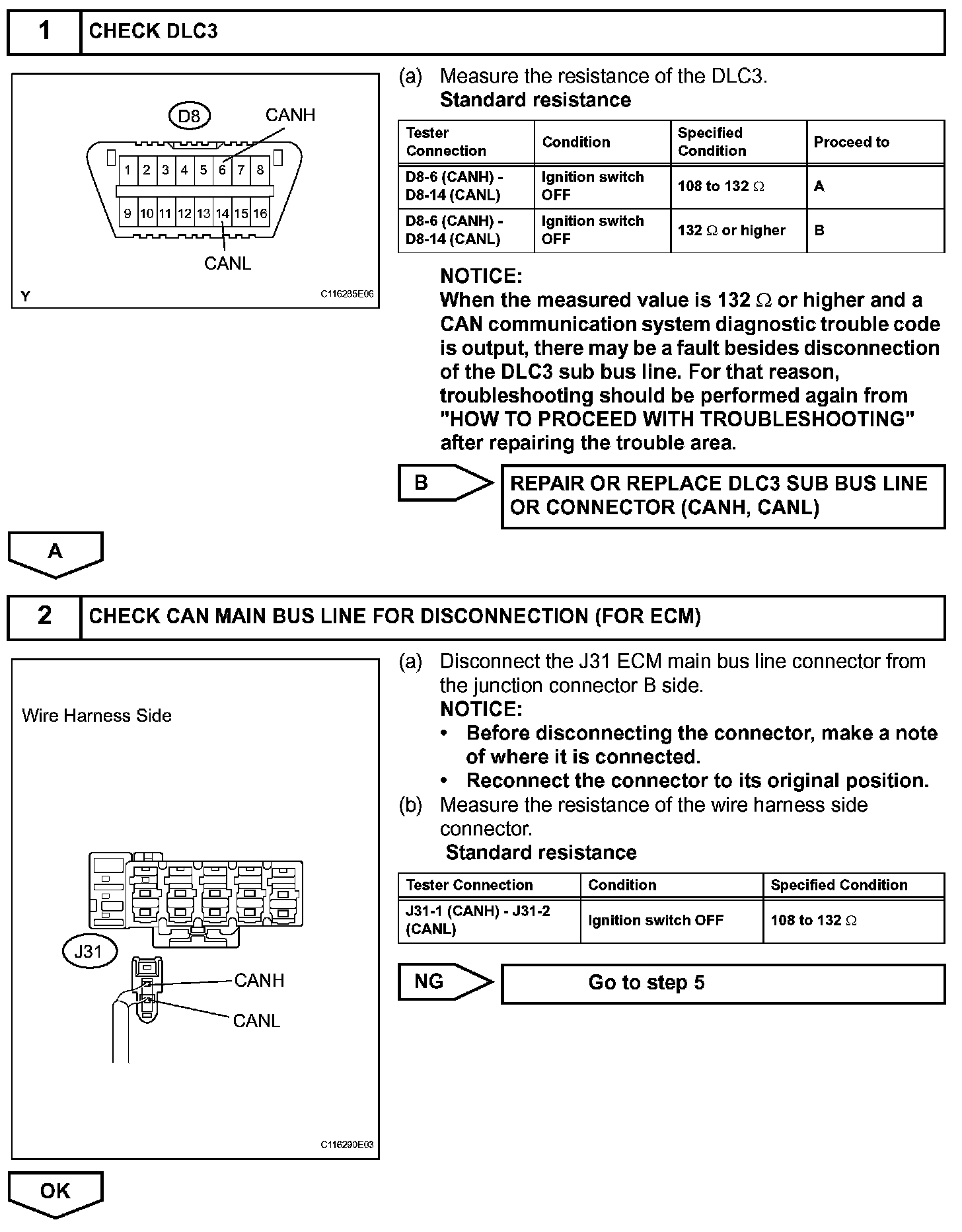

Step 1-2:

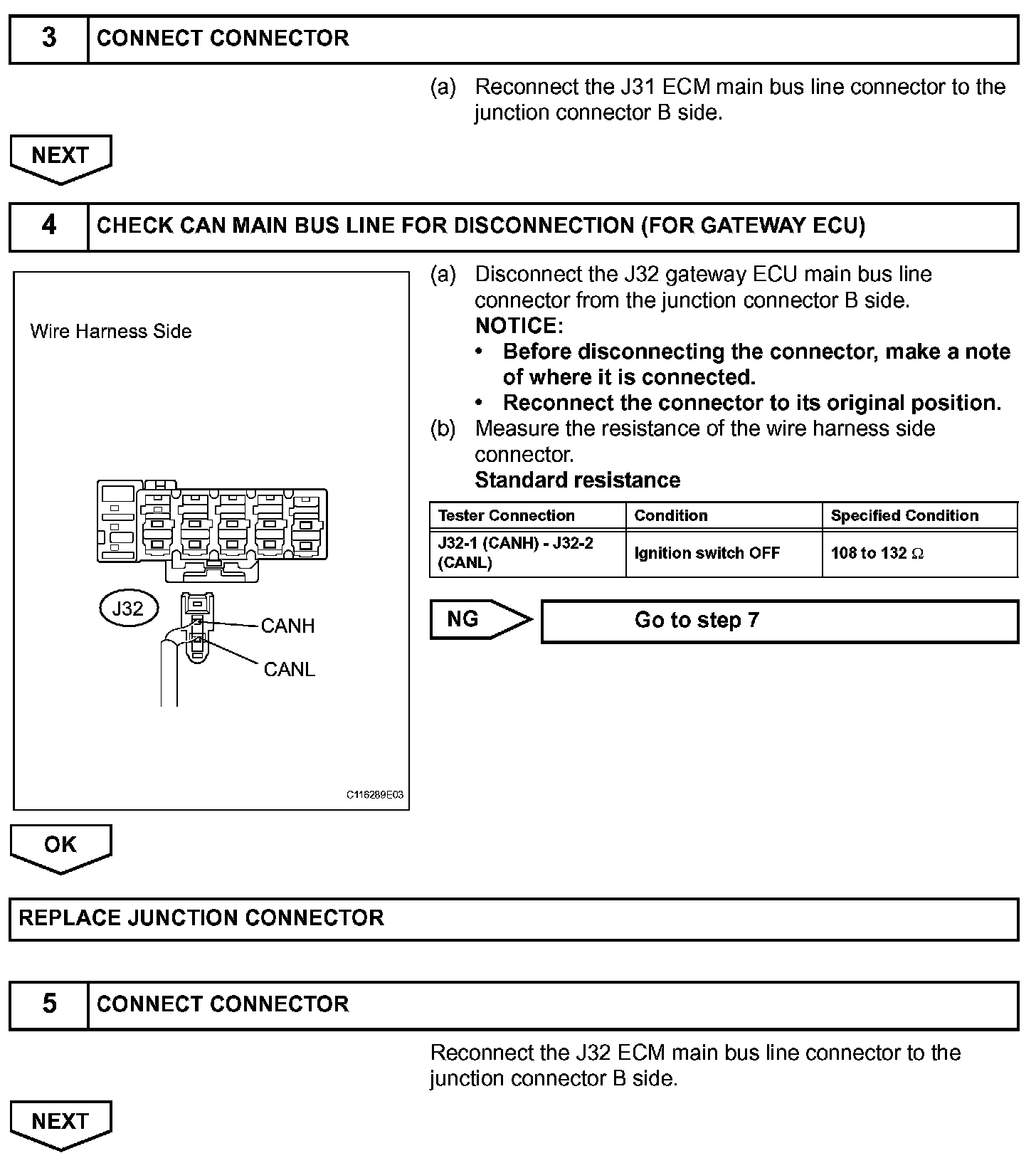

Step 3-5:

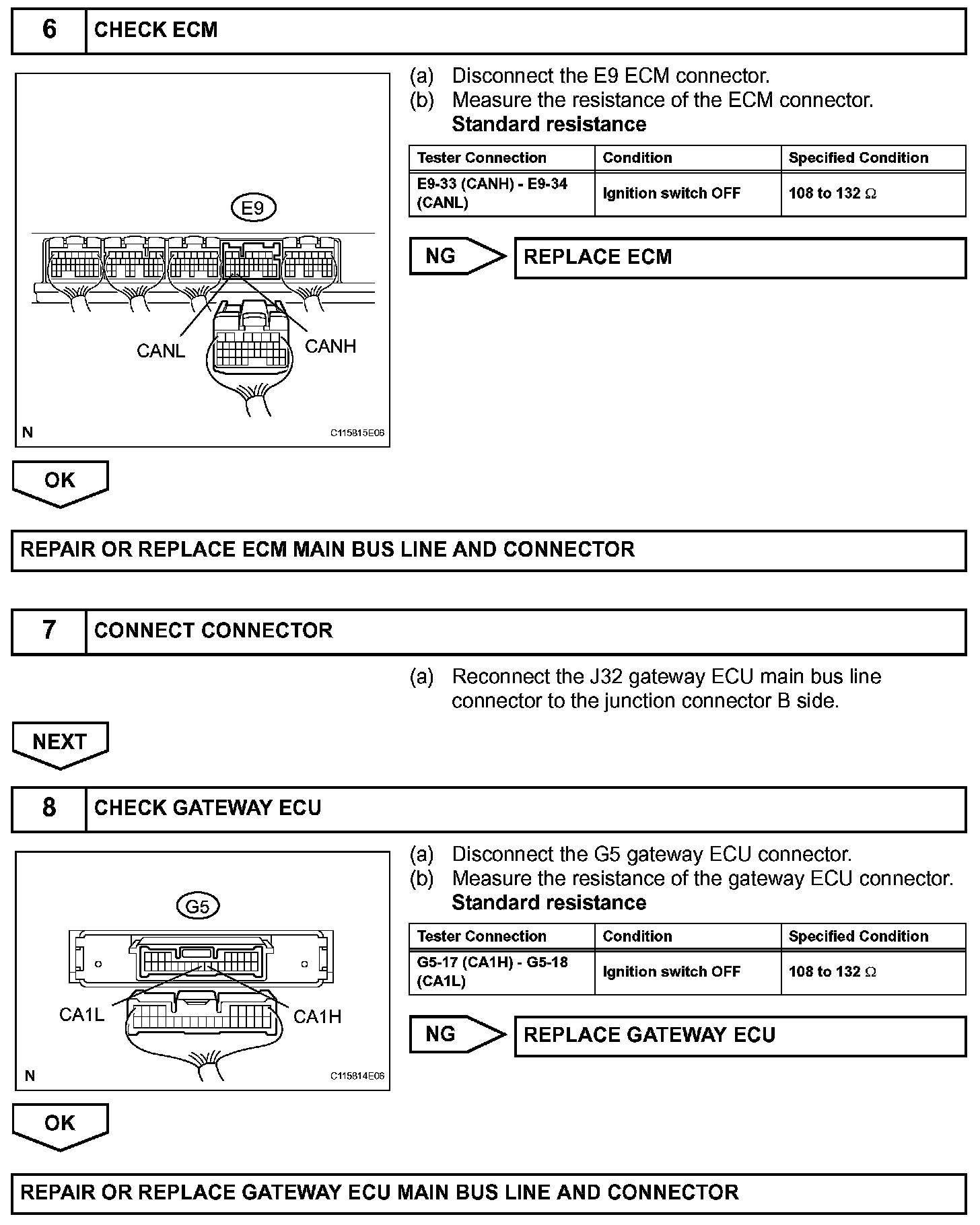

Step 6-8:
INSPECTION PROCEDURE
