Translate ECU Communication Stop Mode

Translate ECU Communication Stop Mode

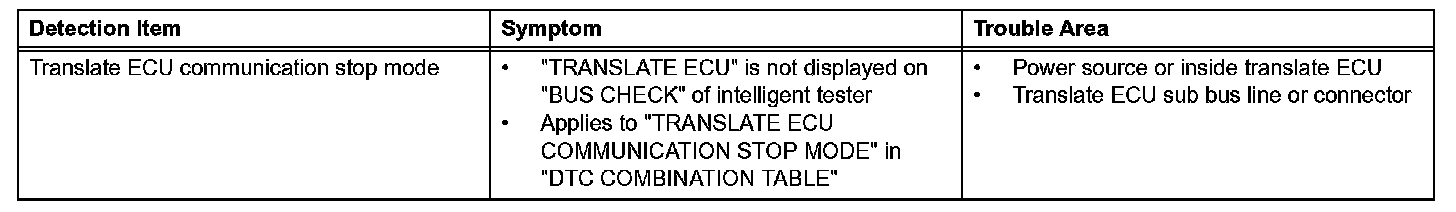

Detection Item:




DESCRIPTION

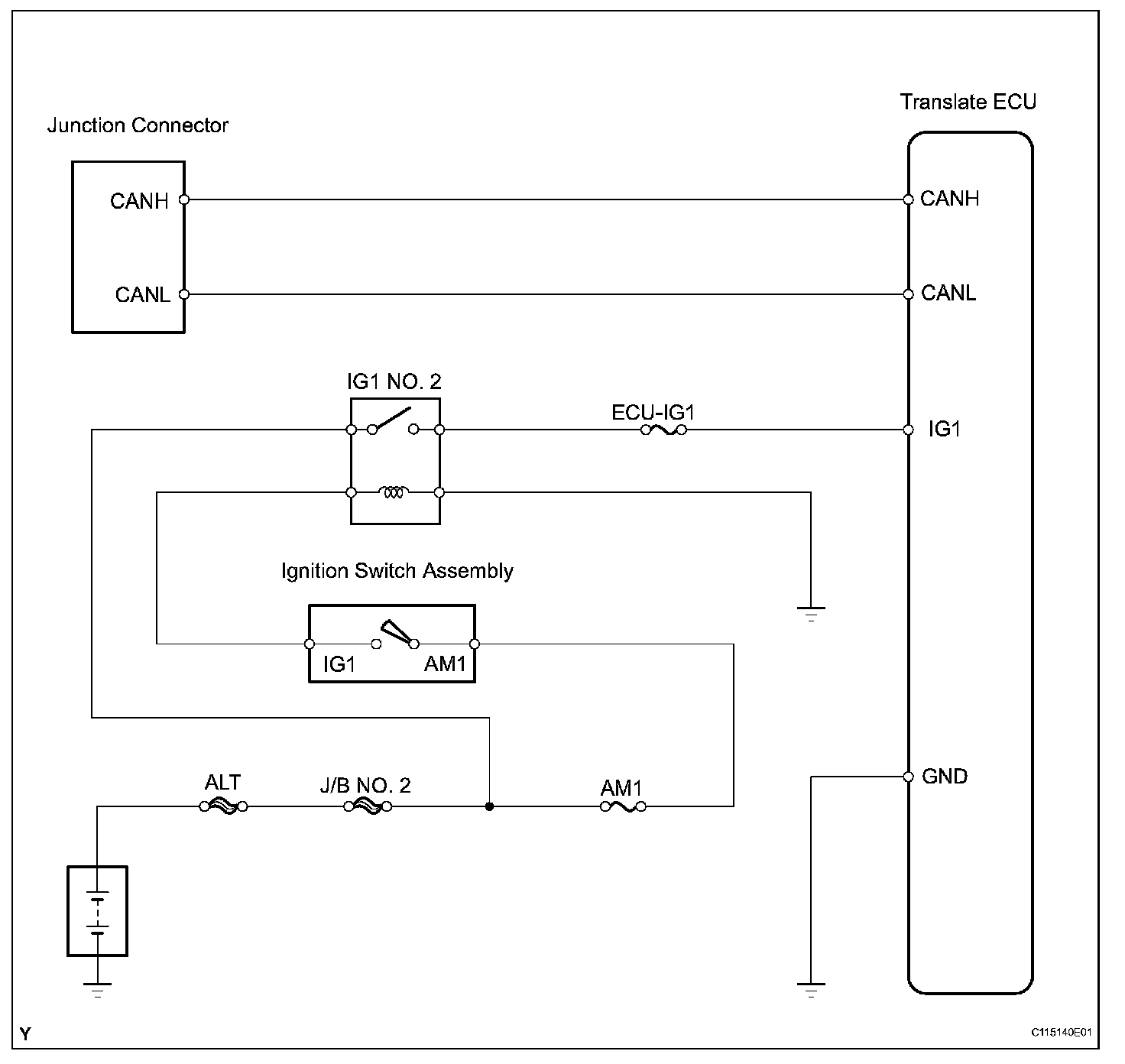

Wiring Diagram:

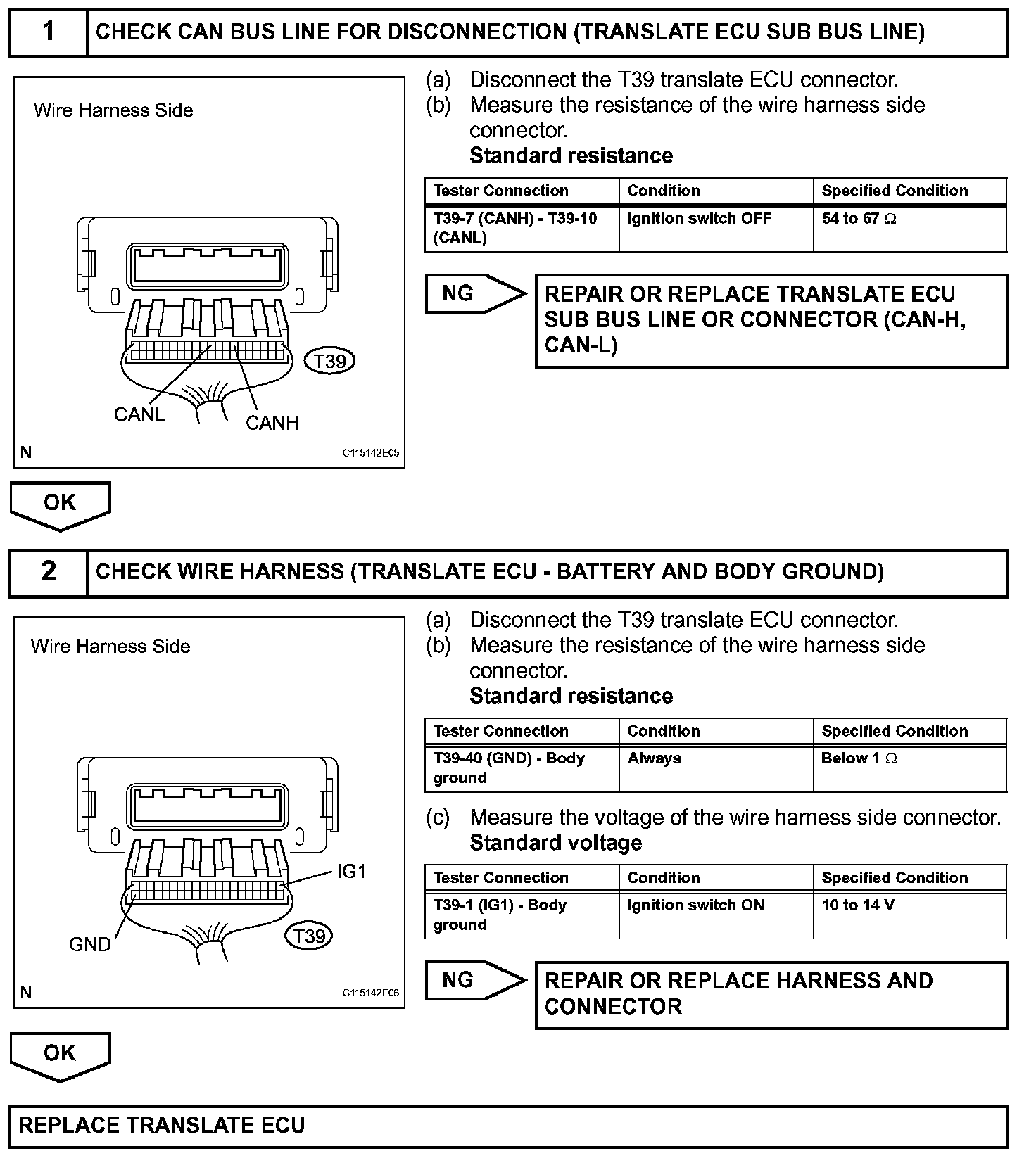

Step 1-2:




INSPECTION PROCEDURE
