Multiplex Communication System

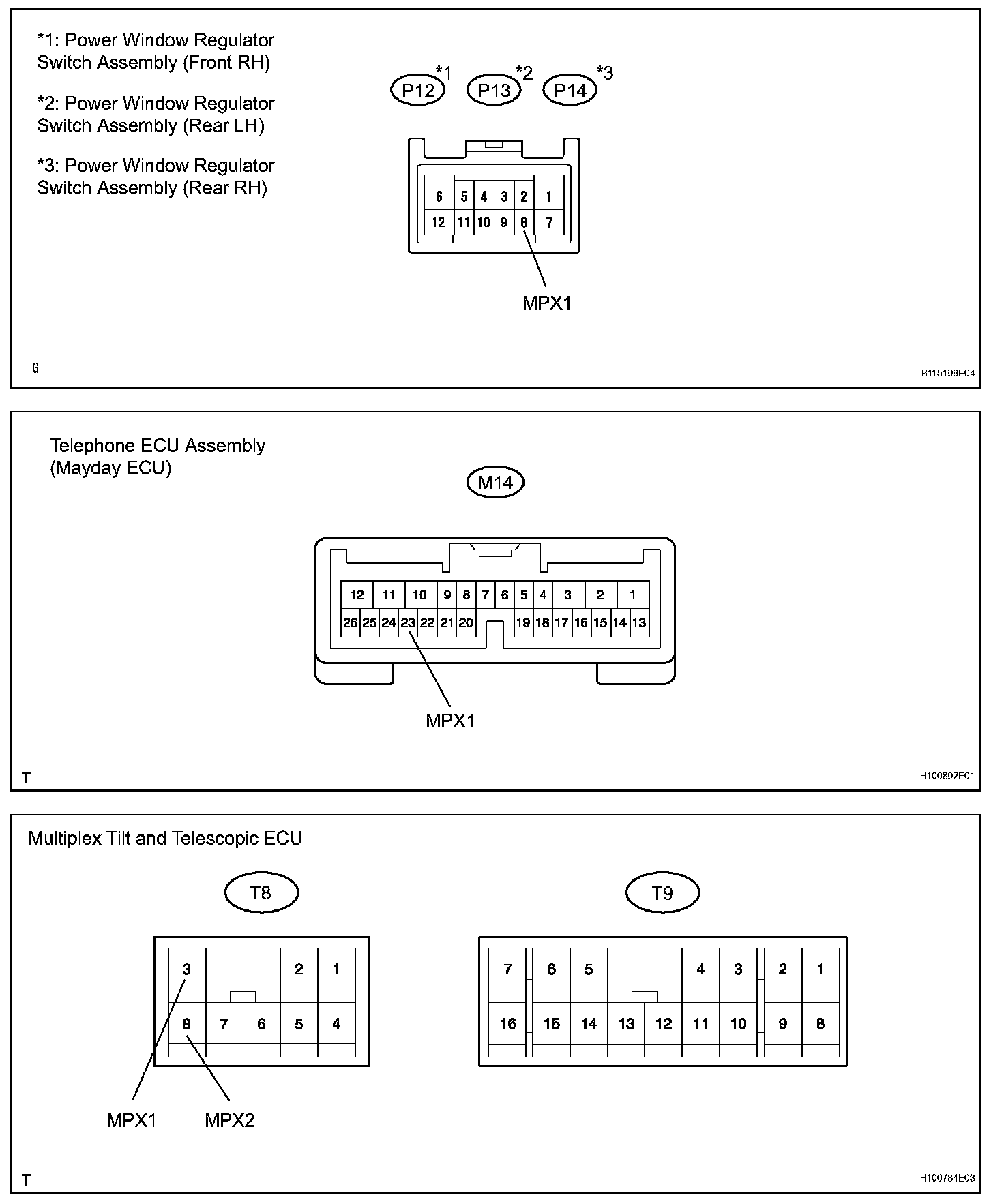

Terminals Of Control Module/Pinouts (Part 1):

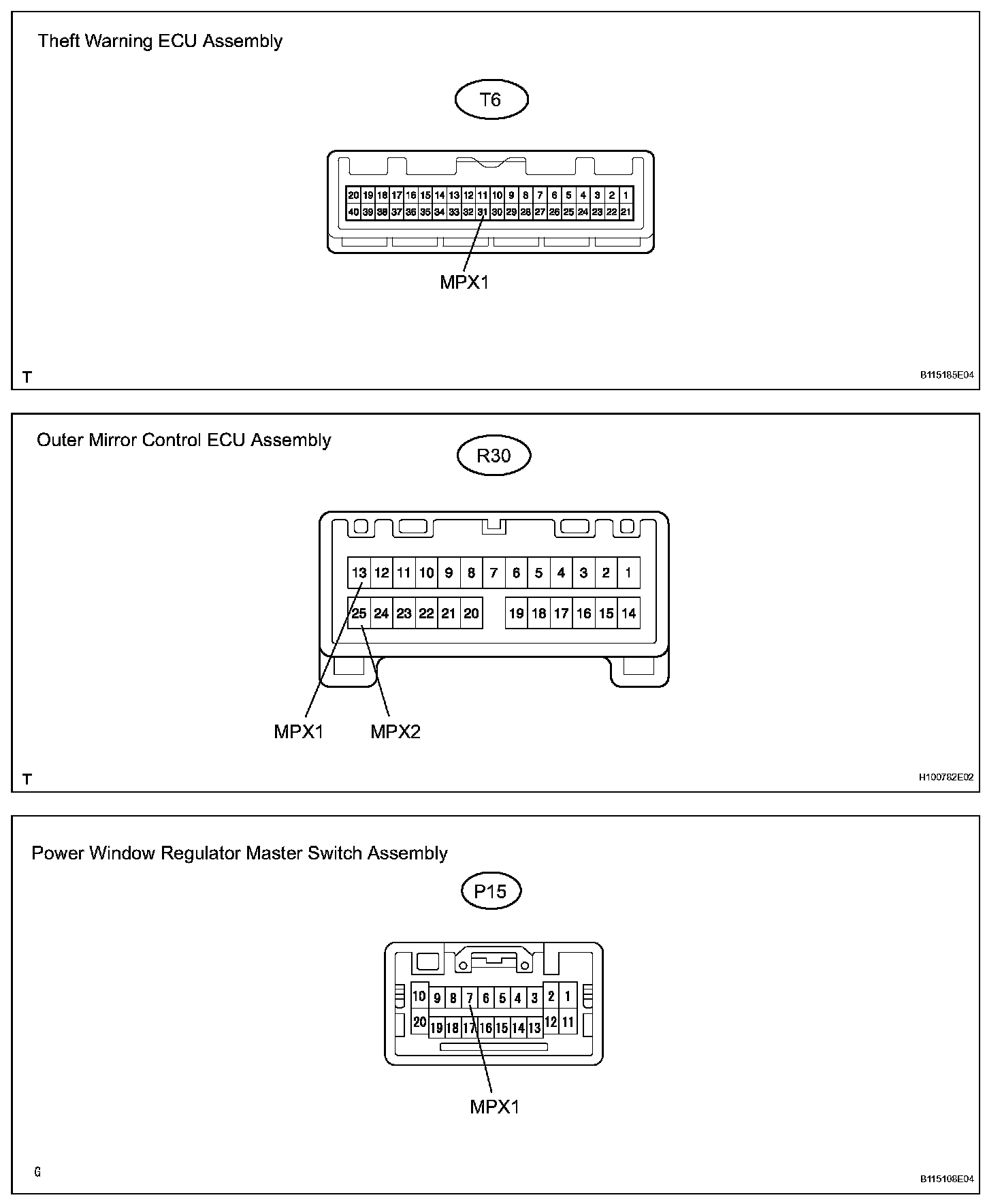

Terminals Of Control Module/Pinouts (Part 2):

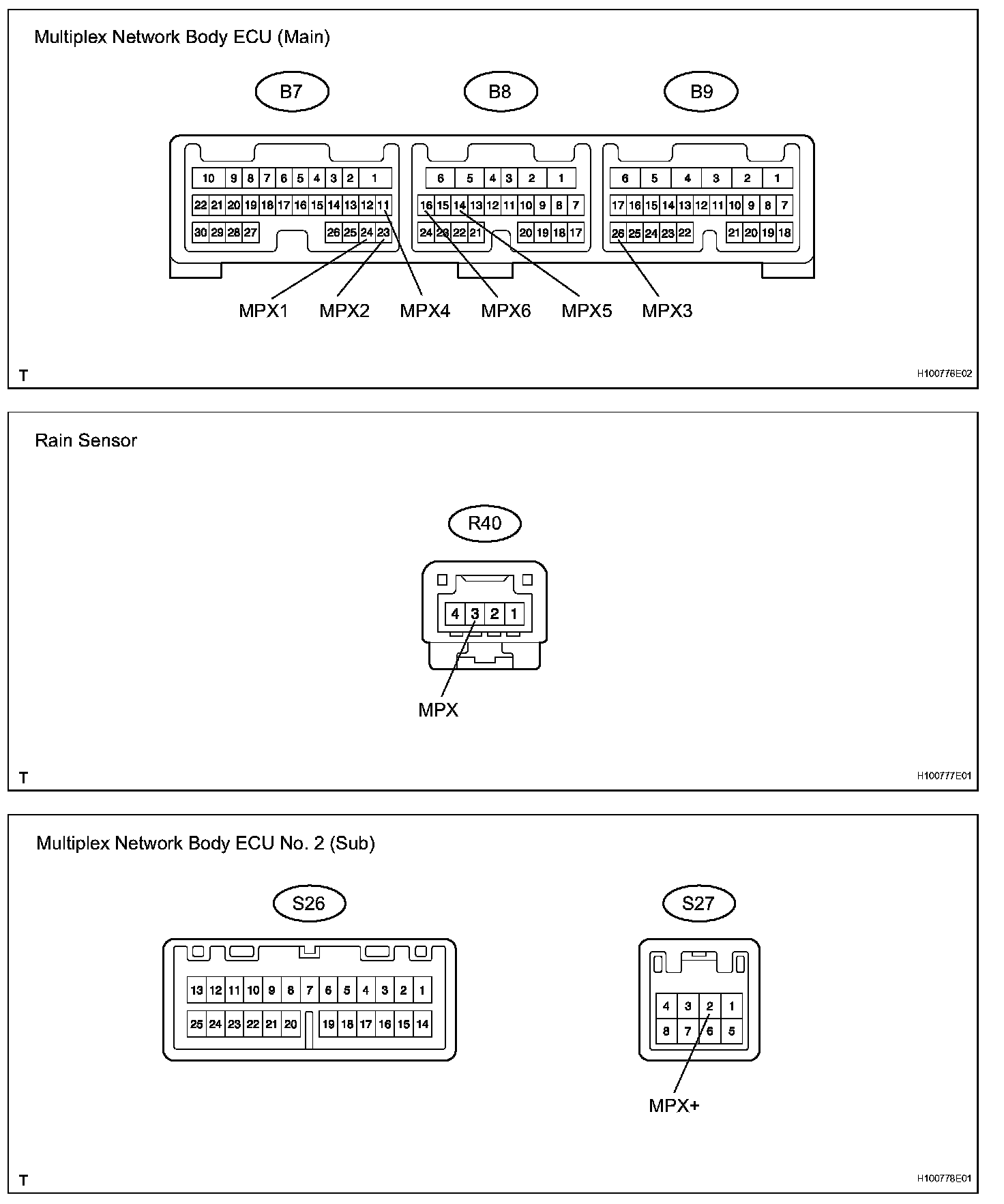

Terminals Of Control Module/Pinouts (Part 3):

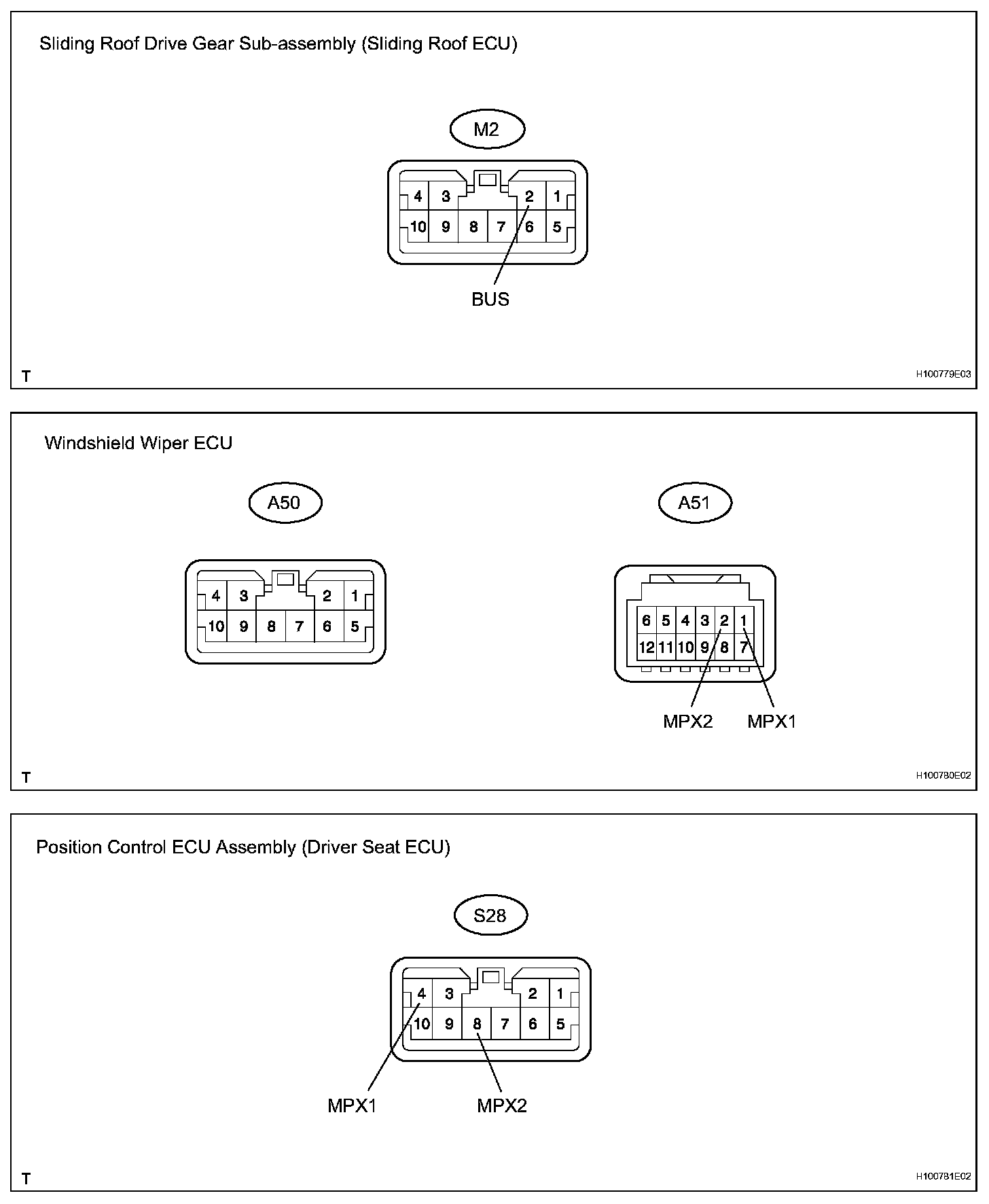

Terminals Of Control Module/Pinouts (Part 4):
