Accelerator Pedal Position Sensor: Components

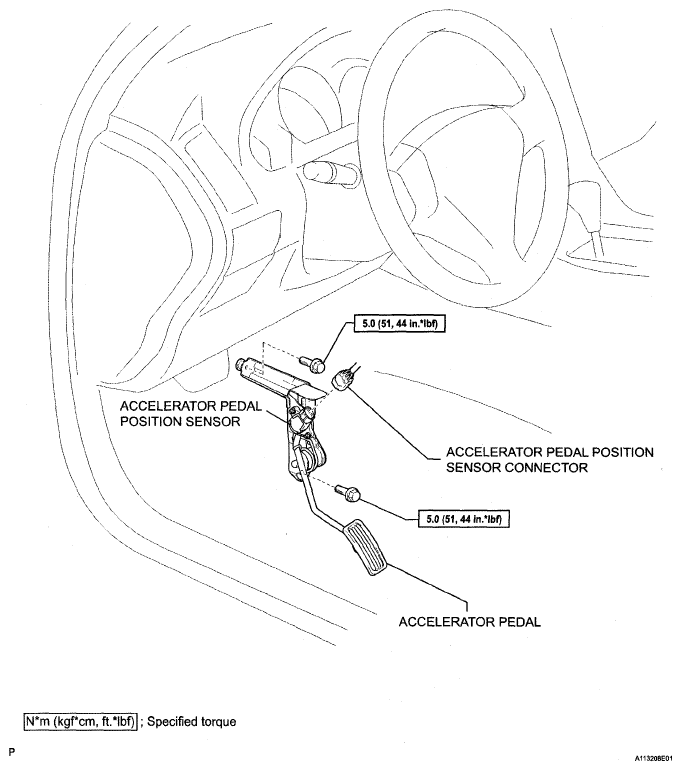

Fig 1: Accelerator Pedal Position Sensor Replacement Components With Torque Specifications
G05196955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
