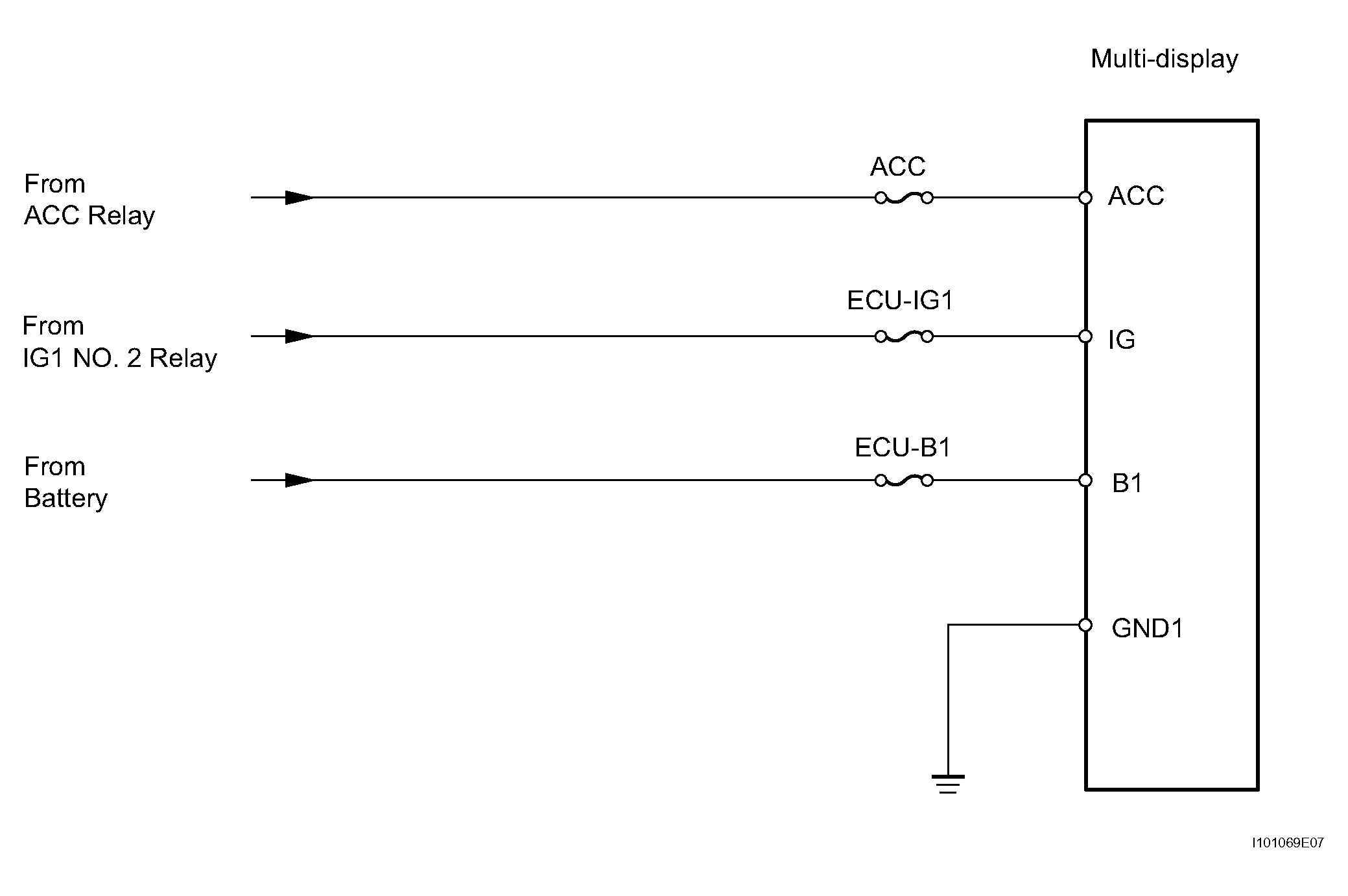

Multi-display Power Source Circuit: Wiring Diagram
- INSPECT FUSE (ACC, ECU-B1, ECU-IG)
- Remove the ACC, ECU-B1, ECU-IG fuses from the cowl side junction block LH.
- Measure the resistance of the fuses.
Standard resistance:
Below 1 Ω
NG: REPLACE FUSE
OK: Go To Next Step
- CHECK WIRE HARNESS (MULTI-DISPLAY - BATTERY AND BODY GROUND)

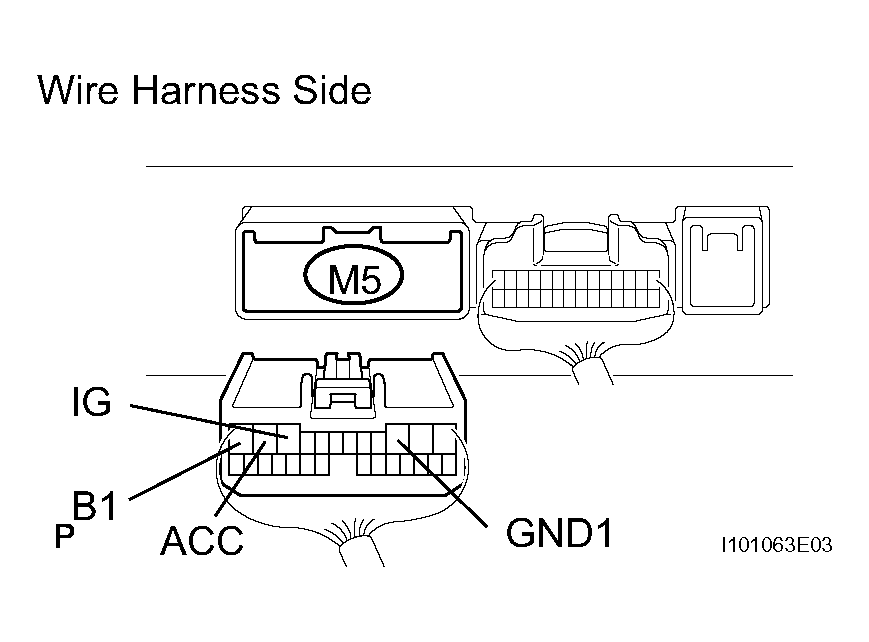

- Disconnect the M5 display connector.
- Measure the resistance of the wire harness side connector.
Standard resistance
TESTER CONNECTION AND SPECIFIED CONDITION CHARTTester Connection Specified Condition M5-3 (GND1) - Body ground Below 1 Ω - Measure the voltage of the wire harness side connector.
Standard voltage
TESTER CONNECTION AND SPECIFIED CONDITION CHARTTester Connection Condition Specified Condition M5-11 (ACC) - M5-3 (GND1) Ignition switch ACC 10 to 14 V M5-10 (IG) - M5-3 (GND1) Ignition switch ON 10 to 14 V M5-12 (B1) - M5-3 (GND1) Always 10 to 14 V NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
