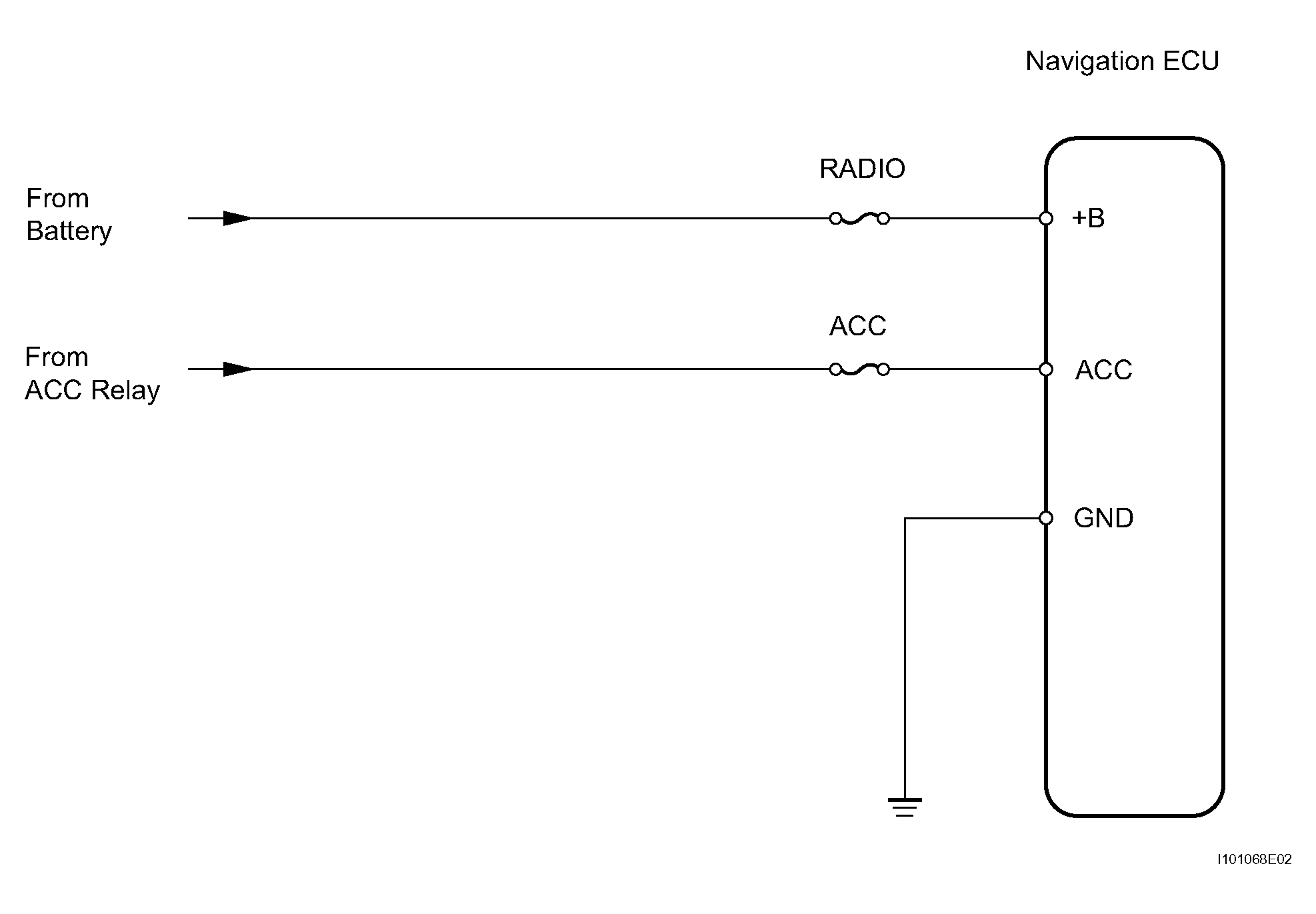

Navigation ECU Power Source Circuit: Wiring Diagram
- INSPECT FUSE (ACC, RADIO)
- Remove the ACC fuse from the cowl side junction block LH.
- Remove the RADIO fuse from the cowl side junction block RH.
- Measure the resistance of the fuses.
Standard resistance:
Below 1 Ω
NG: REPLACE FUSE
OK: Go To Next Step
- CHECK WIRE HARNESS (NAVIGATION ECU - BATTERY AND BODY GROUND)

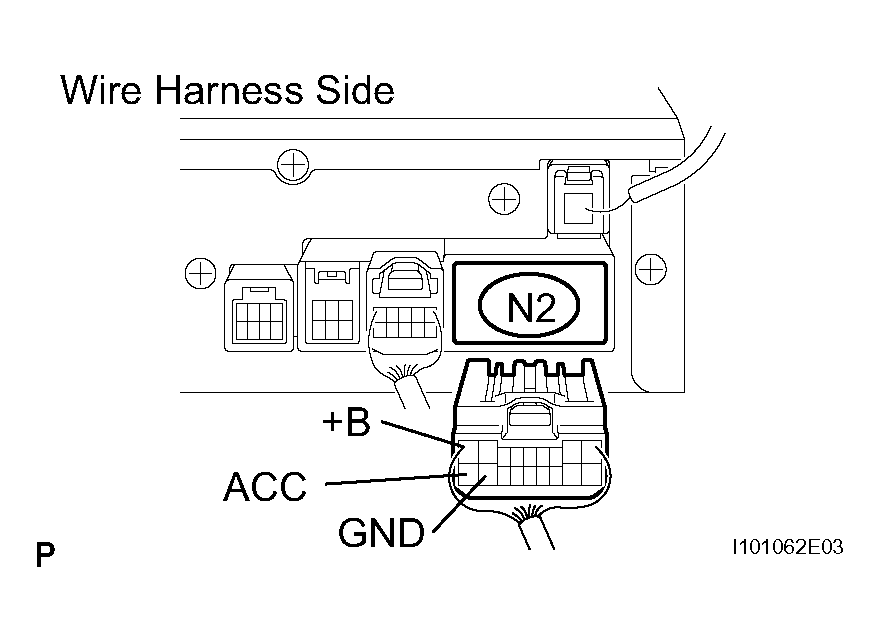

- Disconnect the N2 ECU connector.
- Measure the resistance of the wire harness side connector.
Standard resistance
TESTER CONNECTION AND SPECIFIED CONDITION CHARTTester Connection Specified Condition N2-17 (GND) - Body ground Below 1 Ω - Measure the voltage of the wire harness side connector.
Standard voltage
TESTER CONNECTION AND SPECIFIED CONDITION CHARTTester Connection Condition Specified Condition N2-9 (+B) - N2-17 (GND) Always 10 to 14 V N2-18 (ACC) - N2-17 (GND) Ignition switch ACC 10 to 14 V NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
