VSC OFF Indicator Light Circuit: Wiring Diagram

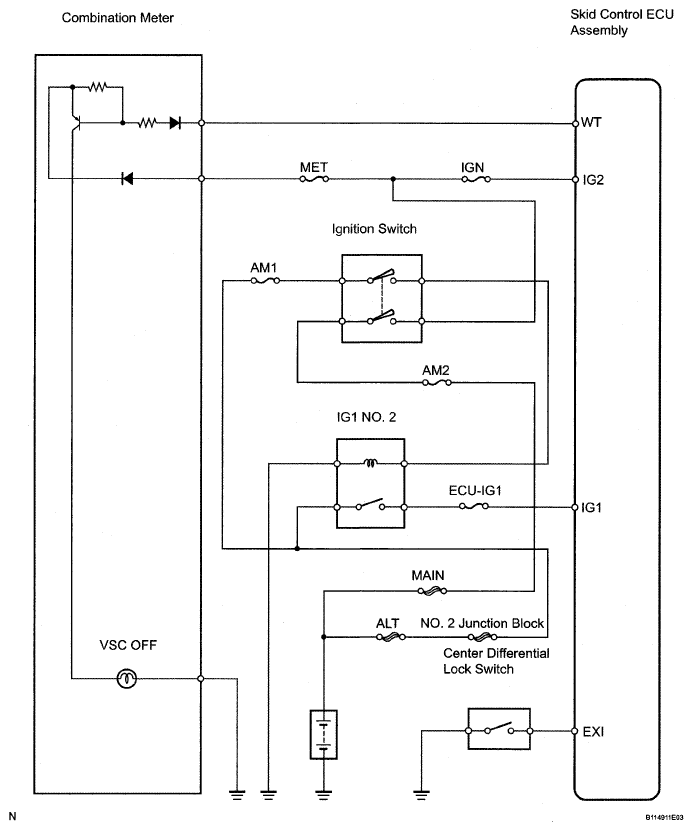

Fig 1: VSC OFF Indicator Light - Wiring Diagram
G05197674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
