OEM General Information: Preparation: Brake: SST
BRAKE - SPECIAL TOOL SPECIFICATION
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

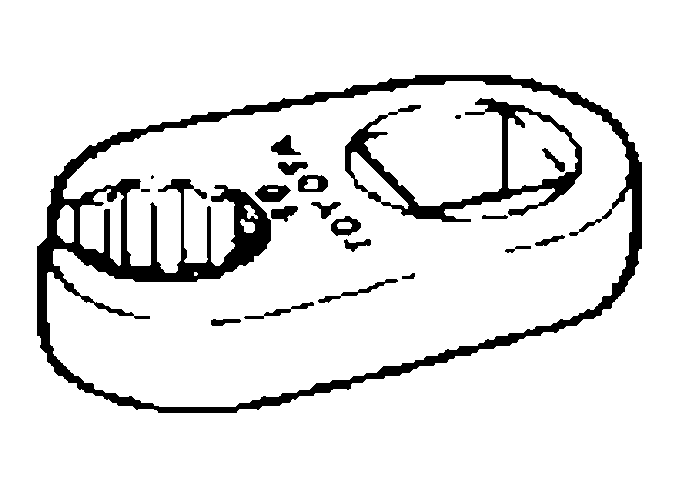

09023-00101 |
Union Nut Wrench 10 mm |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

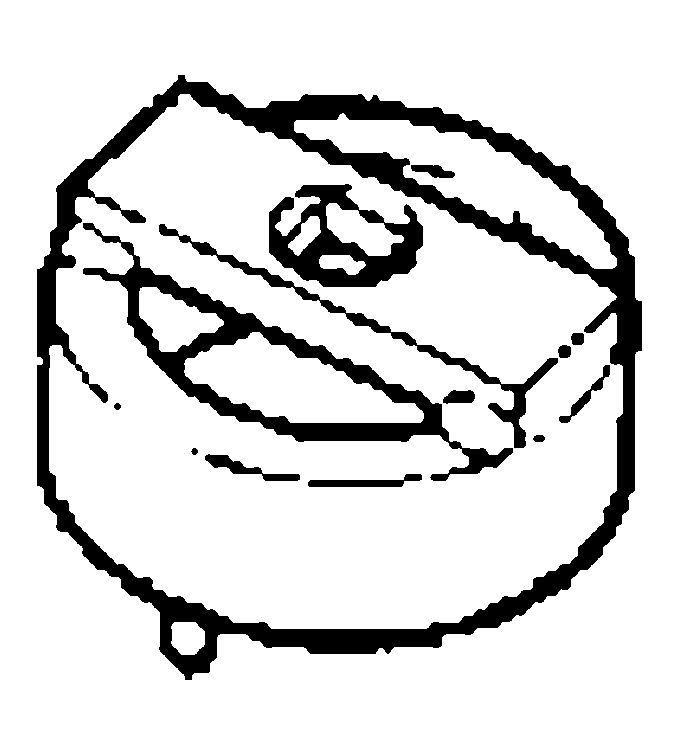

09318-12010 |
Transfer Bearing Adjusting Nut Wrench |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
09630-00014 |
Power Steering Gear Housing Overhaul Tool Set |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
(09631-00142) |

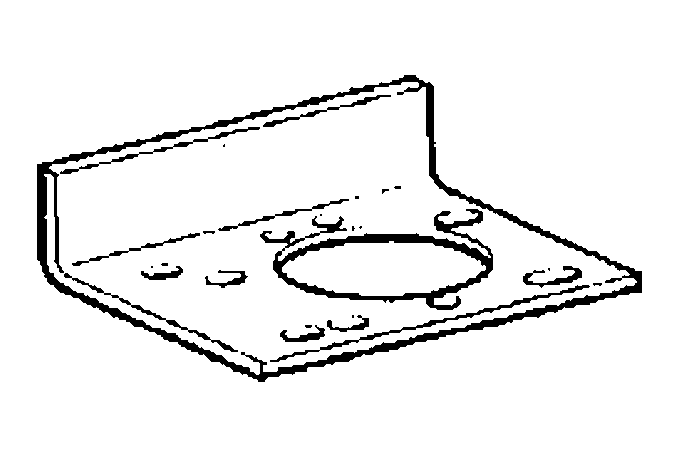

Overhaul Stand |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
09709-29018 |

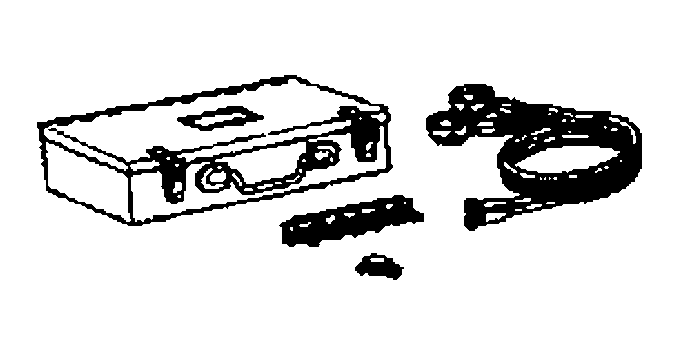

LSPV Gauge Set |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

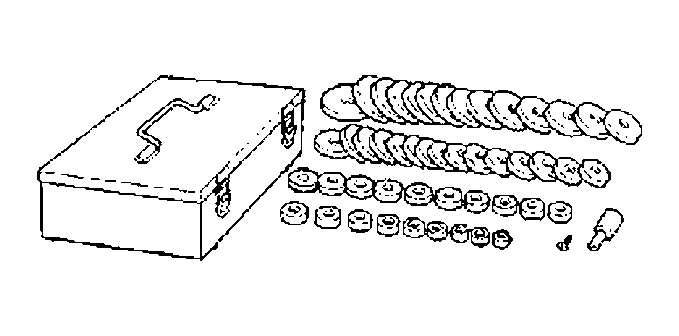

09950-60010 |

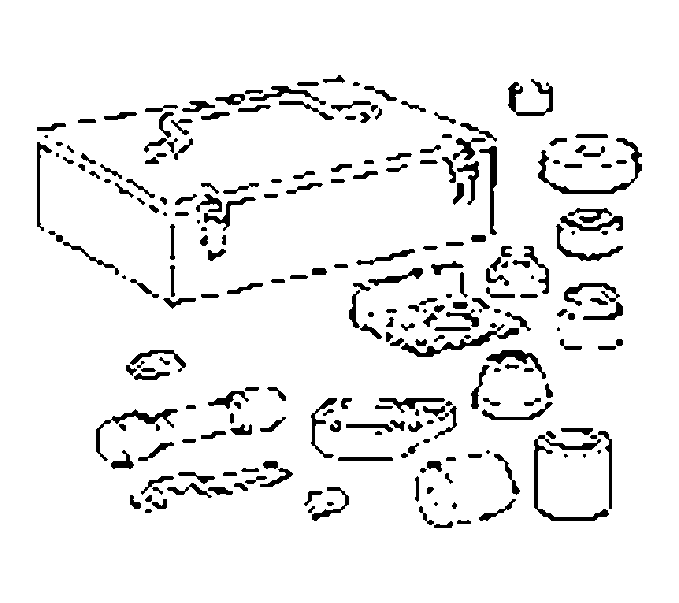

Replacer Set |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
(09951-00180) |

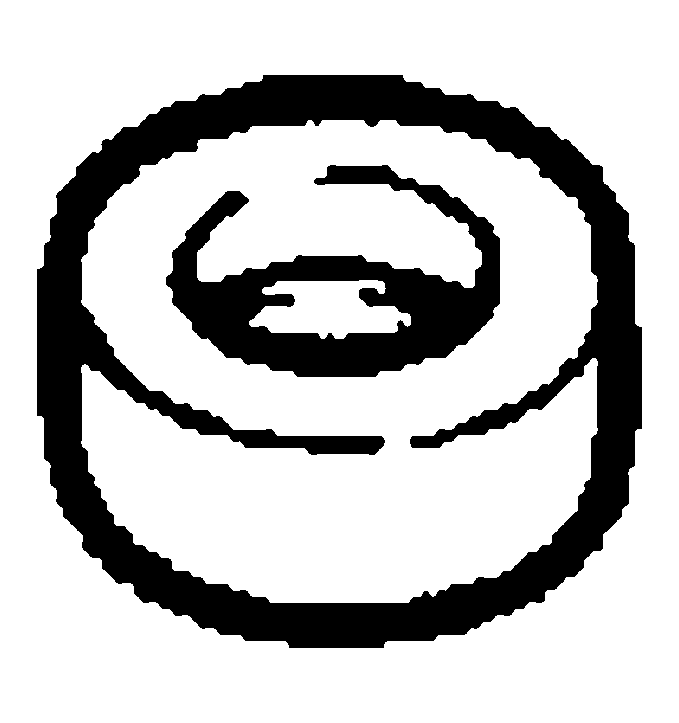

Replacer 18 |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
(09951-00190) |

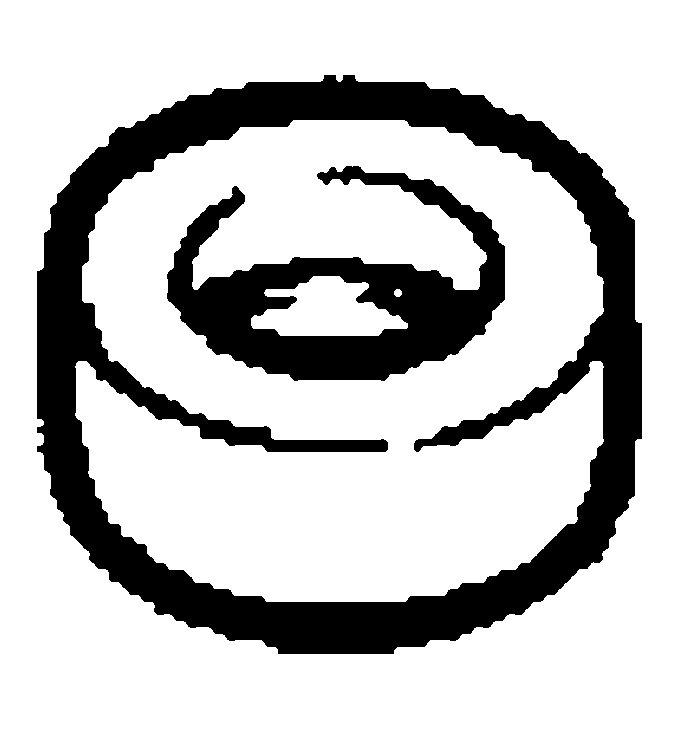

Replacer 19 |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
09990-00150 |

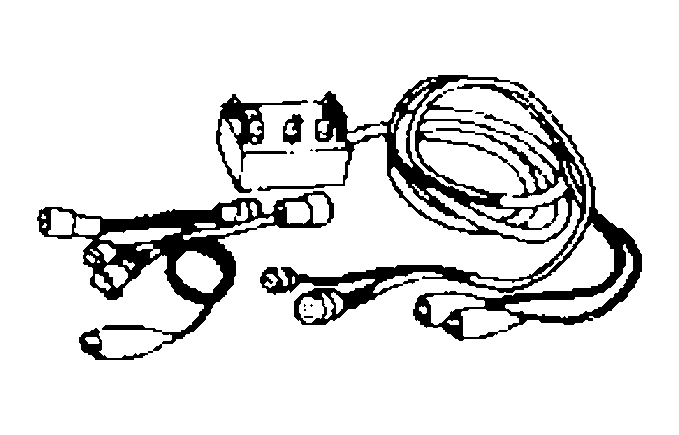

ABS Actuator Checker and Sub-harness |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
09990-00240 |

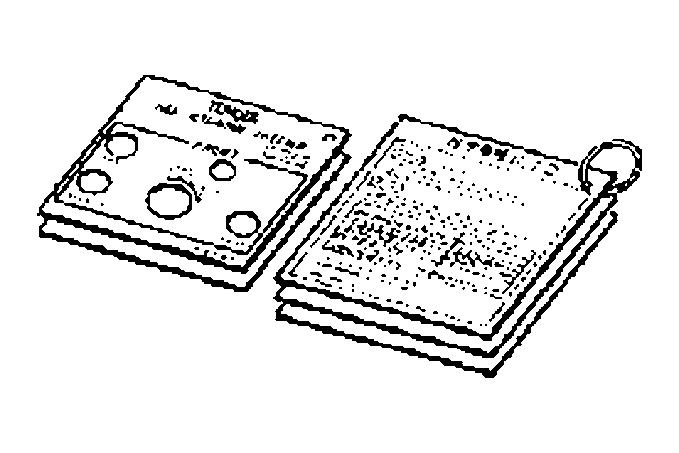

ABS Actuator Checker Sheet G |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
09990-00480 |

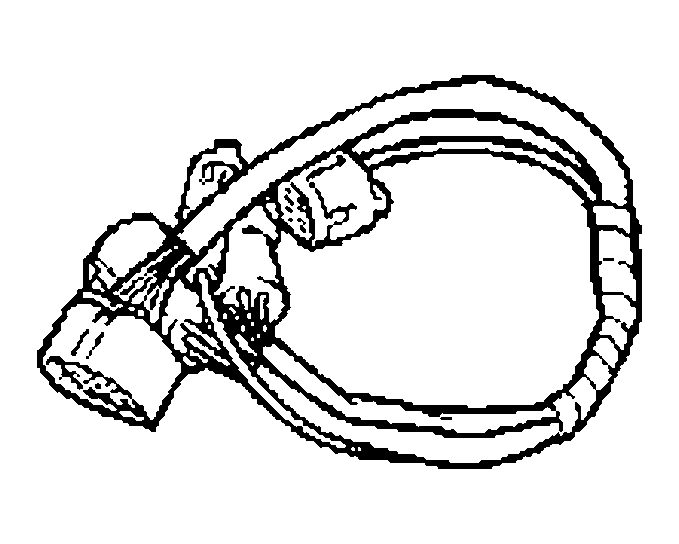

ABS Actuator Checker Sub-harness S |
- |
