Engine Control Module

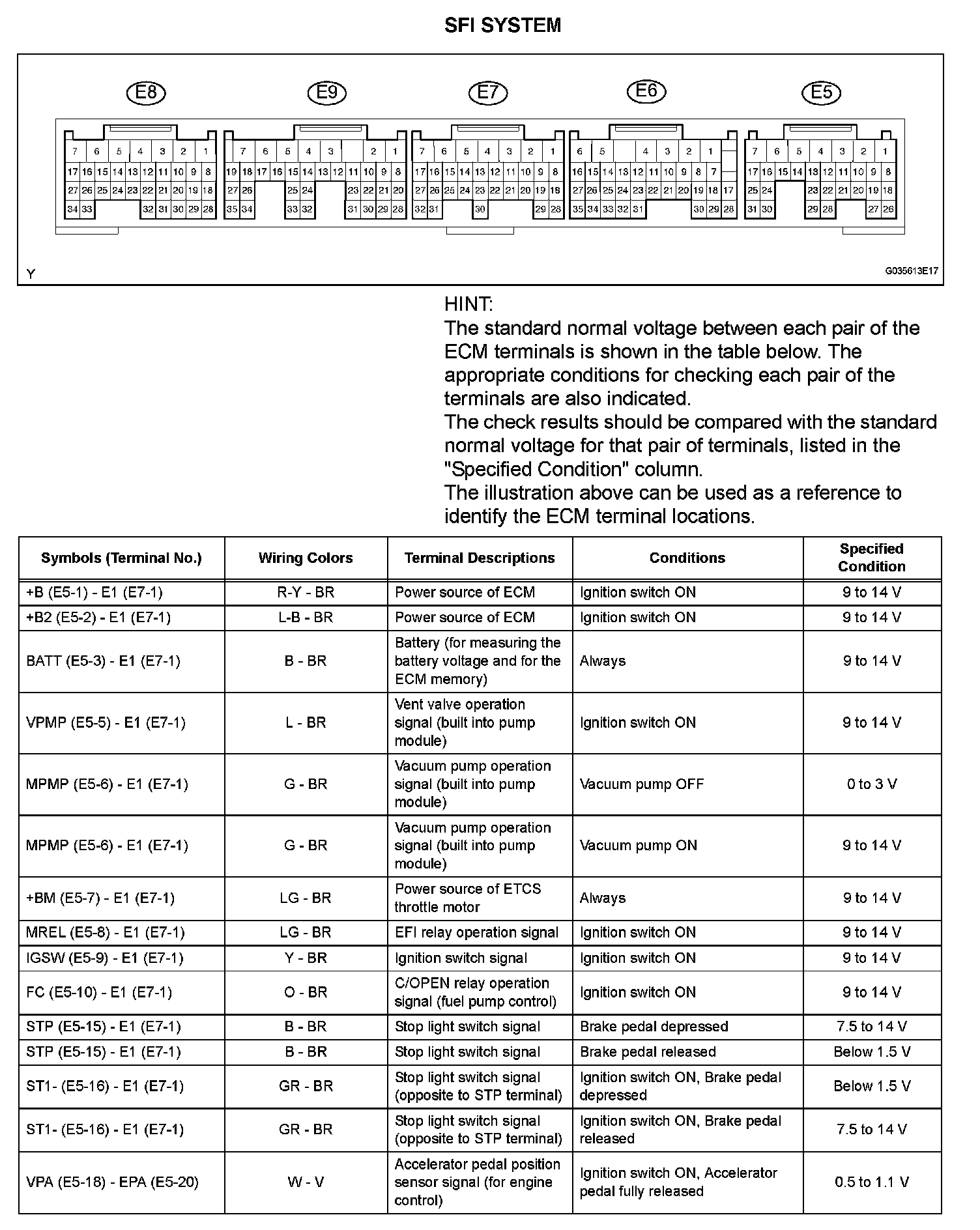

Terminals Of Control Module/pinouts (Part 1):

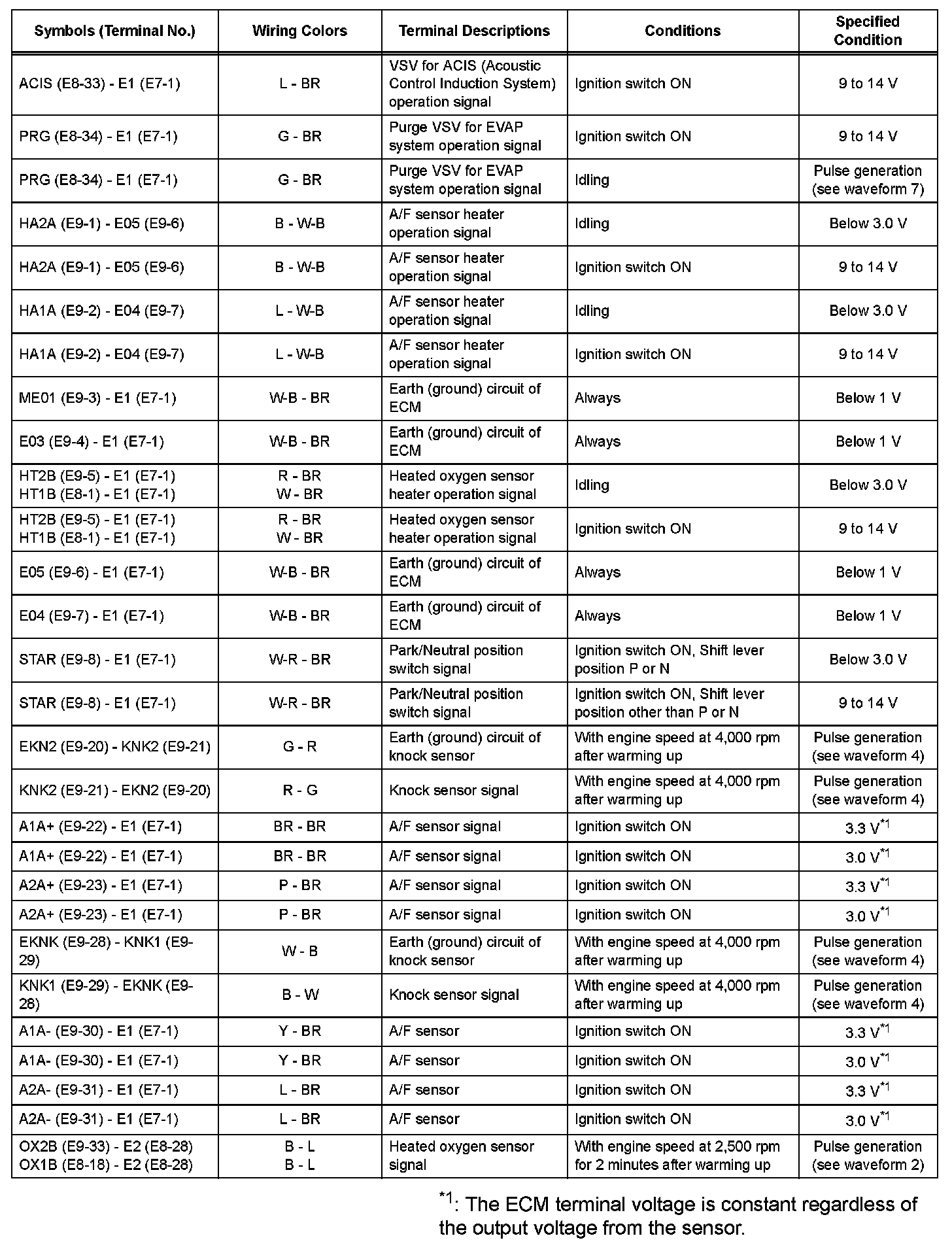

Terminals Of Control Module/pinouts (Part 2):

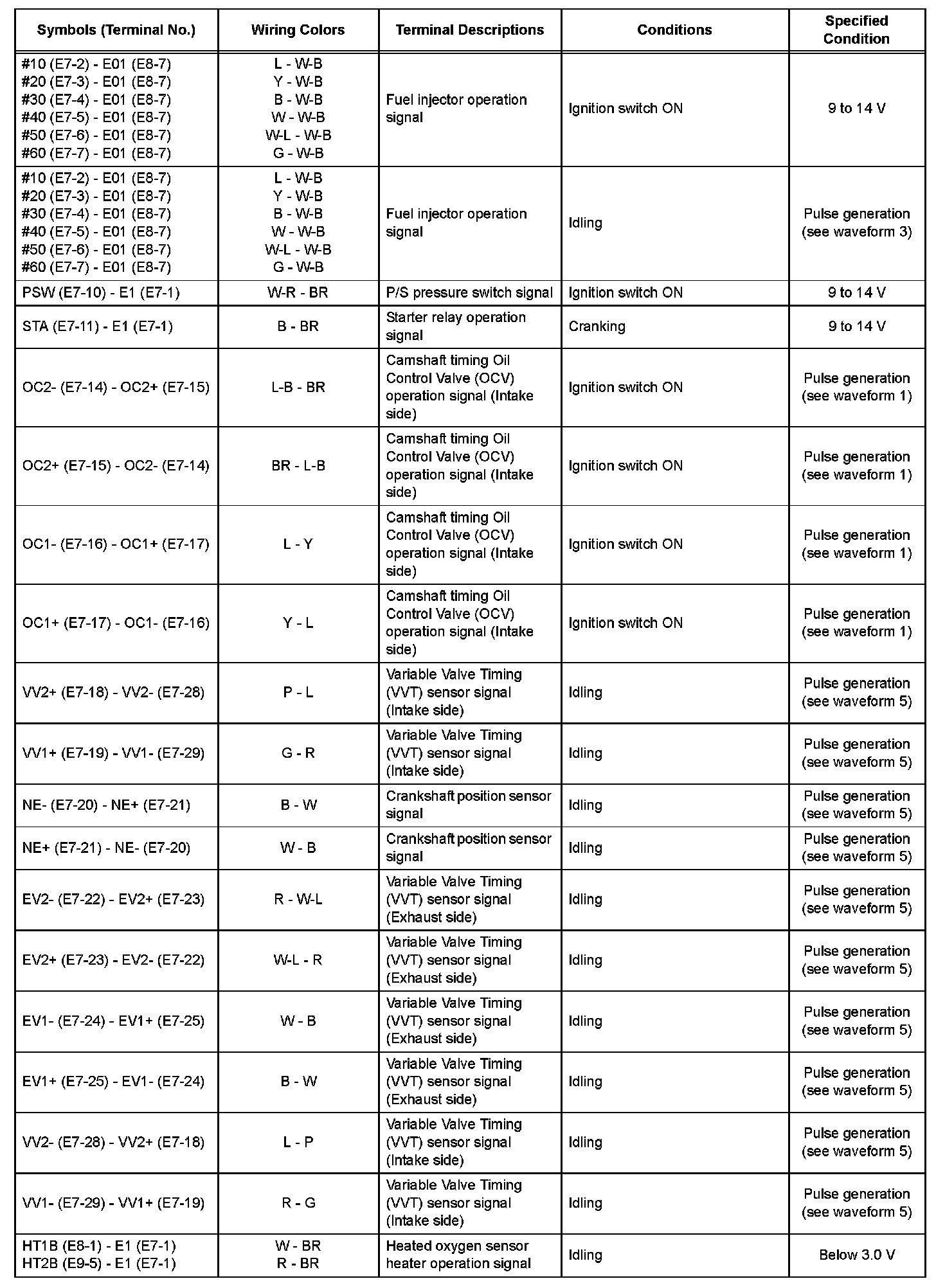

Terminals Of Control Module/pinouts (Part 3):

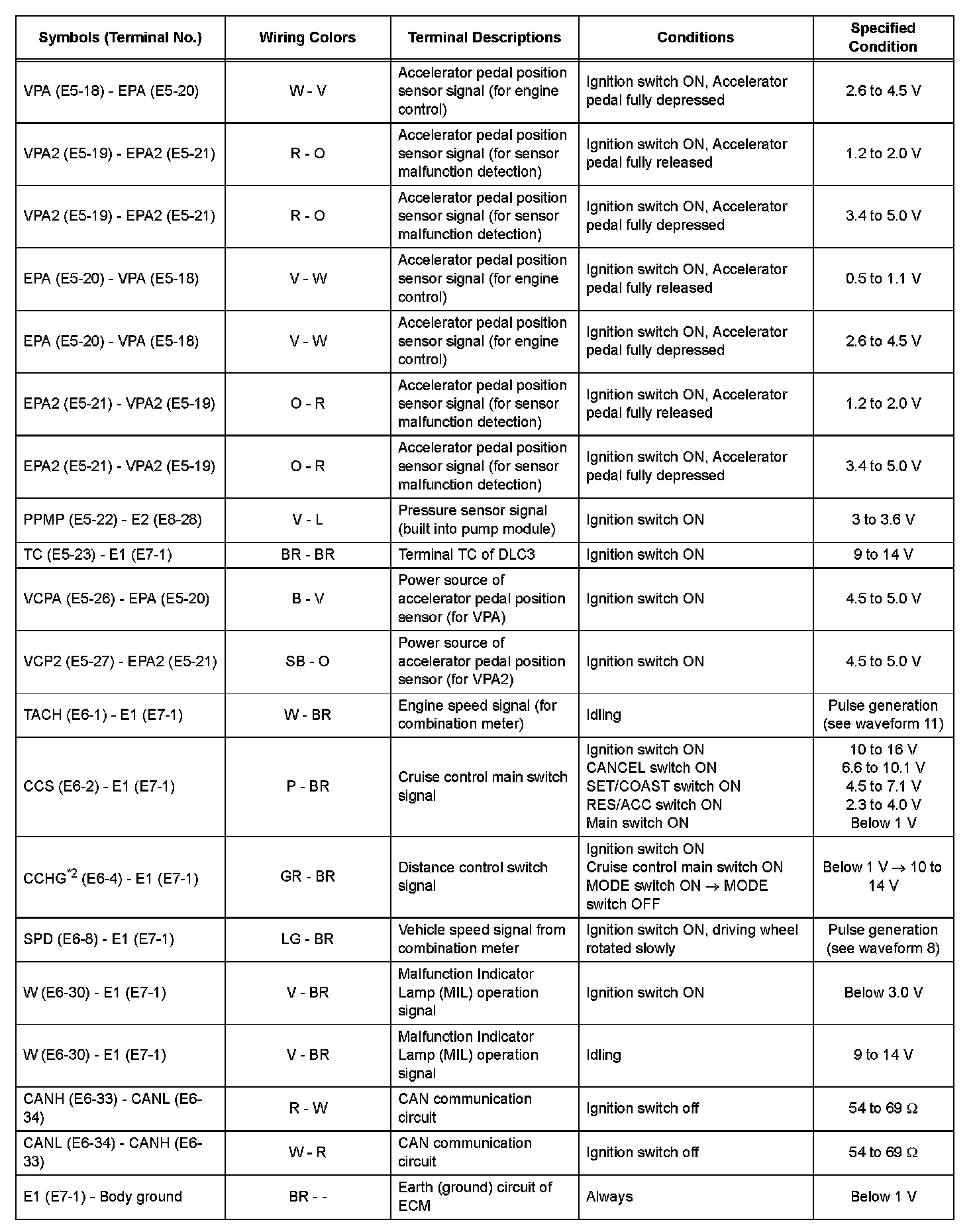

Terminals Of Control Module/pinouts (Part 4):

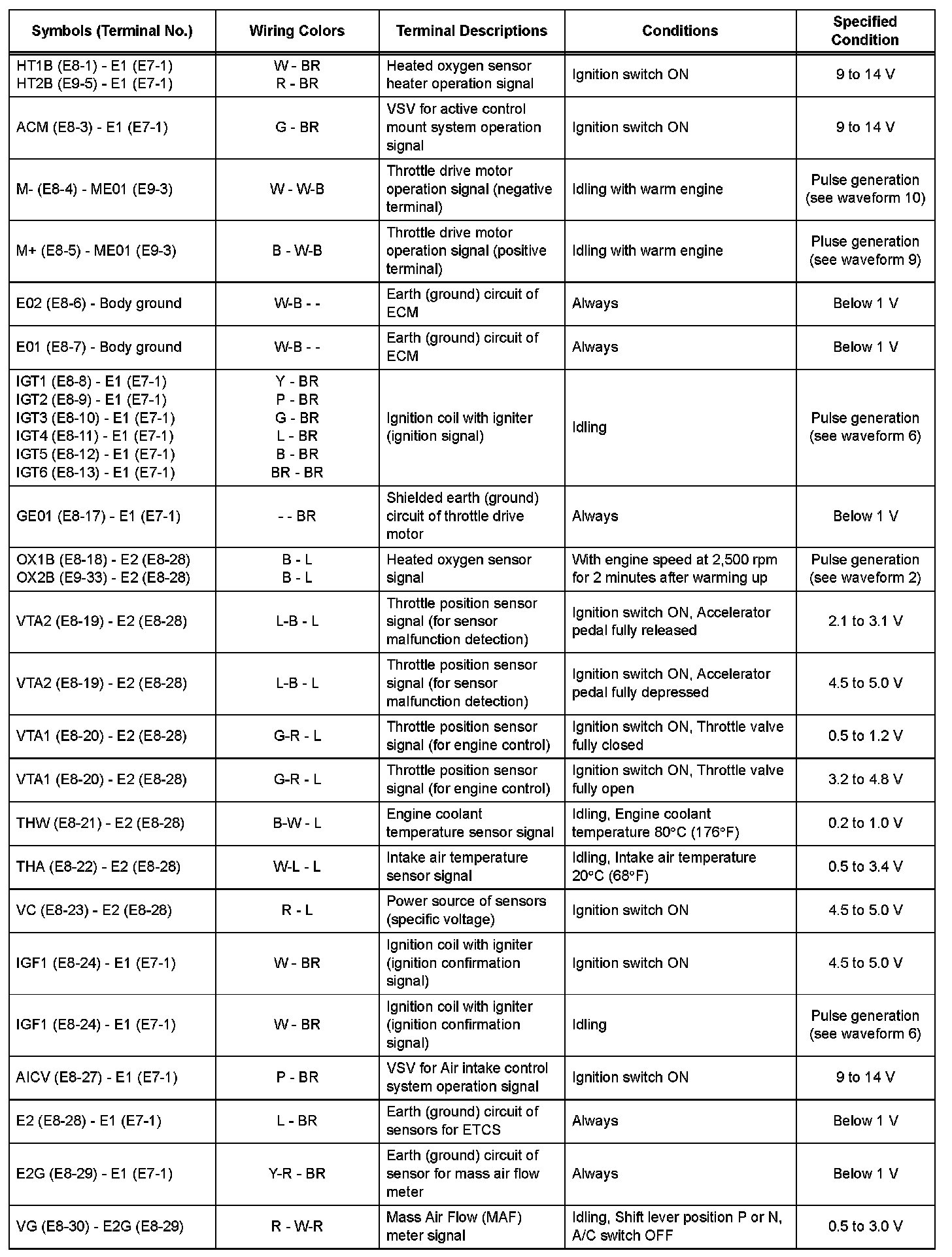

Terminals Of Control Module/pinouts (Part 5):

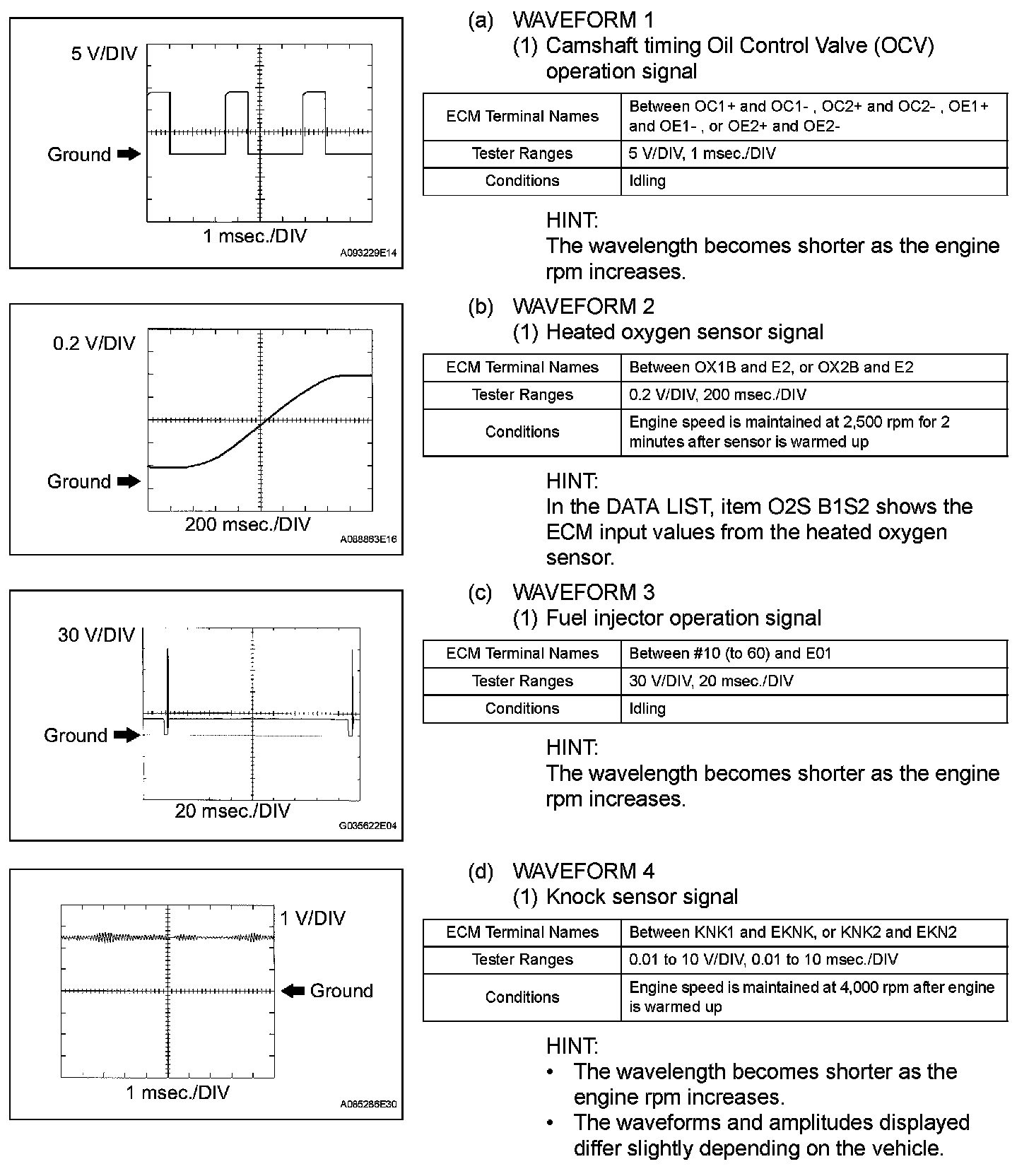

Oscilloscope Waveforms (Part 1):

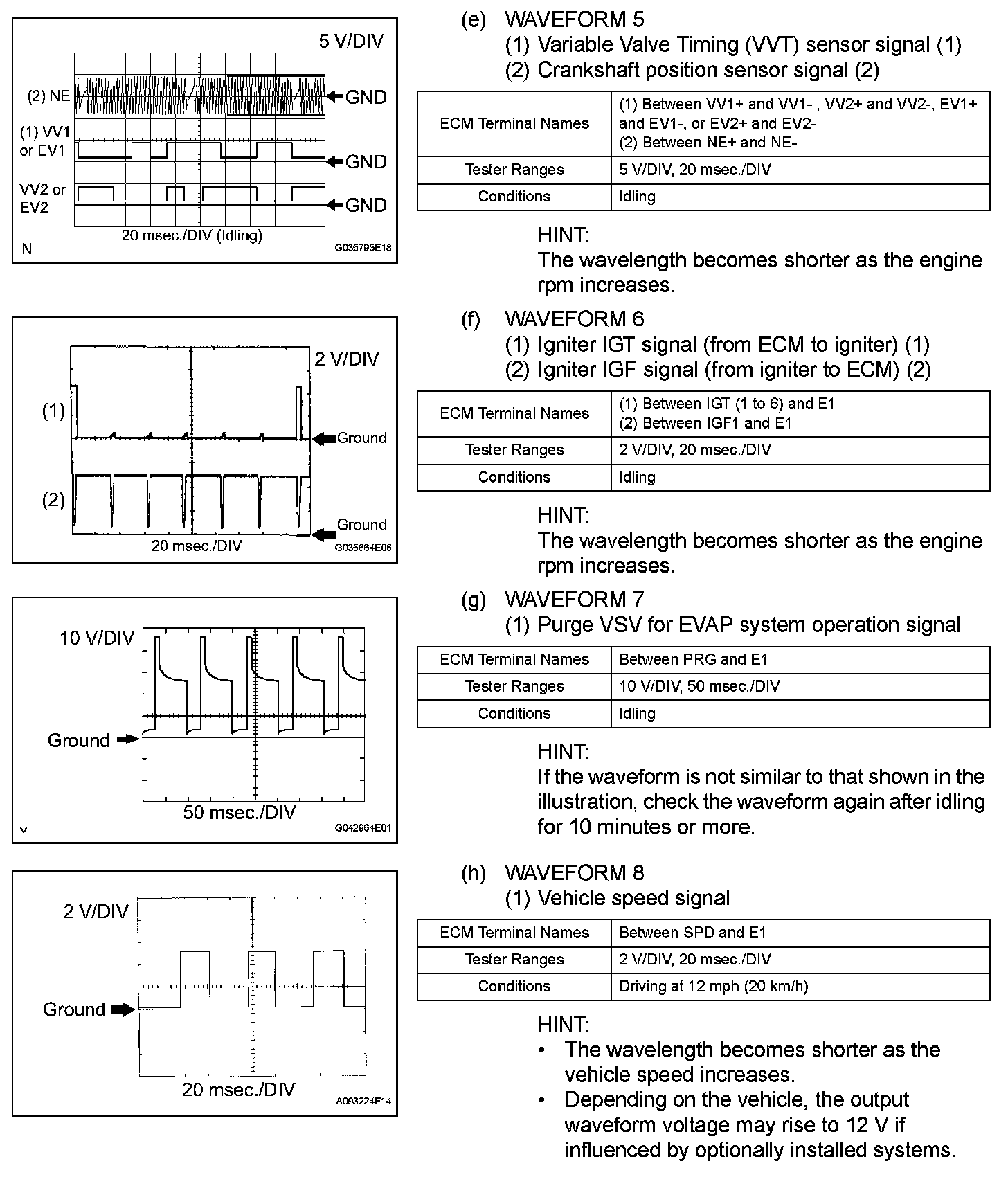

Oscilloscope Waveforms (Part 2):

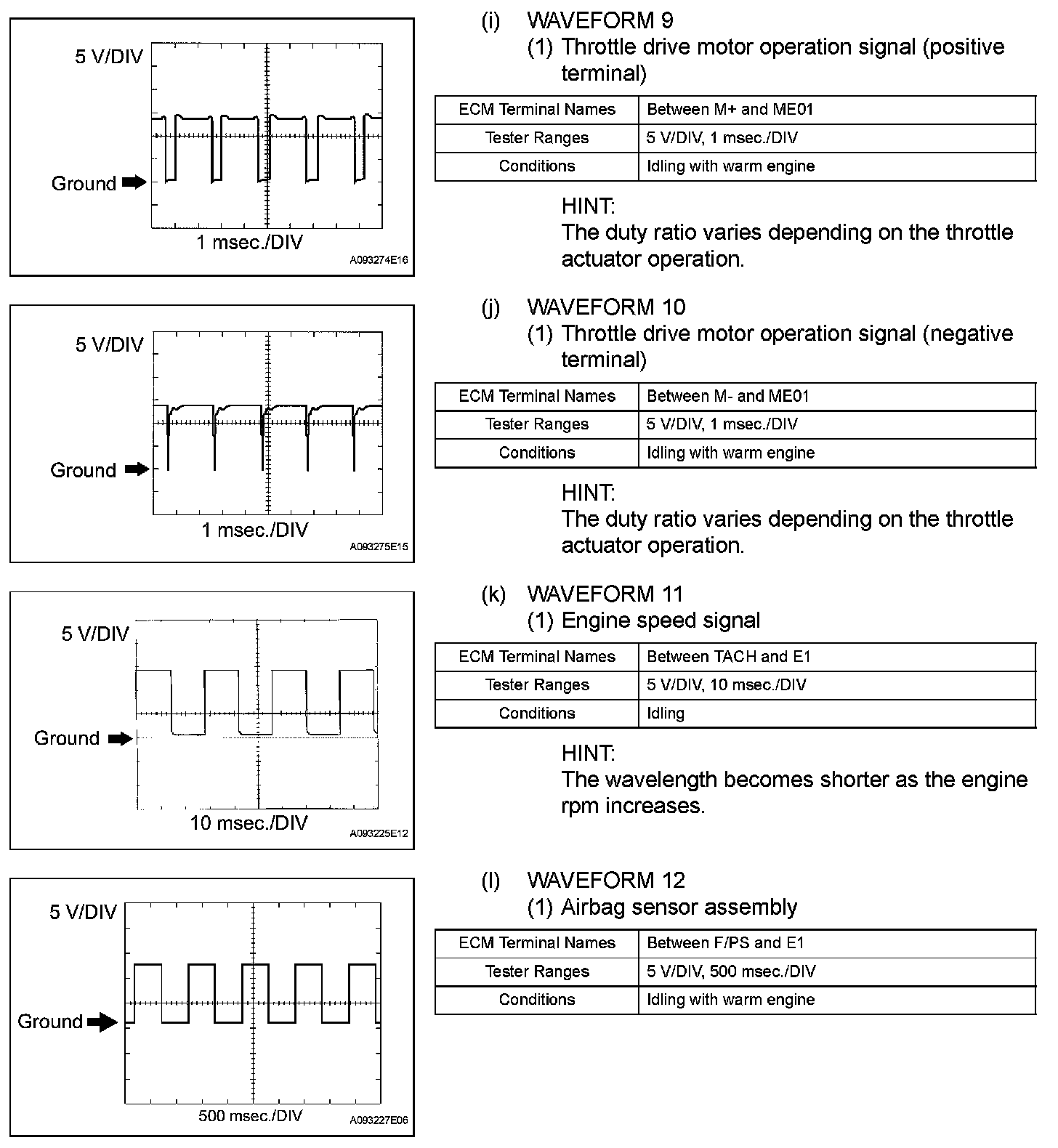

Oscilloscope Waveforms (Part 3):
