Automatic Transmission/Transaxle

AUTOMATIC TRANSAXLE ASSEMBLY

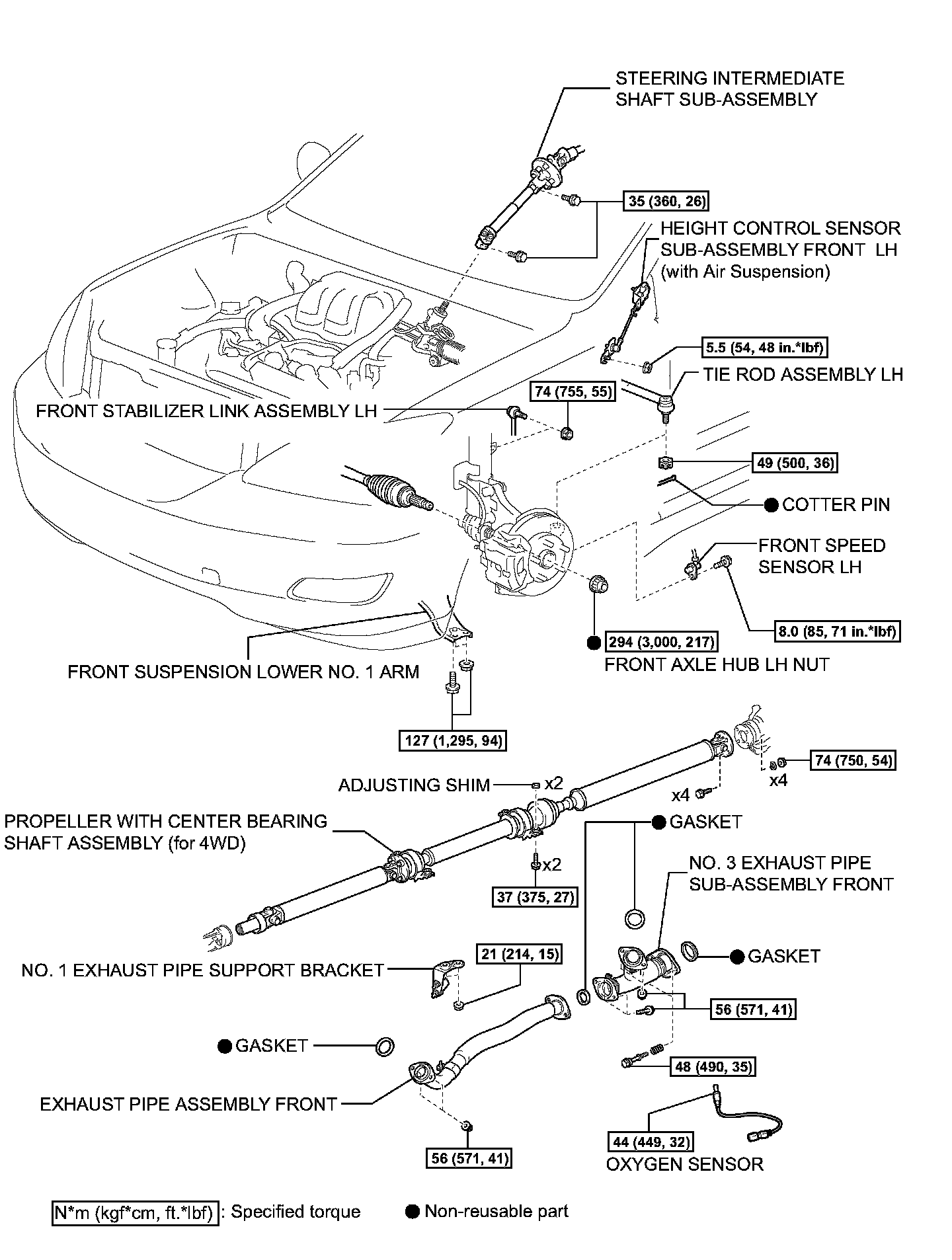

COMPONENTS (Part 1):

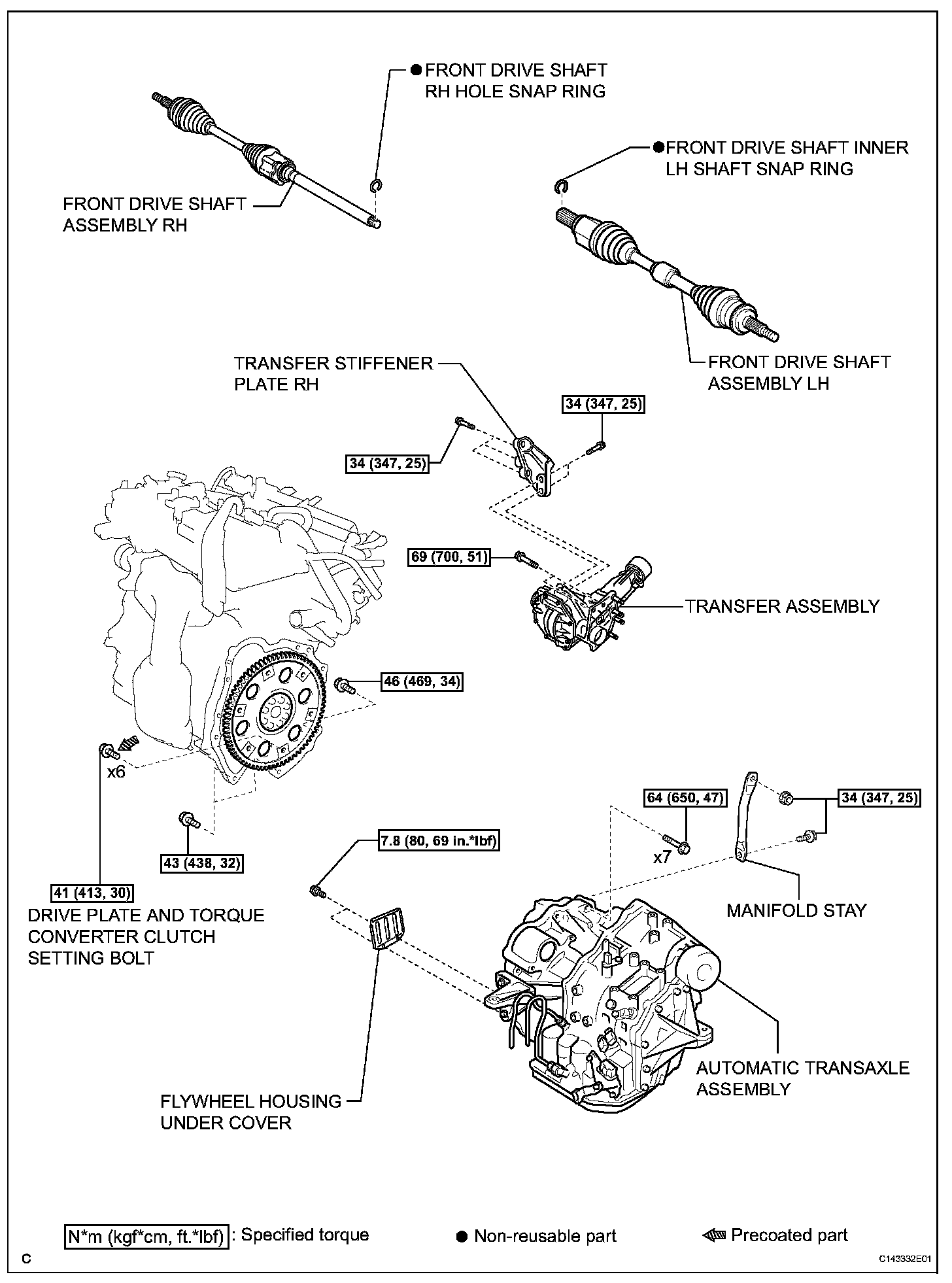

COMPONENTS (Part 2):

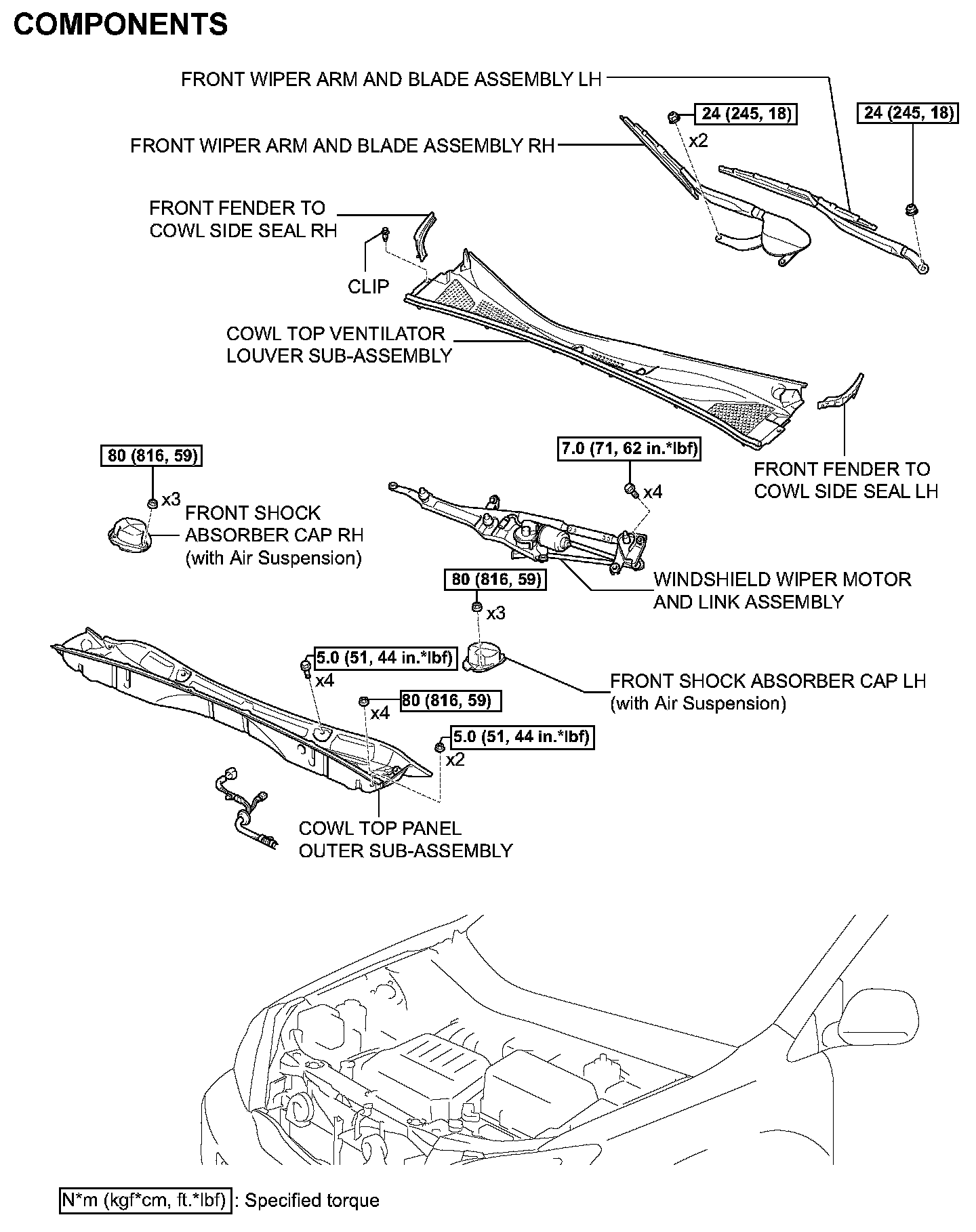

COMPONENTS (Part 3):

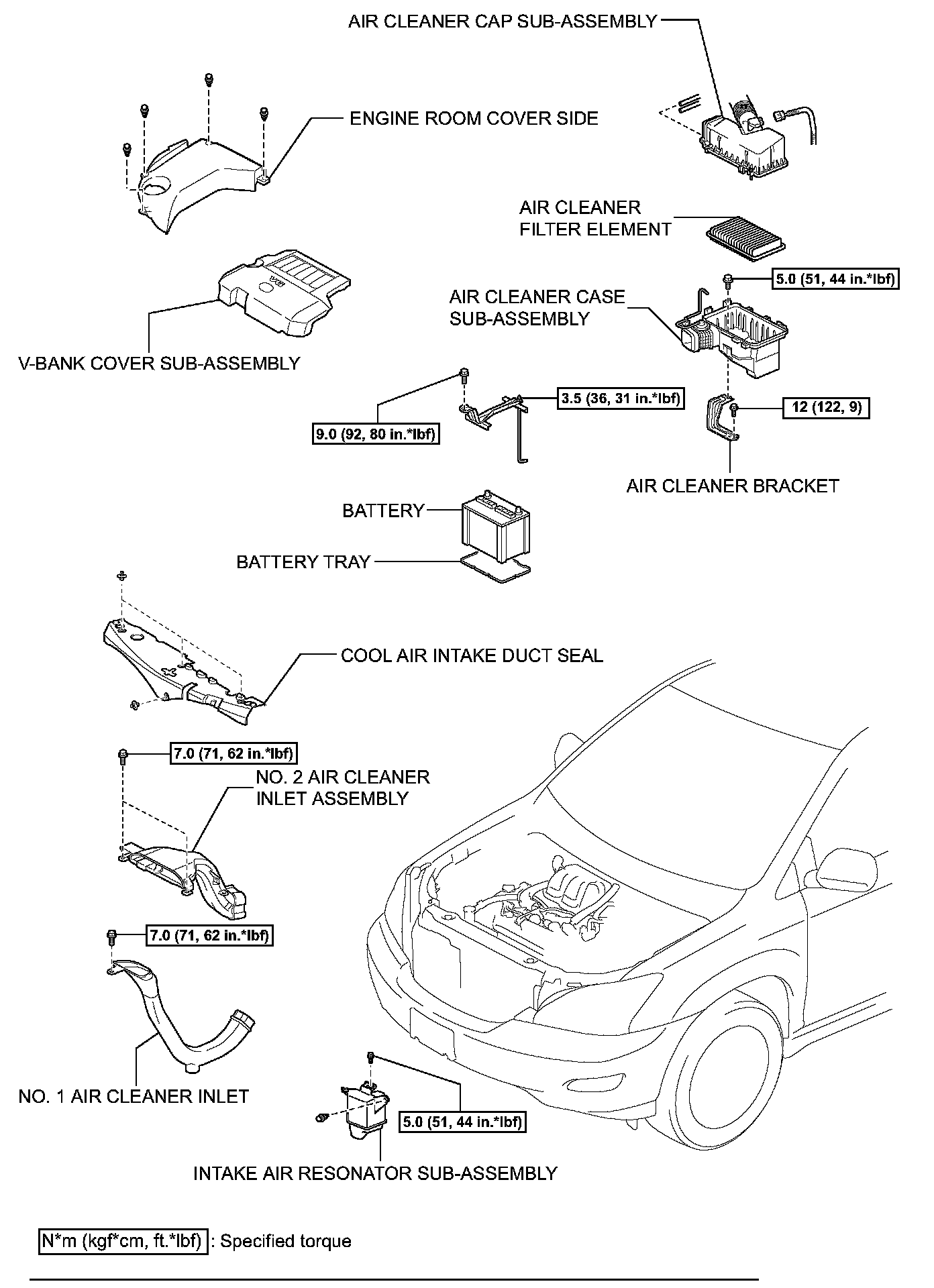

COMPONENTS (Part 4):

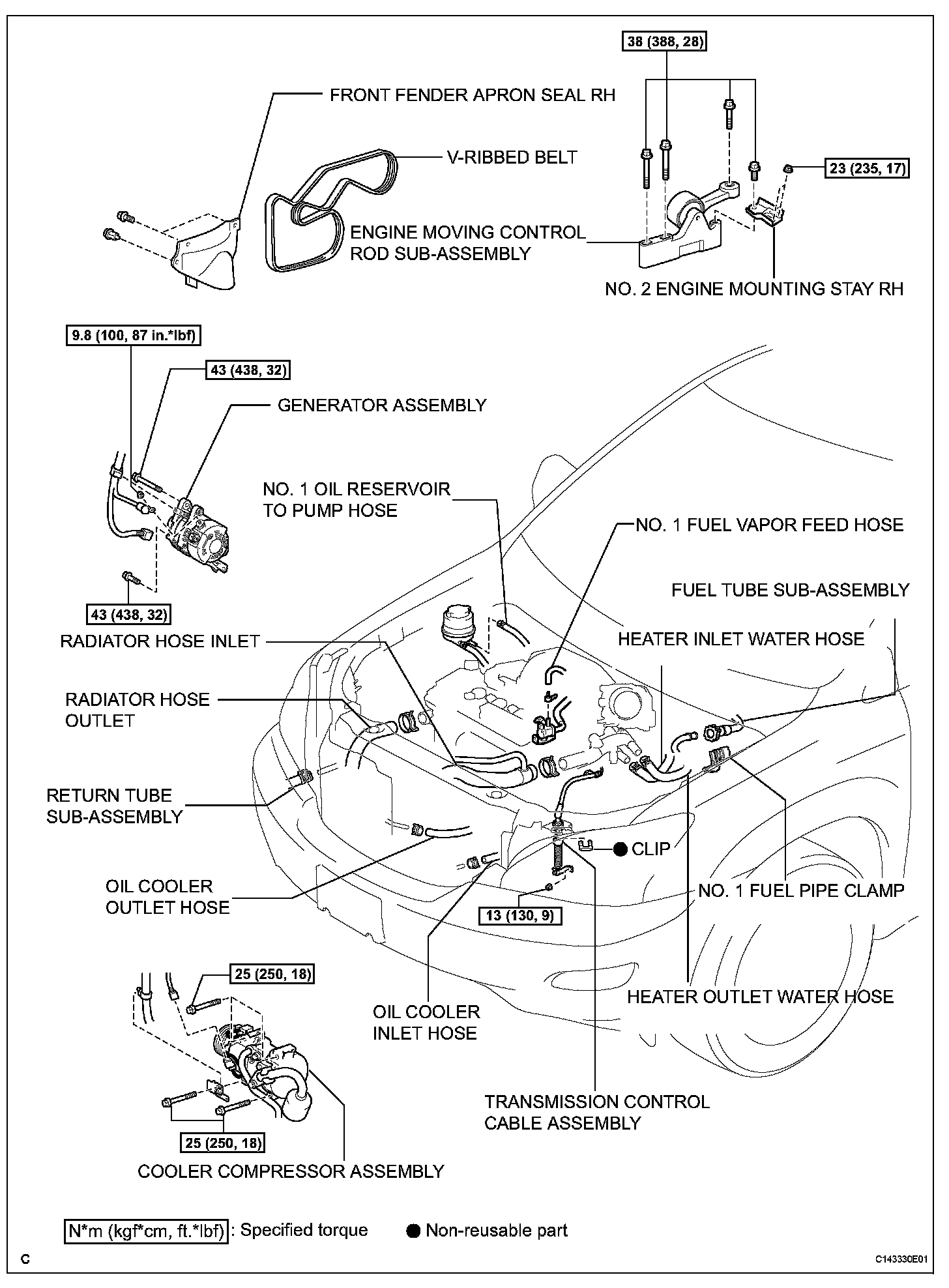

COMPONENTS (Part 5):

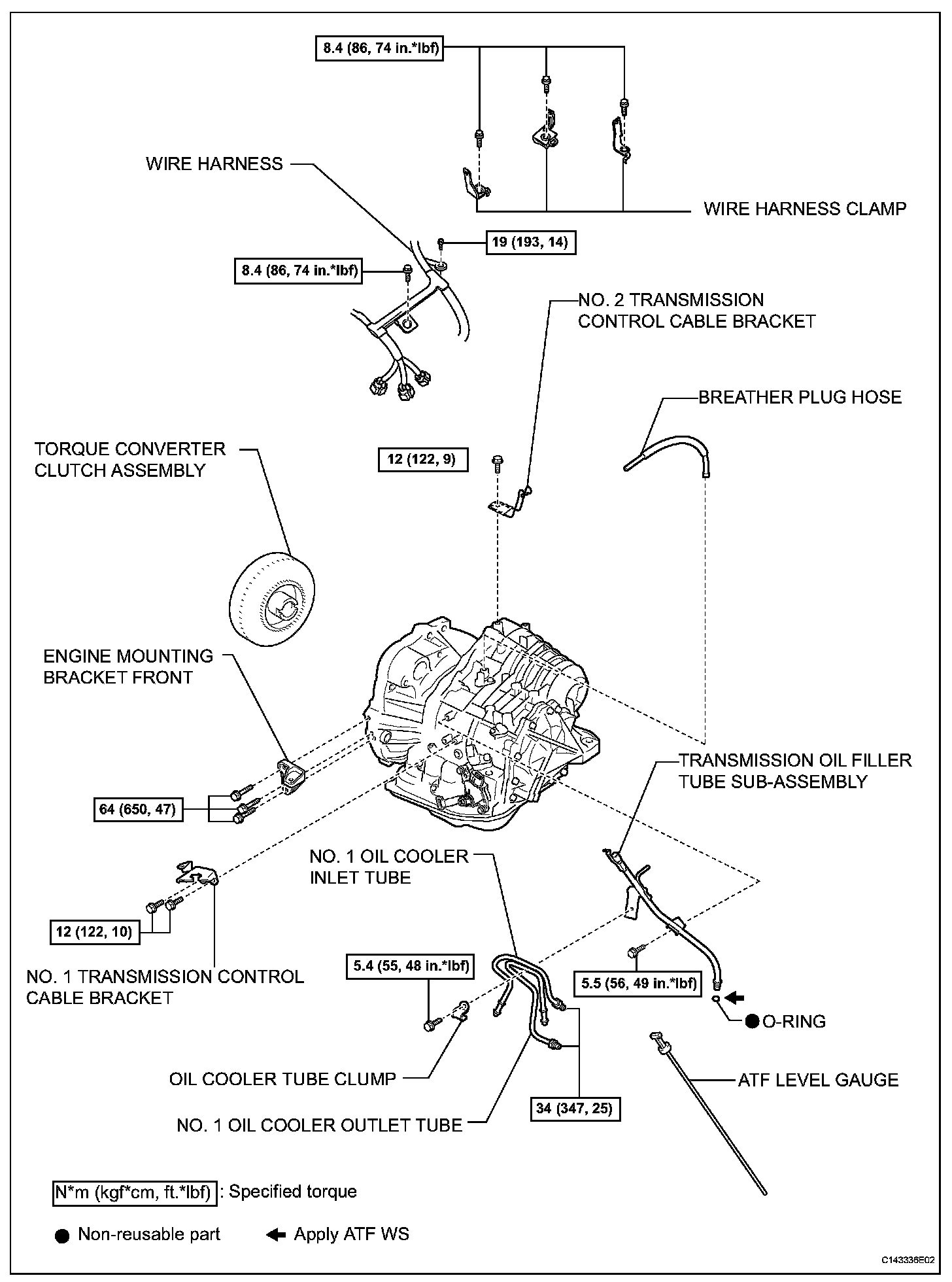

COMPONENTS (Part 6):

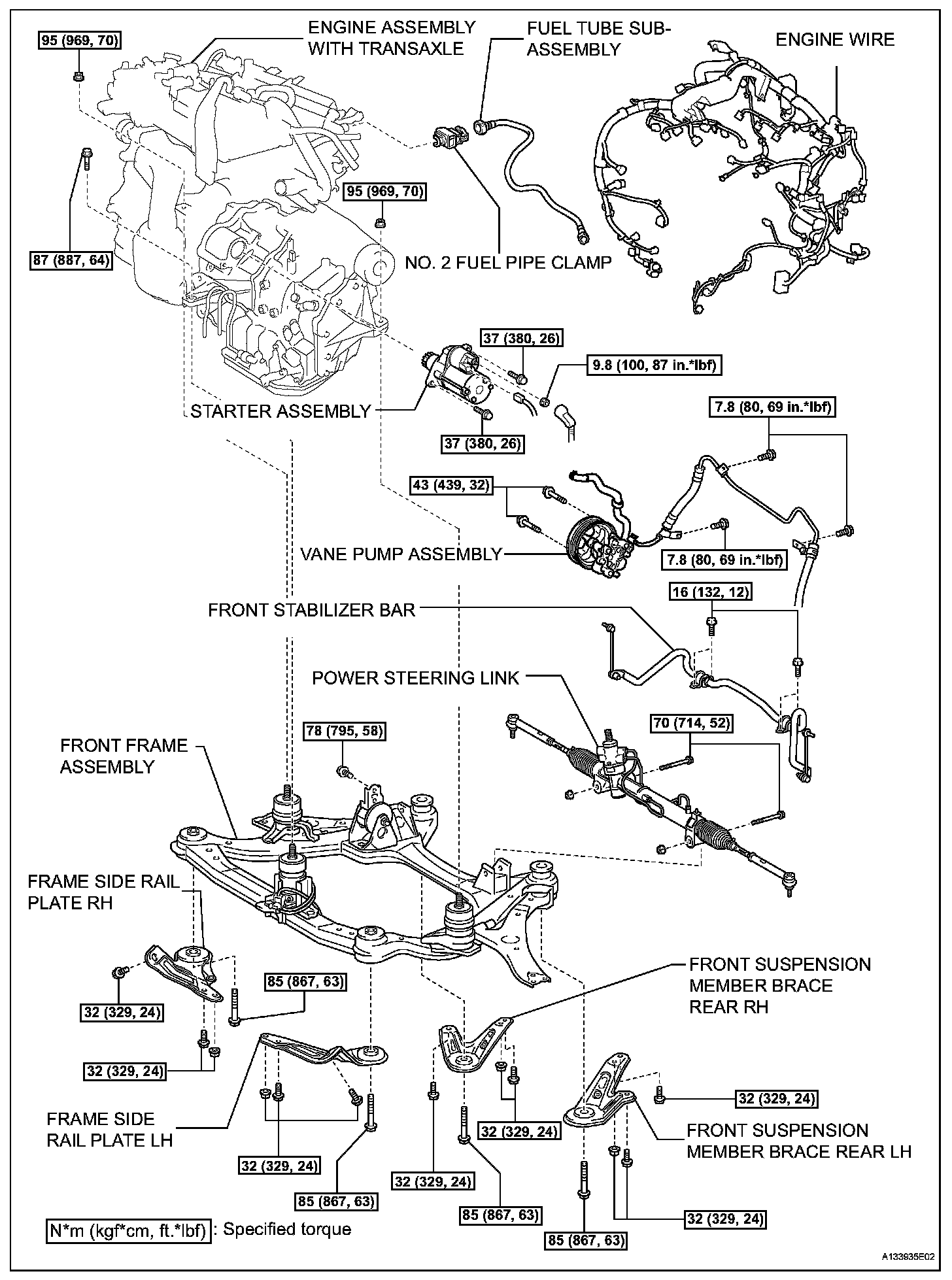

COMPONENTS (Part 7):

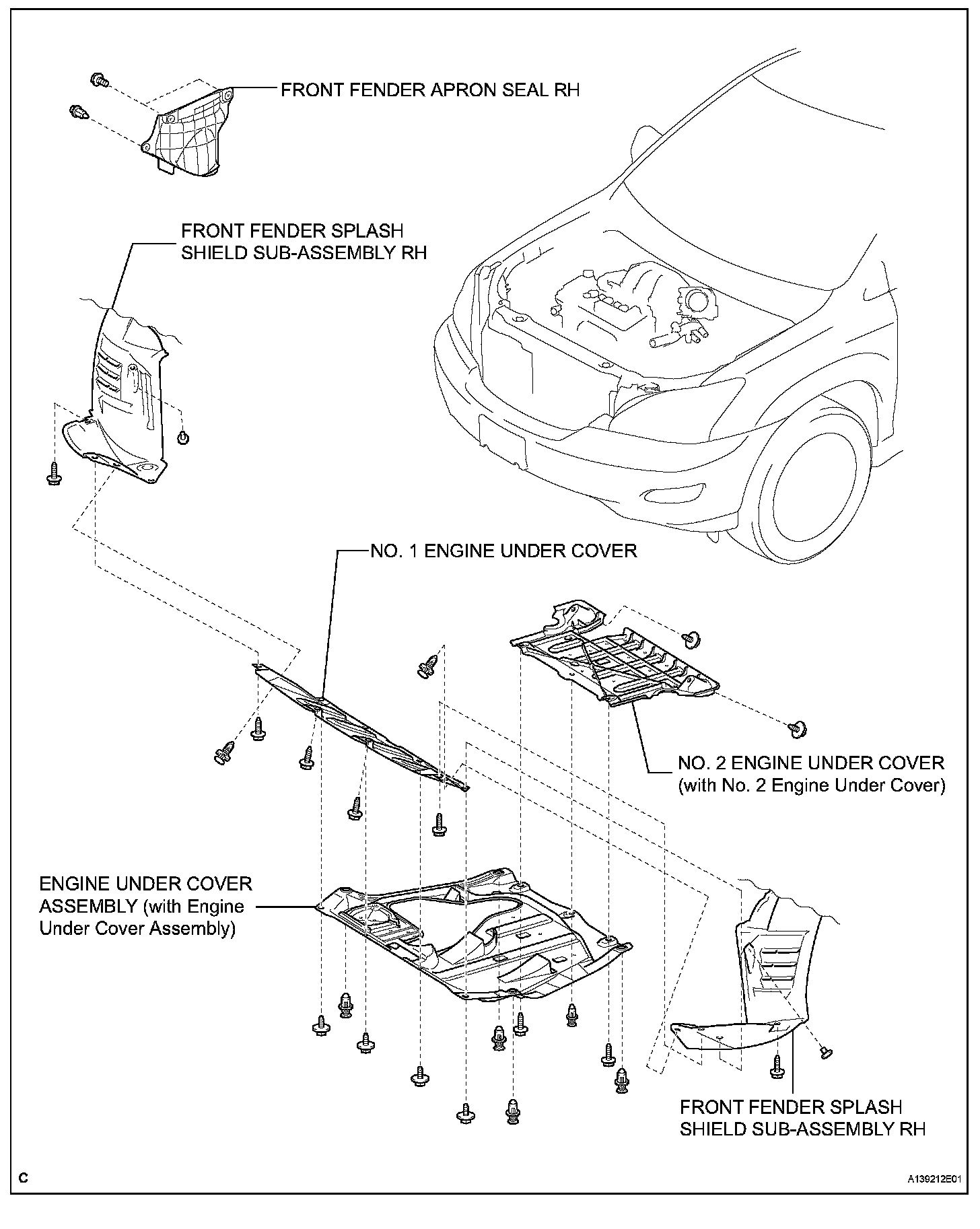

COMPONENTS (Part 8):
