Knock Sensor: Testing and Inspection
INSPECTION1. KNOCK CONTROL SENSOR

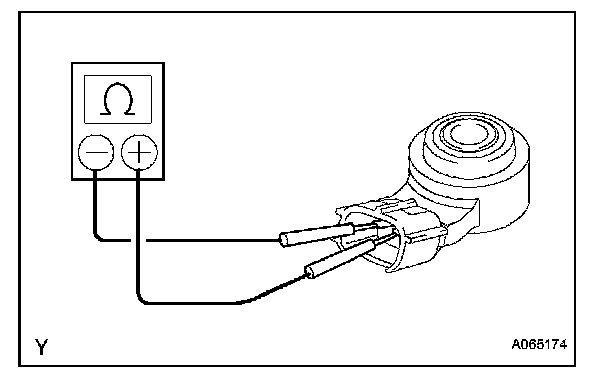

a. Using an ohmmeter, measure the resistance between the terminals.
Resistance: 120 to 280 kohms at 20 °C (68 °F)
If the resistance is not specified, replace the sensor.
1. KNOCK CONTROL SENSOR
a. Using an ohmmeter, measure the resistance between the terminals.
Resistance: 120 to 280 kohms at 20 °C (68 °F)
If the resistance is not specified, replace the sensor.
