Alignment

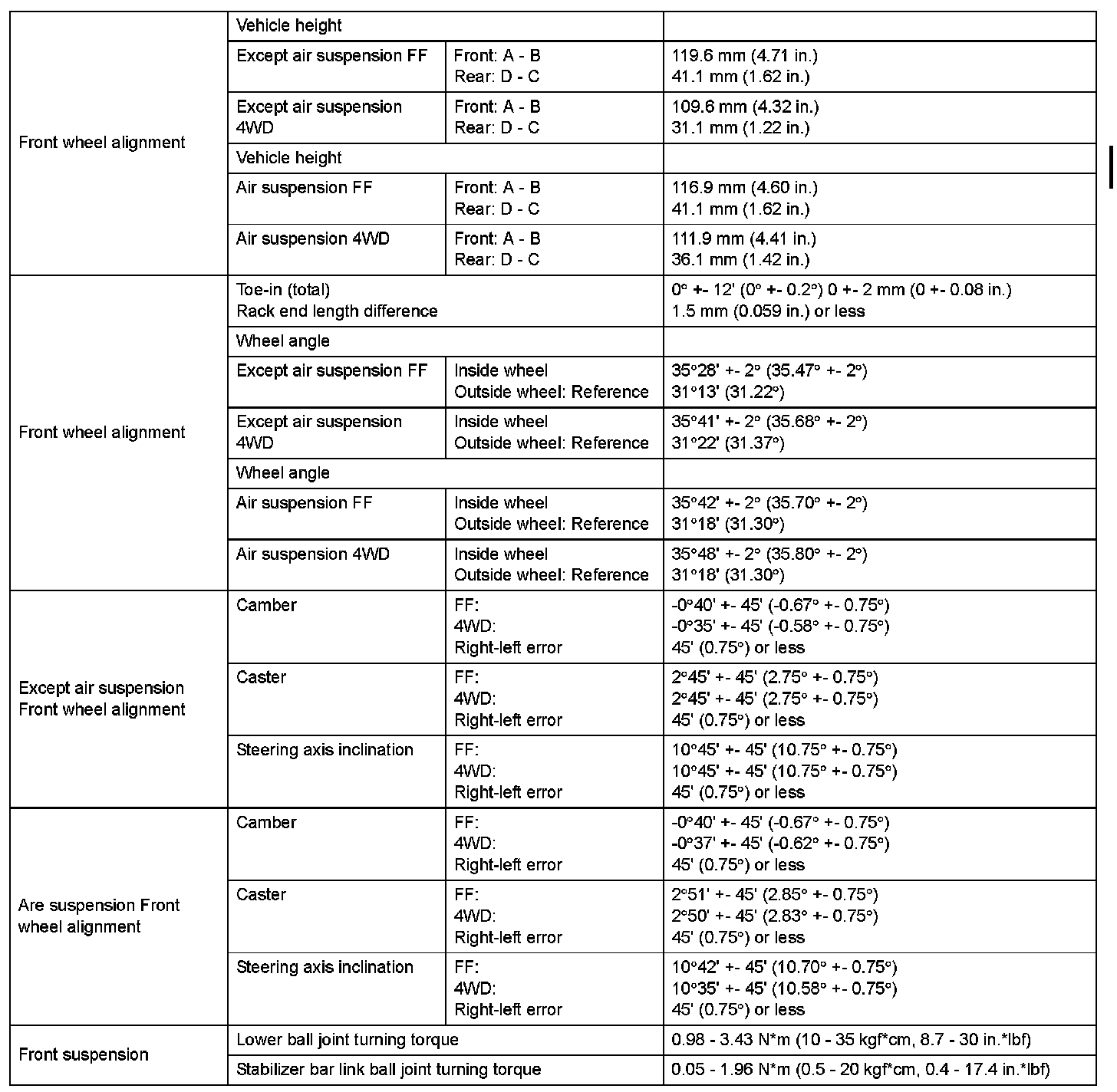

Front Suspension Service Data:

A: Ground clearance of front wheel center
B: Ground clearance of lower suspension arm No.2 bush set bolt center
C: Ground clearance of rear axle carrier bush set bolt center
D: Ground clearance of rear wheel center

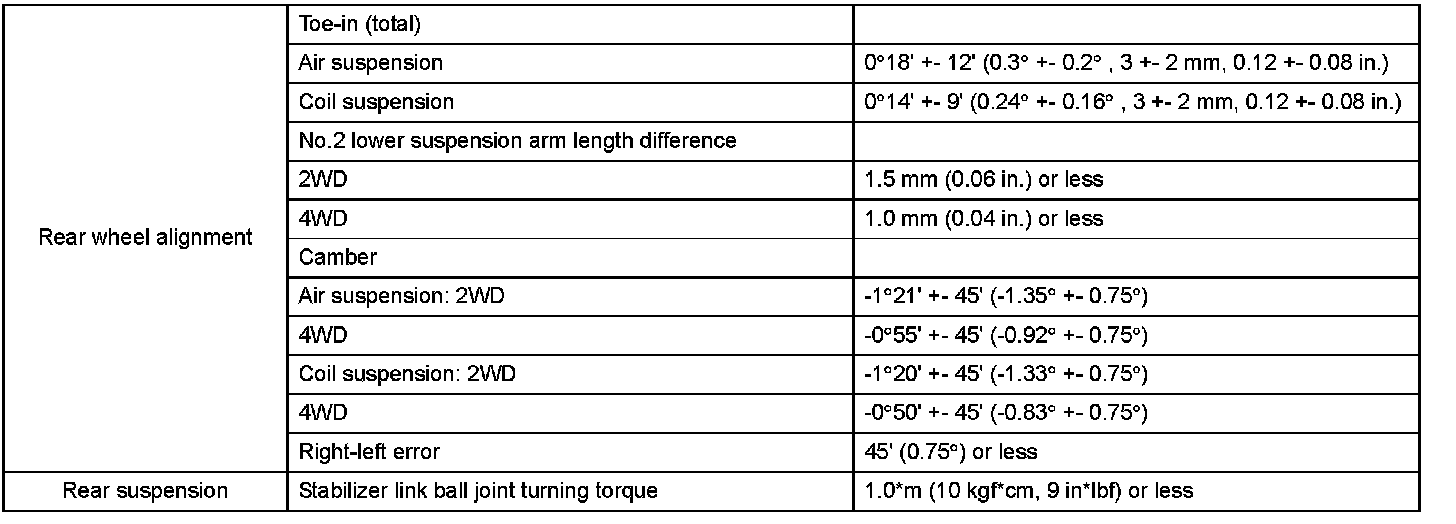

Rear Suspension Service Data:
