Intake Manifold

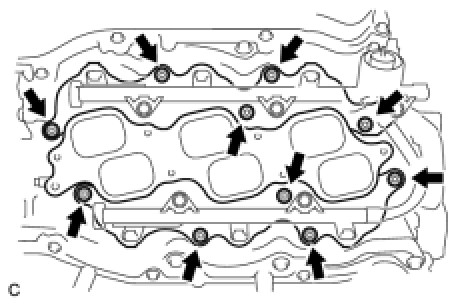

INTAKE MANIFOLD





Install and tighten the 6 bolts and 4 nuts uniformly in several steps.
Torque 21 Nm (214 kgf-cm, 15 ft-lbf)

Intake Air Surge Tank
Bolt torque 18 Nm (13 ft. lbs.)
Nut torque 16 Nm (12 ft. lbs.)


THROTTLE BODY
Torque 10 Nm (102 kgf-cm, 7 ft-lbf)
