Television Camera: Components

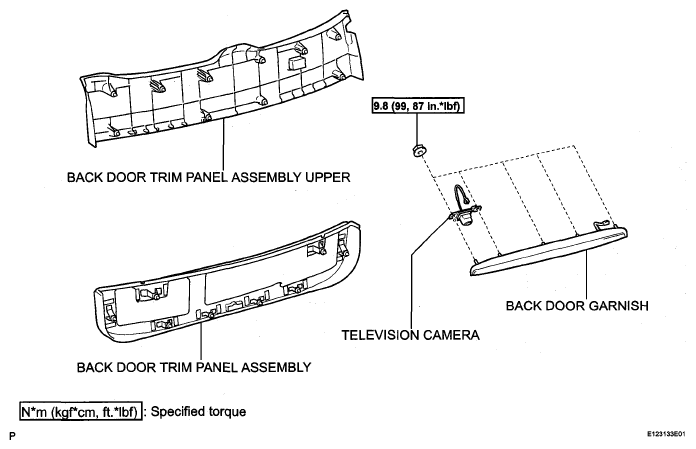

Fig 1: Identifying Television Camera Replacement Components With Torque Specifications
G05274179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
