Cigarette Lighter: Components

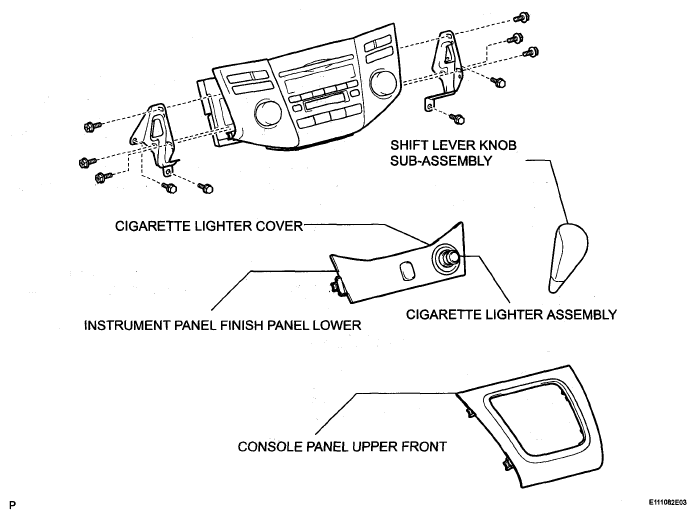

Fig 1: Identifying Cigarette Lighter Replacement Components
G05274210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
