Transmission Control Cable Assembly: Components

Fig 1: Transmission Control Cable Assembly Replacement Components With Torque Specifications (1 Of 4)
G05268771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Transmission Control Cable Assembly Replacement Components With Torque Specifications (2 Of 4)
G05268772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Transmission Wire Replacement Components With Torque Specifications (1 Of 2)
G05268718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

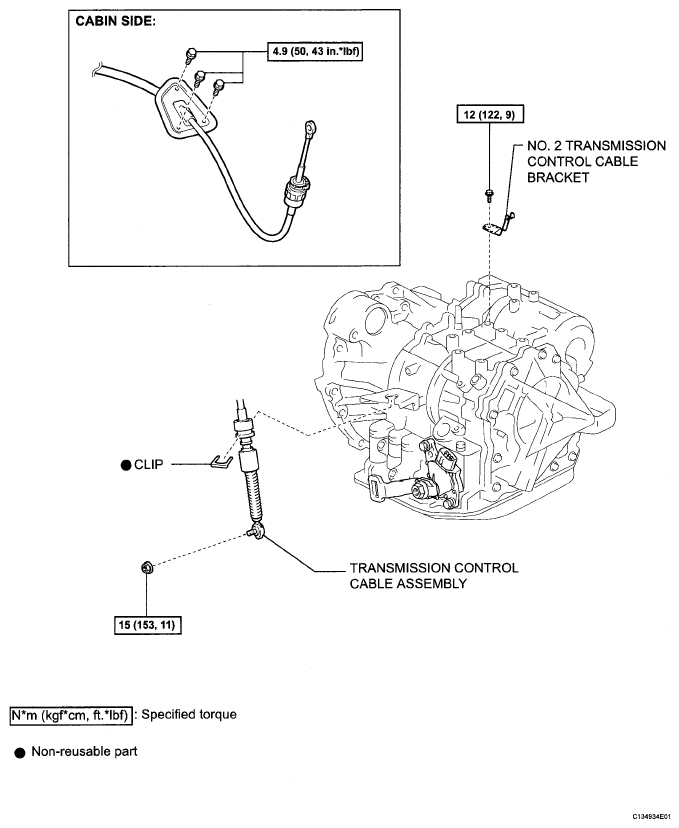

Fig 4: Transmission Control Cable Assembly Replacement Components With Torque Specifications (4 Of 4)
G05268774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
