Mirror Heater without Memory: Notes

Fig 1: Mirror Heater Without Memory - Wiring Diagram (1 Of 2)
G08922054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

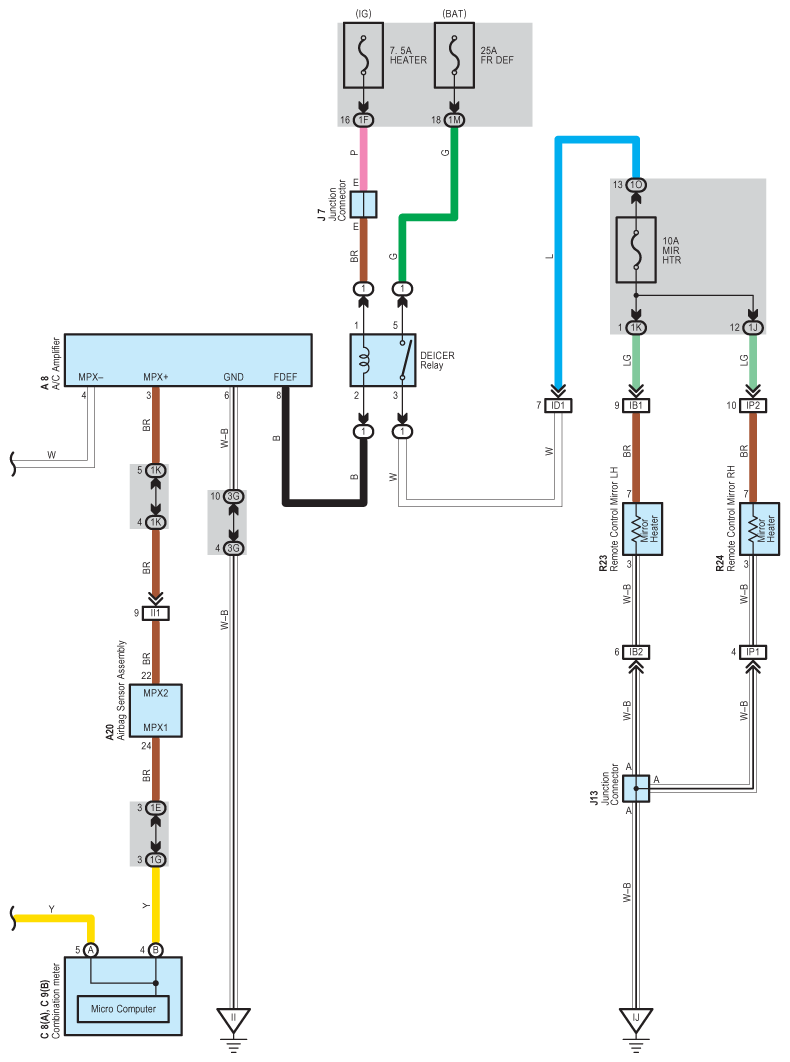

Fig 2: Mirror Heater Without Memory - Wiring Diagram (2 Of 2)
G08922055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
