Fuel Pump: Disassembly

REMOVE FUEL SENDER GAUGE ASSEMBLY
1. Disconnect the connector and remove the fuel sender gauge from the fuel suction tube.

  Fig 1: Identifying Fuel Sender Gauge & Fuel Suction Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL SUCTION PLATE SUB-ASSEMBLY
1. Using needle nozzle pliers, remove the E-ring.

  Fig 2: Identifying E-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 2 claws of the fuel No. 1 suction support and remove the fuel suction plate with the fuel filter from the fuel No. 1 sub-tank.

  Fig 3: Identifying Fuel Suction Plate With Fuel Filter & Fuel No. 1 Sub-Tank
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the spring from the fuel suction plate.
4. Disengage the claw of the jet pump nozzle.

  Fig 4: Identifying Jet Pump Nozzle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Separate the fuel pump filter hose.
DISCONNECT FUEL PUMP HARNESS
1. Disconnect the fuel pump harness connector.

  Fig 5: Identifying Fuel Pump Harness Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL PUMP
1. Using a screwdriver with its tip wrapped in protective tape, disengage the 5 claws on the filter and remove the fuel pump from the fuel filter.
  NOTE:
  - Do not damage the fuel filter.
  - Do not remove the suction filter.
  - Do not use either the fuel pump or the suction filter if the suction filter is removed from the fuel pump.
  Fig 6: Identifying Claws Of Fuel Pump
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

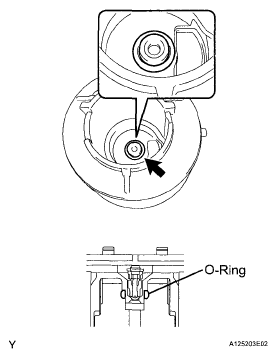

2. Remove the O-ring from the fuel filter.

  Fig 7: Identifying O-Ring & Fuel Filter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL PRESSURE REGULATOR ASSEMBLY
1. Remove the fuel pressure regulator from the fuel filter.

  Fig 8: Identifying Fuel Pressure Regulator & Fuel Filter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 O-rings from the fuel pressure regulator.

  Fig 9: Identifying O-Rings & Fuel Pressure Regulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL NO. 1 SUCTION SUPPORT

Fig 10: Identifying Fuel No. 1 Suction Support
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using a screwdriver with the tip taped, disengage the claw and remove the fuel No. 1 suction support.
