Transfer Assembly: Components

WARNING: This page is about a different variant/trim than selected.

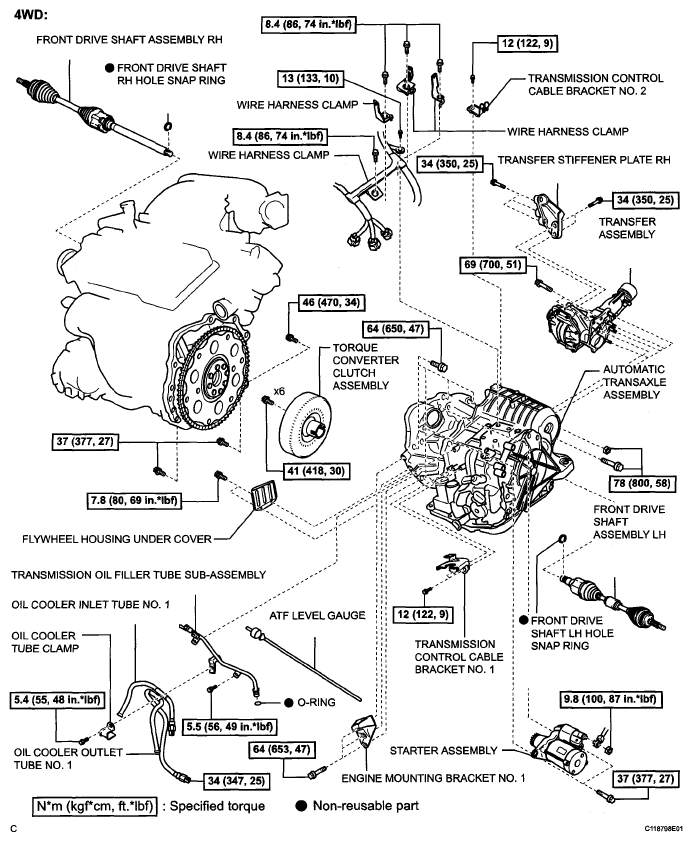

Fig 1: Identifying Transfer Assembly Replacement Components With Torque Specifications
G05241009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
