Transfer Unit: Components

WARNING: This page is about a different variant/trim than selected.

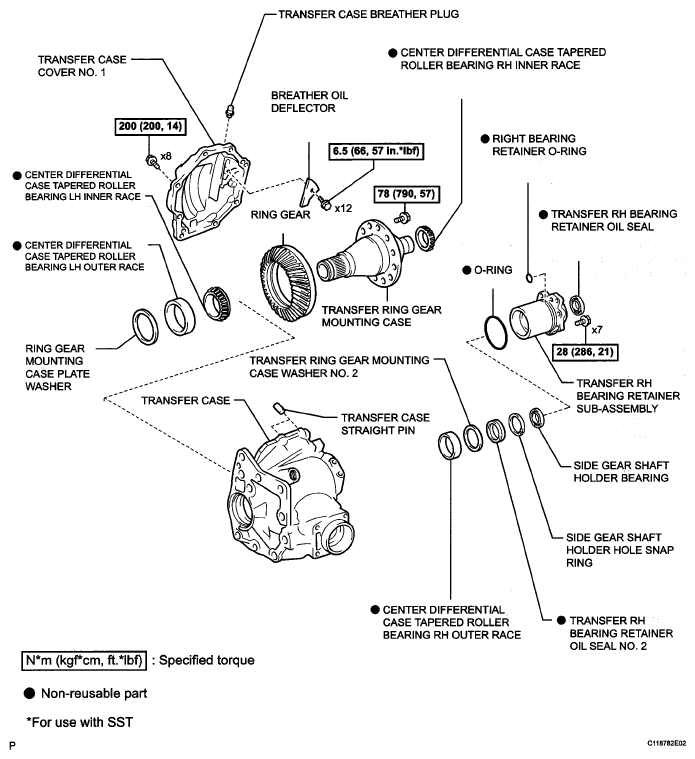

Fig 1: Identifying Transfer Unit Replacement Components With Torque Specifications (1 Of 2)
G05269319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

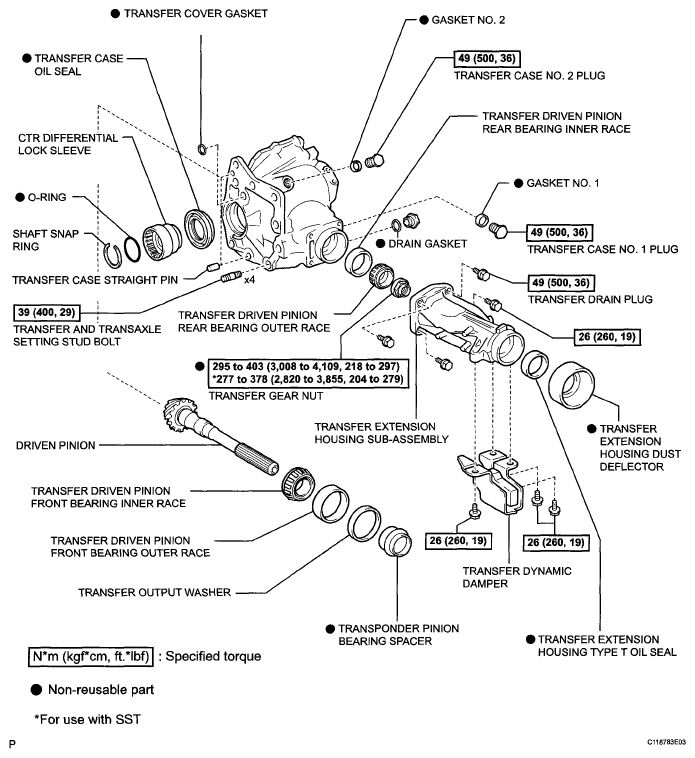

Fig 2: Identifying Transfer Unit Replacement Components With Torque Specifications (2 Of 2)
G05241018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
