Main Relay (Computer/Fuel System): Locations

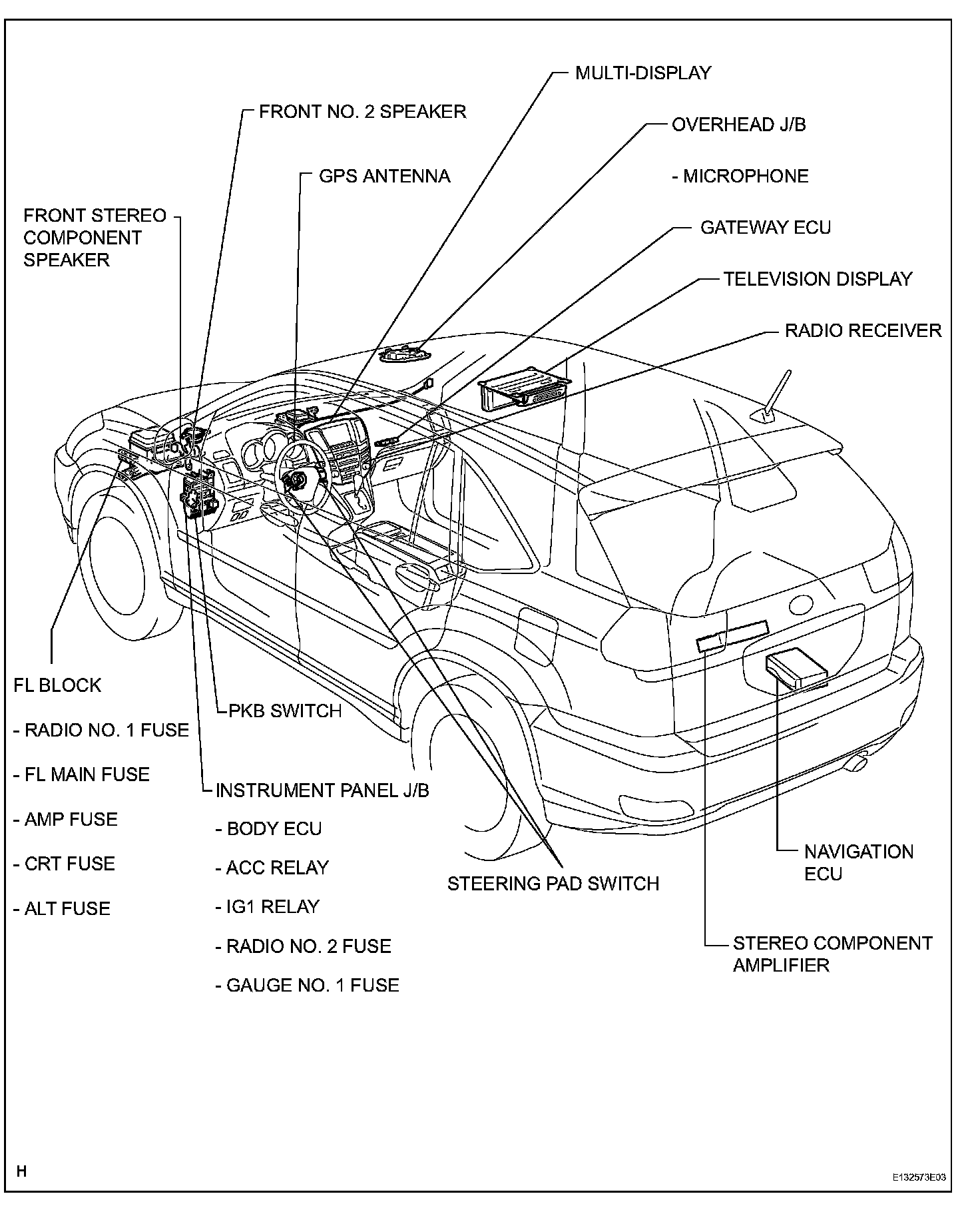

Navigation System:

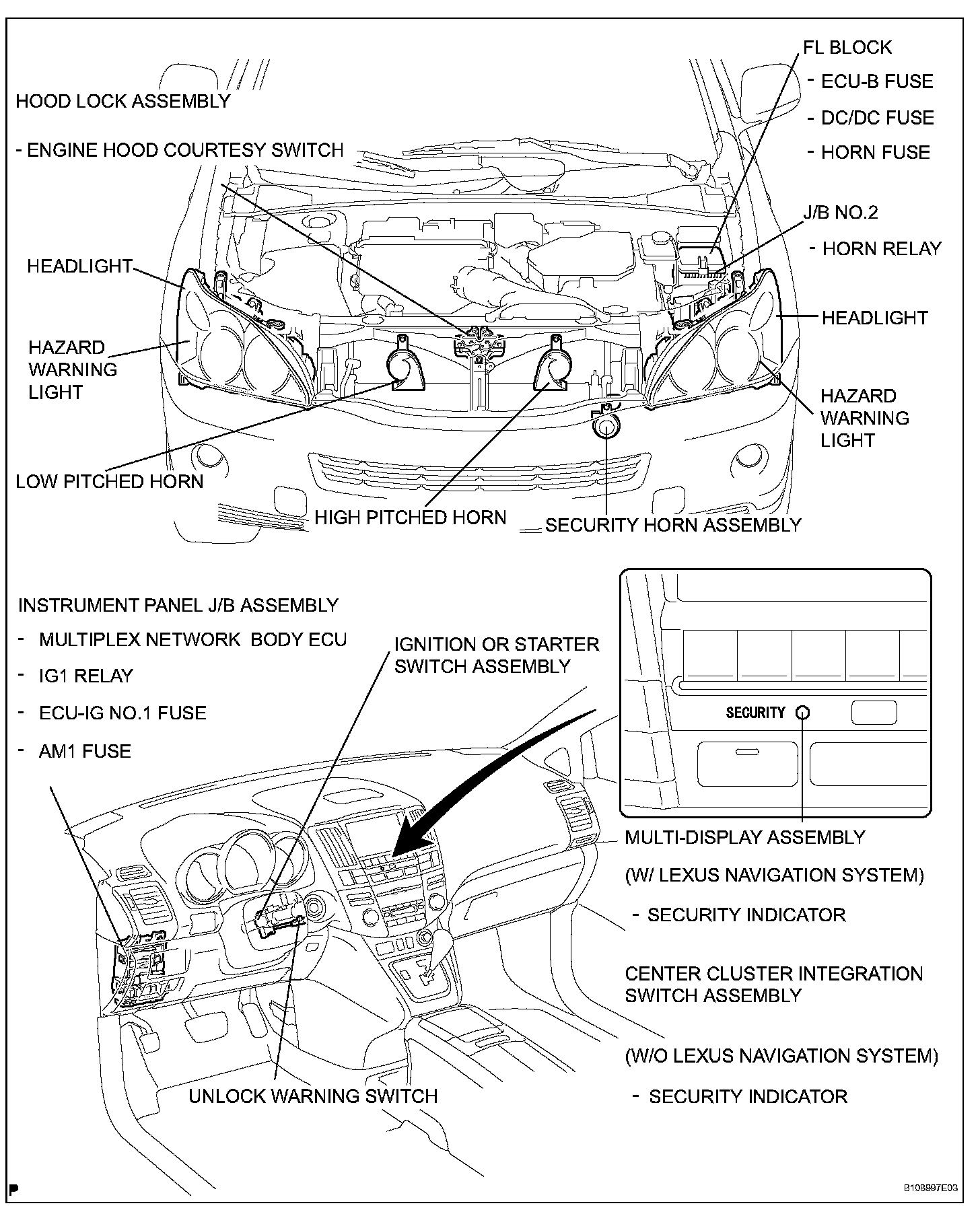

Theft Deterrent System:

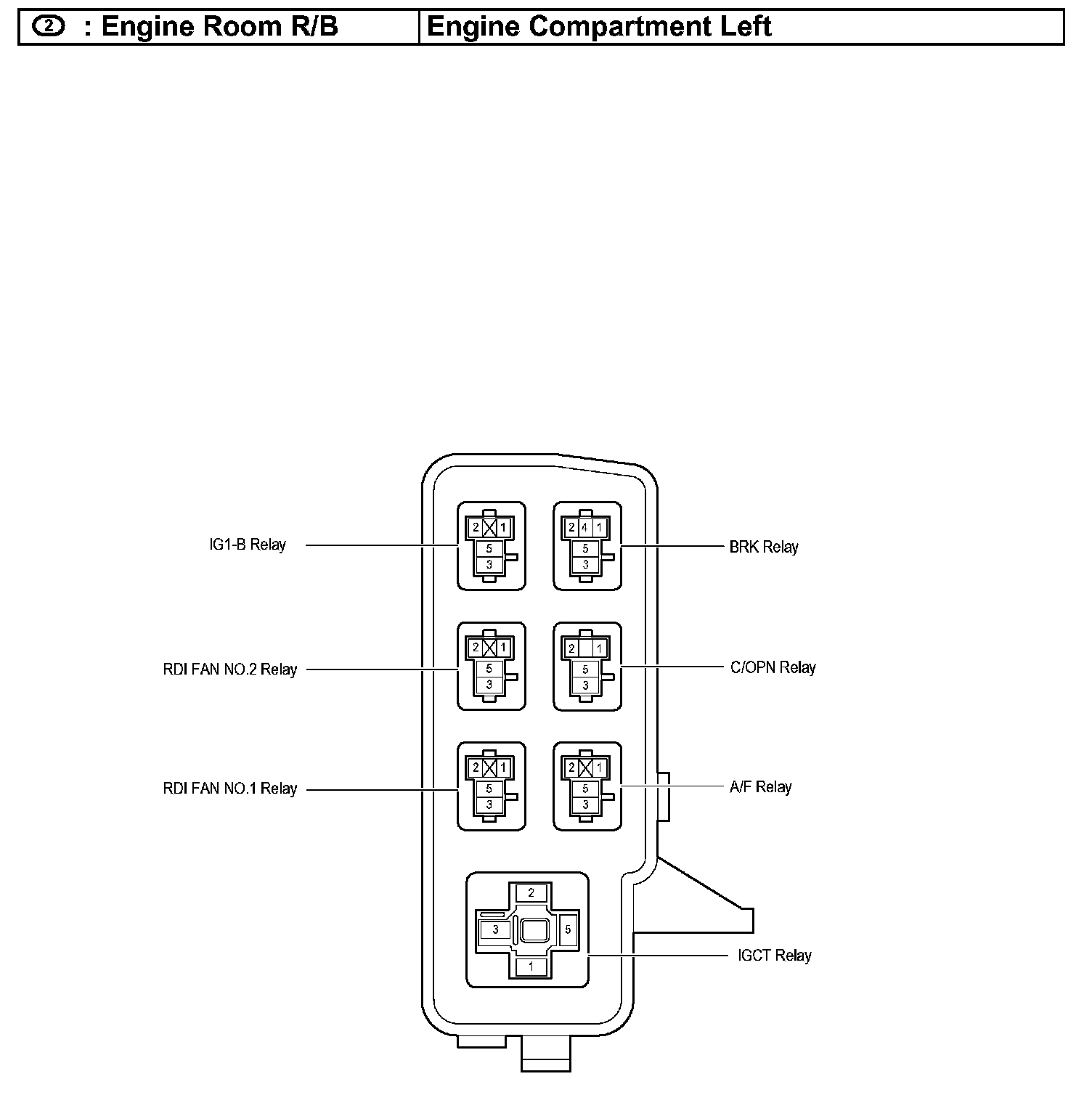

Engine Room R/B - Engine Compartment Left:

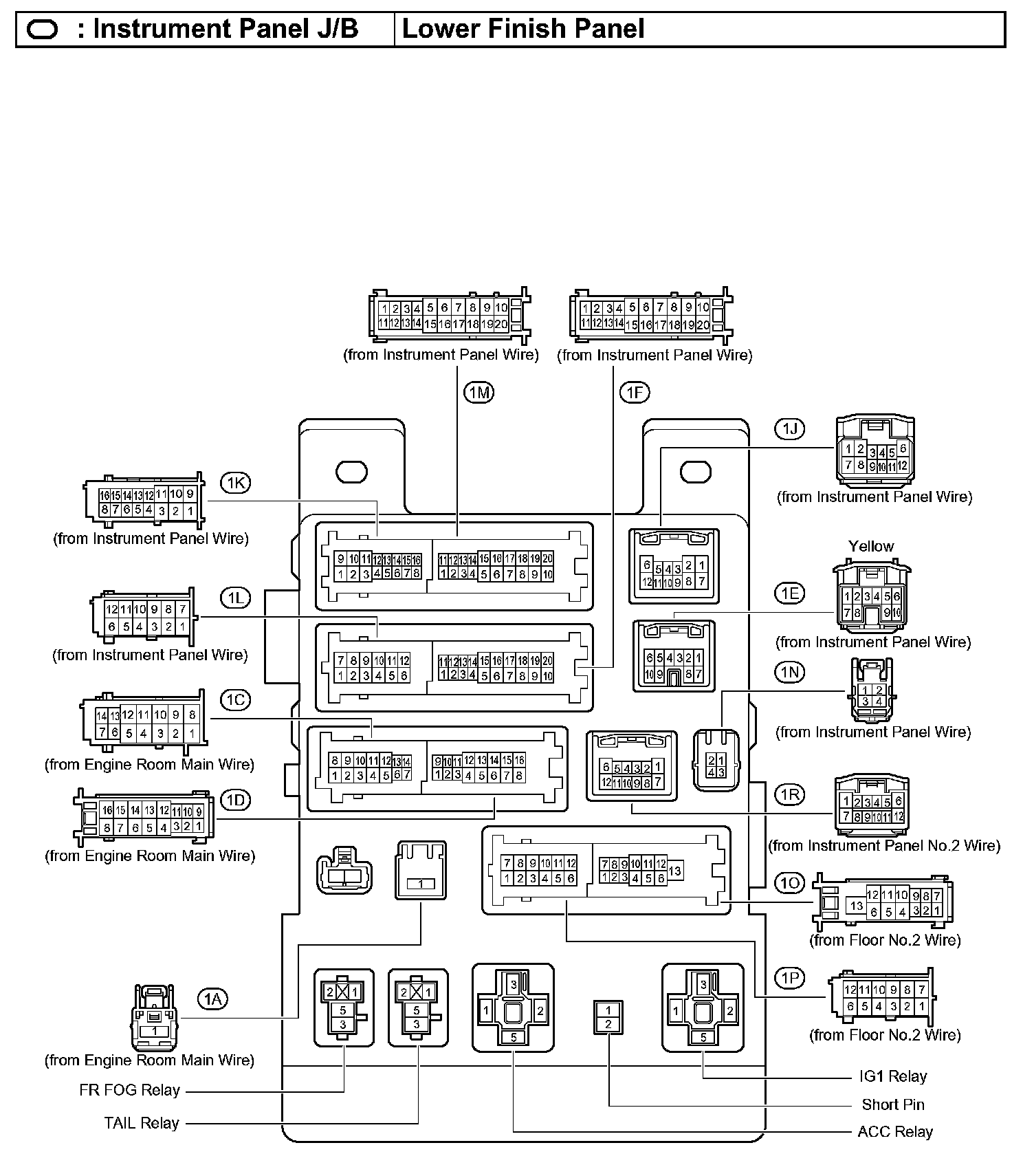

Instrument Panel J/B - Lower Finish Panel:
