Camshaft Timing Oil Control Valve Assembly: Removal

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE V-BANK COVER SUB-ASSEMBLY
    1. Remove the 2 nuts, 2 bolts and V-bank cover.
  3. REMOVE INTAKE AIR CONNECTOR PIPE
    1. Disconnect the 3 hoses.
    2. Remove the 2 bolts.
    3. Loosen the 2 clamp bolts and remove the intake air connector.
  4. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Bank 1)
    1. Disconnect the oil control valve connector.
    2. Remove the bolt and oil control valve.
    3. Remove the O-ring from the oil control valve.

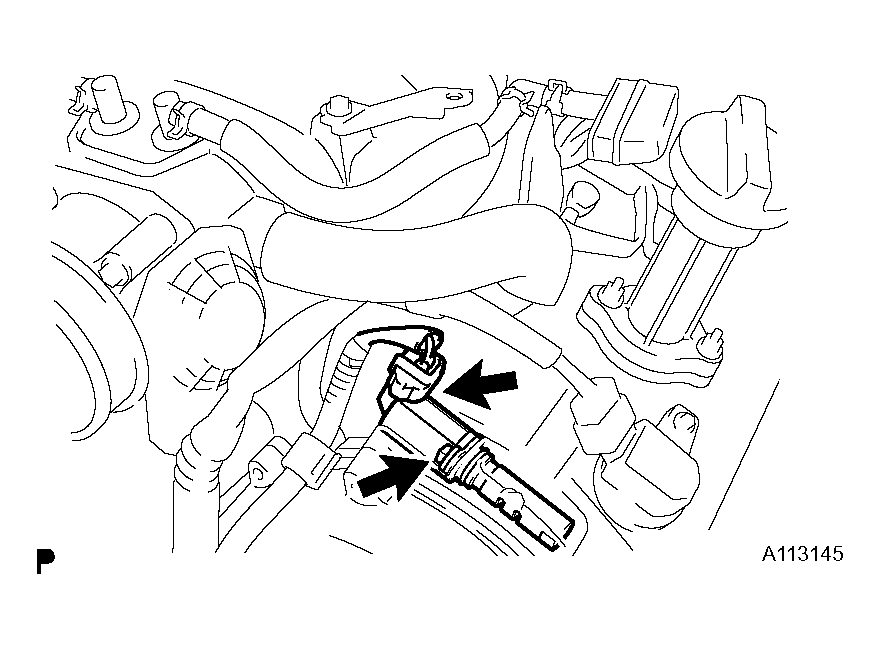

      Fig 1: Removing Oil Control Valve
      G04435516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Bank 2)
    1. Disconnect the oil control valve connector.
    2. Remove the bolt and oil control valve.
    3. Remove the O-ring from the oil control valve.

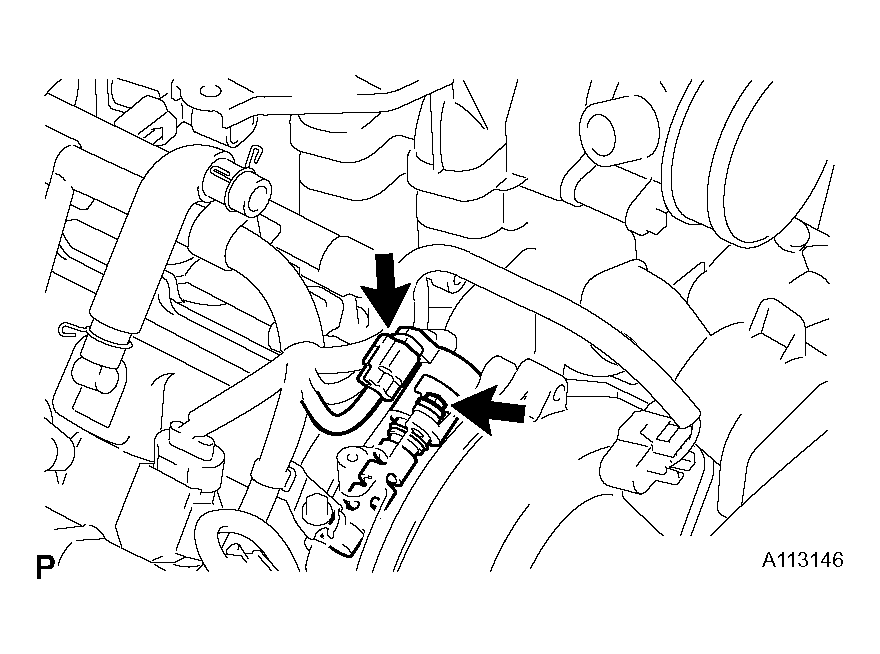

      Fig 2: Removing Camshaft Timing Oil Control Valve Assembly (For Bank 2)
      G04435517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
